Install Rack Mount Brackets - Biamp Qt X Installation Manual

Install Rack Mount Brackets

For Qt X 300/600 controllers start at step 1. If you are converting a Qt X 800
controller to a wall mounted unit with a 48V power supply, you will need to have
both the wall mount kit and the power supply kit. Start with Step 3.
1. If necessary, remove the existing wall bracket from the controller (Figure 1)
and reserve the M4 screws to attach the rack mount brackets.
2. Disconnect the power supply supporting bracket from the wall mount bracket
(Figure 2).

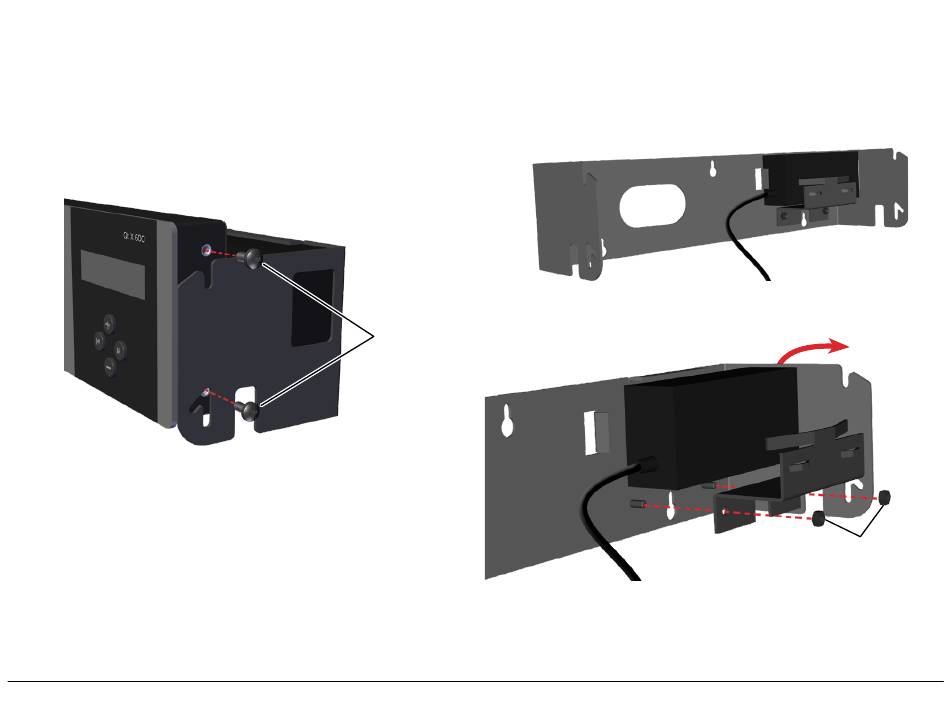

Figure 1. Remove screws and panel from wall mount bracket
page 2
M4 Screws
Accessory Installation Guide
Figure 2. Remove bracket and power supply
M4 Hex Nuts
Qt X Controller
