- Page 1 Tesira Ethernet Controller (TEC-1) OPERATION MANUAL April 2019...

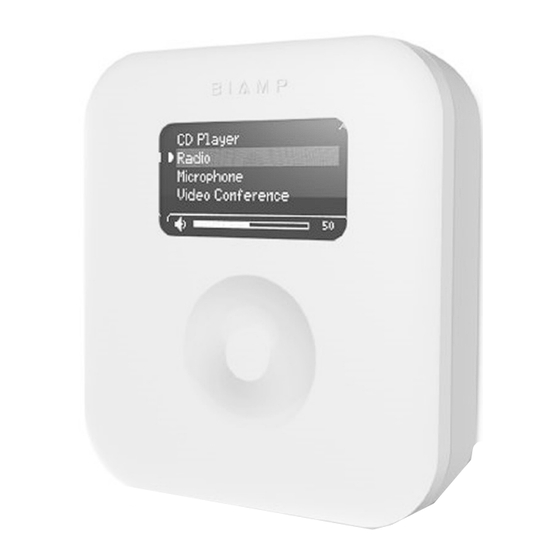

- Page 2 TEC-1 PRODUCT DESCRIPTION TEC-1s and TEC-1i are remote controls for Tesira® and TesiraFORTÉ systems. They offer a simple, intuitive interface and can be installed and configured to fit the unique needs of a particular application. The TEC-1 device connects via standard CAT-5/6/7 cabling and is powered over Ethernet, eliminating the need for custom cabling and local power sources.
- Page 3 TEC-1 FRONT PANEL TEC-1i TEC-1s Setup and Use The Tesira software provides an intuitive interface for setup and programming of the TEC-1. The information supplied by this manual relates to physical connections and device setup. For more details on software setup, please consult the Tesira Help File.
- Page 4 TEC-1 REAR PANEL Connectors Two Ethernet connectors—one rear-facing RJ45 and one top-facing insulation displacement connector (IDC)—are provided for connecting to the network. Only one connector may be used. The RJ45 and IDC utilize unshielded twisted pair (UTP) wiring to connect to a Tesira system. This connection is made to the Ethernet port of a Tesira unit, either directly (single station) or via a network switch, and carries control data over Ethernet.
- Page 5 TEC-1 SETUP Device Setup Mode The TEC-1 can be configured without connecting to a functional Tesira network. To enter setup mode, connect the TEC-1 to a PoE source and place the jumper or any metal object across the locksmith pins. When configuration is complete, remove the jumper and attach it to only one pin to resume normal operation.
- Page 6 TEC-1 SETUP Edit Device ID To name the unit, scroll to the ID Tag icon and press the Select button. Use the scroll wheel and Select button to select the desired characters. Scroll to the icon and select it to delete the previous character. The default Device ID is “TEC- 1ID 01”.
- Page 7 TEC-1 SETUP Edit Unlock Code To set password protection, scroll to the Key icon and press the Select button. Use the scroll wheel and Select button to choose the desired characters. During normal operation, holding down the Select button for five seconds will lock the unit, and the user will be prompted for the Lock Code before obtaining access.
- Page 8 TEC-1 SETUP View Device Information To view information regarding the specific unit, scroll to the Information icon and press the Select button. The Serial Number, MAC Address, Firmware Version, Hostname, IP Address, network mask, and gateway are displayed. This is non-editable information.
- Page 9 TEC-1i INSTALLATION Flush Mount Installation The TEC-1i may be flush mounted using the retrofit plate (provided with the product) or a Raco® 254 box (purchased from an electrical distributor). To install the TEC-1i, a hole must be cut in the wall to accommodate the Raco 254 box or to use the retrofit plate.
- Page 10 TEC-1i INSTALLATION Exploded view showing pieces required for mounting to the retrofit plate or the Raco 254 box When installing the TEC-1i using the retrofit plate or the back-box, fasten the trim ring using the four screws provided to either the retrofit plate or the back-box. Once the trim ring has been fastened to the retrofit plate or the back-box, guide the TEC-1i front plate at an angle into the top of the trim ring to seat the tabs on the top of the front plate.
- Page 11 Software support in Tesira configuration software Version 1.1 or later provides user programming of all remote functions, network setup, device naming, and device maintenance. Visit www.biamp.com to obtain firmware and software updates related to this product. To speak with an Applications Engineer, please call 1.503.641.7287 or email support@biamp.com.
