Biamp Qt X Installation Manual page 3

Install Rack Mount Brackets (continued)
3. Attach the power supply bracket to the longer (R) rack ear with hex nuts and
insert the power supply with power cord outlet located to the back (Figure 3).
4. Attach the rack ears to the Qt X controller with the M4 screws removed in the
first step. Mount the longer bracket with the power supply to the right side on
the controller (Figure 4). The brackets and controller are marked with R/L.
Match the bracket to the appropriate side of the controller.

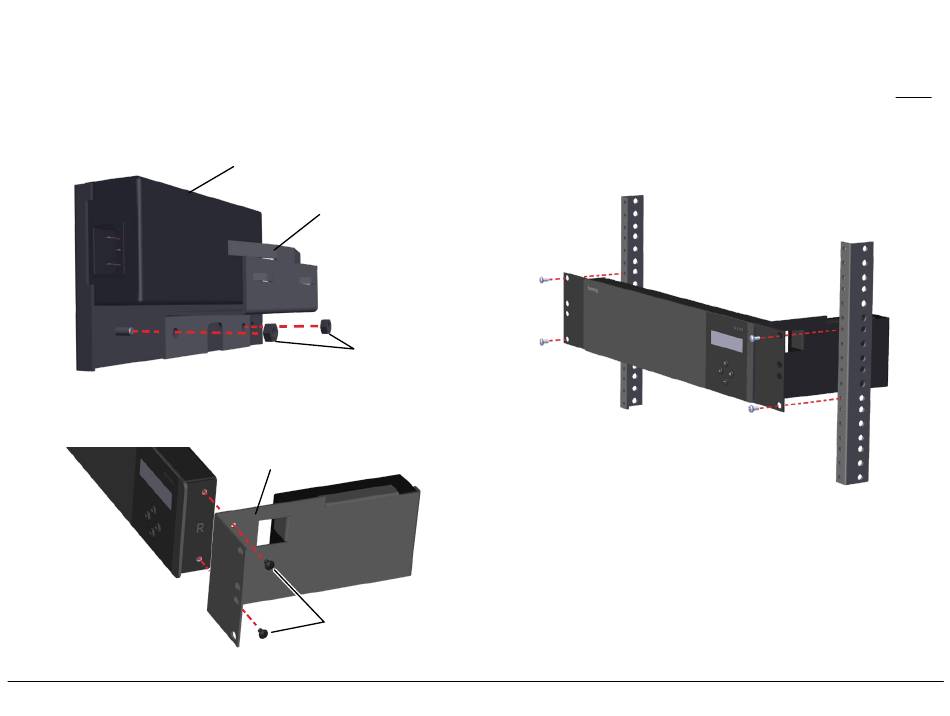

Figure 3. Reinstall bracket and power supply on long rack ear
Figure 4. Attach rack ears to the controller
Qt X Controller
Power Supply
Power Supply
Bracket
M4 Hex Nuts
Long rack ear with power supply
M4 screws
Accessory Installation Guide
5. Secure the Qt X controller to the rack via the rack ears as shown (Figure 5).
Hardware to attach the unit to the rack is not included. Plug power cord into
the rear of the power supply.
NOTE: It may be easier to make all of the connections to the back panel before
securing the controller to the rack. The controller will not rotate forward to allow
access to the back panel when secured to the rack ears.
TIP: Use cable ties to constrain extra cable lengths for a neat appearance and to
reduce tangles.
Figure 5. Attach controller assembly to the
rack (hardware not provided)
page 3
