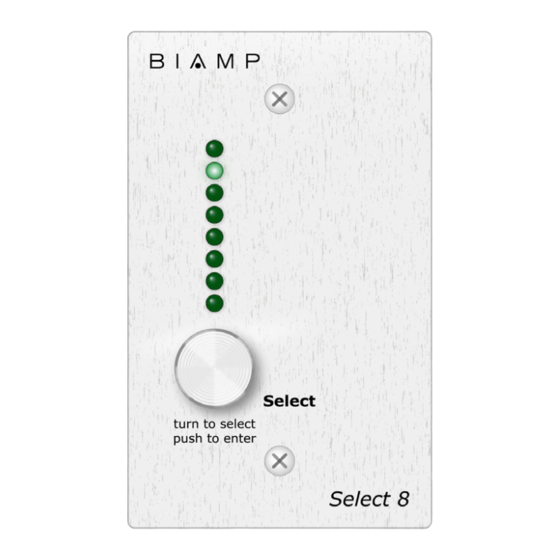

- Page 1 Volume 8, Select 8, Volume / Select 8, Logic Box, & Voltage Control Box Installation Guide 14Aug06 Biamp Systems, 10074 S.W. Arctic Drive, Beaverton, Oregon 97005 U.S.A. (503) 641-7287 http://www.biamp.com an affiliate of Rauland Borg Corp.
- Page 2 ® ® Volume 8, Select 8, Volume/Select 8, Logic Box, & Voltage Control Box are natural extensions of Audia and Nexia products. These controls provide an intuitive interface for end-users, and can be installed and configured to fit the unique needs of a particular application. Any combination of these controls can be connected on a 5-wire daisy-chain, eliminating the need for local power sources.
- Page 3 Logic Input Switch Wiring Potentiometer Wiring (Logic Box & Voltage Control Box) (Voltage Control Box) high (cw) Logic 5~50kΩ wiper switch linear (1~4) taper ground ( ) low (ccw) ground ( )
- Page 4 In the Word document, select Show Gridlines from the Table menu. Each large cell represents a label. The first four columns are 'left-justified' to create labels for Volume 8 and Select 8 panels, as well as for the 'Volume' (left) section of Volume/Select 8 panels. The last column is 'right-justified' to create labels for the 'Select' (right) section of Volume/Select 8 panels.
