Biamp Impera Tango Installation And Setup Manual

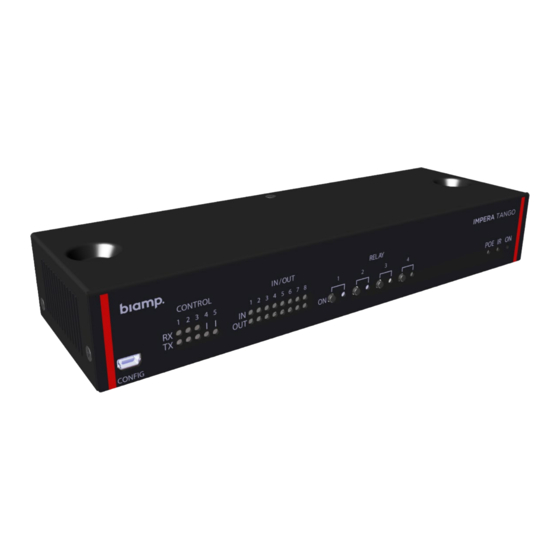

Touch panel controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Impera
Installation and Setup Guide
INSTALLATION CONSIDERATIONS
The Tango controls room AV systems using connected Biamp touch panel displays and
•
keypads as the user interface devices.
The controller can be mounted freestanding on desktops, secured to a flat surface such as
•
a table bottom, or in a 19-inch AV equipment rack using a Biamp rack shelf.
PoE powered: Use a compliant PoE power supply or switch. PoE injector not included.
•
• An infrared learner sensor is located on the front panel (IR).
• The controller and AV system devices are configured using Biamp's Project Designer utility
software.
INCLUDED IN THE BOX
• Tango touch pad controller
• 11 Terminal connectors
• 2 wall-mount screws and 2 drywall anchors O4x60 mm
• 2 rack-shelf mounting screws M4x35 mm
• 4 Adhesive feet
support@biamp.com
Tango
Touch panel controller
www.biamp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Impera Tango and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Biamp Impera Tango

Summary of Contents for Biamp Impera Tango

  • Page 1 The controller can be mounted freestanding on desktops, secured to a flat surface such as • a table bottom, or in a 19-inch AV equipment rack using a Biamp rack shelf. PoE powered: Use a compliant PoE power supply or switch. PoE injector not included.

  • Page 2: Device Layout

    3. General purpose input / output indicators 7. Power on status and error indicator 4. Paired relay test buttons and indicators Configuration USB Port The mini-B USB port is used to upload configuration files to the Tango controller. CONFIG Impera Tango Installation and Setup Guide...
  • Page 3 • Continually on – A compatible PoE device is connected to the PoE output. • Flashing slow – No PoE enabled device connected. • Flashing fast – Error or overload on a connected PoE device Impera Tango Installation and Setup Guide...

  • Page 4: Rear Panel Layout

    IR Learner Function Sensor Lens (IR) The IR Learner sensor captures infrared control codes from remote control devices while using Biamp’s Device Editor utility. • Captures sequences in the 20 to 60 kHz range. Note: The IR Learner feature will be added in a future update.
  • Page 5 • Connect the AV system devices to the controller, page 8 o Do not connect to a PoE source at this time • Connect a compliant PoE source to the PoE IN port, page 12 Continued on next page Impera Tango Installation and Setup Guide...
  • Page 6  Configure the system and devices, page 16  (Optional) download Biamp’s Device Editor utility, page 18 • This software is required to use the Tango’s IR learner function for incorporating remote control devices with infrared transmitters.

  • Page 7: Installation

    Use the included anchors for mounting on a drywall surface. Standard 19-inch Rack (480 mm) The controller can be mounted in a 19-inch standard AV equipment rack using the included MA4x35mm screws and a Biamp rack shelf PN – 910.0116.900 RMS-1. Impera Tango Installation and Setup Guide...
  • Page 8 • See page 12 for connecting the PoE source or injector to the PoE IN port after the current procedure is complete. RS-232 and IR Connections Using Biamp Project Designer software the T and R terminals may be configured as an RS-232 terminal, or the T terminal may be configured as an IR emitter.
  • Page 9 • Connect the IR-1 emitter to T1 with the white-striped wire • Connect the black wire on the IR-1 emitter to the IR-2 emitter • Connect the black wire from the IR- 2 emitter to paired ground (G) Impera Tango Installation and Setup Guide...
  • Page 10 • The inputs are default HIGH and must be connected to a ground to change state. Biamp Extension Bus The NEB extension bus supports up to 5 Biamp extension bus devices such as keypads, level controls, and expanders. The Biamp extension bus port includes an extender allowing up to 131 feet (40m) of separation between the controller and devices connected using the Biamp extender module.
  • Page 11 Link Activity Green 10 Mbit 100 Mbit PoE Out Port • This port provides power over Ethernet from the Tango controller to a connected PoE-enabled device. • The connected device must conform to IEEE802.3af Impera Tango Installation and Setup Guide...
  • Page 12 • Connect to a PoE Injector. o The injector must be connected to the PoE IN port in order to enable LAN functionality. • Connect to a PoE-enabled switch compliant with IEEE2.3af Continued on next page Impera Tango Installation and Setup Guide...
  • Page 13 PoE IN connection continued PoE injector example PoE-enabled switch example Continued on next page Impera Tango Installation and Setup Guide...
  • Page 14 Test the functionality of any devices connected to the relay terminals using the corresponding test buttons on the controller front panel. When the test button is pressed, the LEDs will indicate if the relay is activated (green) or not activated (off) Impera Tango Installation and Setup Guide...

  • Page 15: Controller Setup

    Biamp Control - Biamp Cornerstone Training An online course covering Optimized Control Design for Impera systems can be registered for on Biamp’s training website. This includes how to configure the Impera Tango using Biamp Project Designer software. • Click here: Biamp Training - InPerson and Online Training, Certification Courses o Look under the “Impera Learning Path”...

  • Page 16: Configure The System

    Configure the System Use the Biamp Project Designer software to configure the controller and the AV system it will control. 1. Configure the controller • Configure and assign functions to the RS232 / IR and GPIO ports if required. • Assign any functions required for the expansion bus.
  • Page 17 Uploads can also be safely performed using this port while the controller is connected to a LAN ethernet cable that is supplying power. • A LAN connection over the PoE IN port Impera Tango Installation and Setup Guide...
  • Page 18 1. Products: Impera 2. Resource Type: Software/Firmware a. Uncheck the default Datasheets option Support Articles Technical support articles for Device Editor can be found on Biamp’s Cornerstone knowledgebase support site. • Click Here: Getting started with Biamp Device Editor - Biamp Cornerstone...

  • Page 19: Restoring To Factory Settings

    Continue holding the relay buttons until all IN/OUT LED indicators begin flashing. 3. After the reboot completes, LED indicators 1 and 2 will continue flashing. The unit has been reset to its factory settings. Impera Tango Installation and Setup Guide...
  • Page 20 The front-panel IN/OUT LED indicators display error codes in the event of an error. LED Pattern Error No connection to one or more of the Biamp Expansion Bus ports that have an assigned use in the Project Designer configuration file. Solutions •...
  • Page 21 LED Pattern Error An unknown error has occurred. Solutions • Power cycle: Turn off power to the controller for a minimum of 20 seconds. Then repower the controller. Impera Tango Installation and Setup Guide...
  • Page 22 No contact with the Biamp extension unit. Solutions • Verify the extension serial number entered in the Project Designer configuration file matches that of the Biamp extension device. • Connection checks: Check the network or RS-232 connection from the control. system to the extension device.
  • Page 23 Support@biamp.com 9300 SW Gemini Drive Beaverton, OR 978008 USA Warranty: biamp.com/legal/warranty-information Safety & Compliance: biamp.com/compliance May 02, 2023...
