Eden Madrid Assembly Instructions

A S S E M B LY I N S T R U C T I O N S

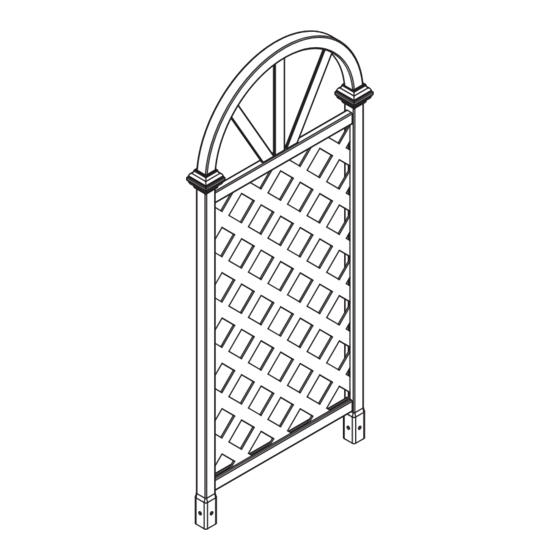

The Madrid Trellis
Please read through before starting assembly.

Check Box for These Contents

In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Arch System & Spokes (1)
2. Post Caps (2)
3. Pre-Assembled Lattice Screen (1)
4. Ground Anchoring Stakes (2)
5. Hardware (in plastic bag)
a) 5/8" Self-Auguring Stainless Steel Screws (8)
b) #2 Robertson Drill Bit (1)

Tools You Will Need

• Cordless Drill
• Hammer
• Tape Measure
• Level
• Shovel

General Information

• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 5'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling components.
(Pre-Assembled)
41.65
4 21.27
24.27
1
2
3
4
www.edenarbors.com
57.85
5 a
b
Not to Scale
1
