A S S E M B LY I N S T R U C T I O N S

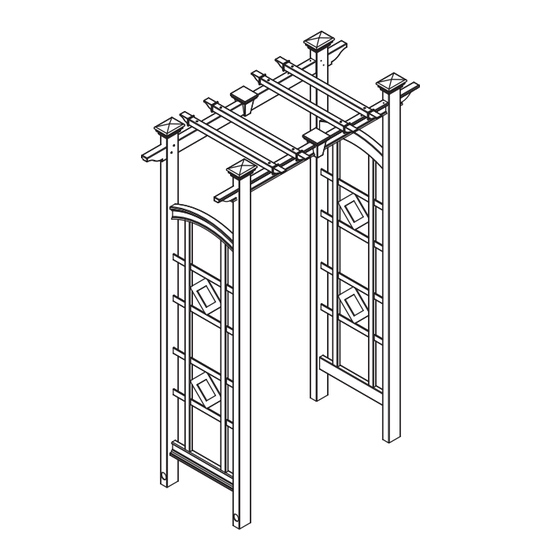

The Monaco Arbor
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Post Caps (4)
2. Pergola Rafters (4)
3. Pergola Beams (2)
4. Keystones & Lids (2)
5. Side Panel Arched Top Rails (2)
6. Posts (4)
7. Side Panel Diamonds (4)
8. Side Panel Horizontal Mid-Rails (8)
9. Side Panel Vertical Spindles (4)
10. Side Panel Horizontal Bottom Rails (2)
11. Ground Anchoring Stakes (4)
12. Hardware (in plastic bag)
a)
2 1/2" Self-Auguring Stainless Steel Screws
(8 for Pergola Rafters)
b)
1 1/2" Self-Auguring Stainless Steel Screws (12 -
for Posts & Keystone)
c)
#2 Robertson Drill Bit (1)
Tools You Will Need
• Cordless Drill
• Level
• Hammer
• Stool or Short Ladder
• Tape Measure
• Shovel
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to
avoid scratching.
• We recommend an area approx 10'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling components.
60.78
85.93
42
49
1
2
3
4
5
6
7
8
9
10
www.edenarbors.com
30.95
94.38
20
24
12 a
c
b
11
Not to Scale
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Eden Monaco
Summary of Contents for Eden Monaco

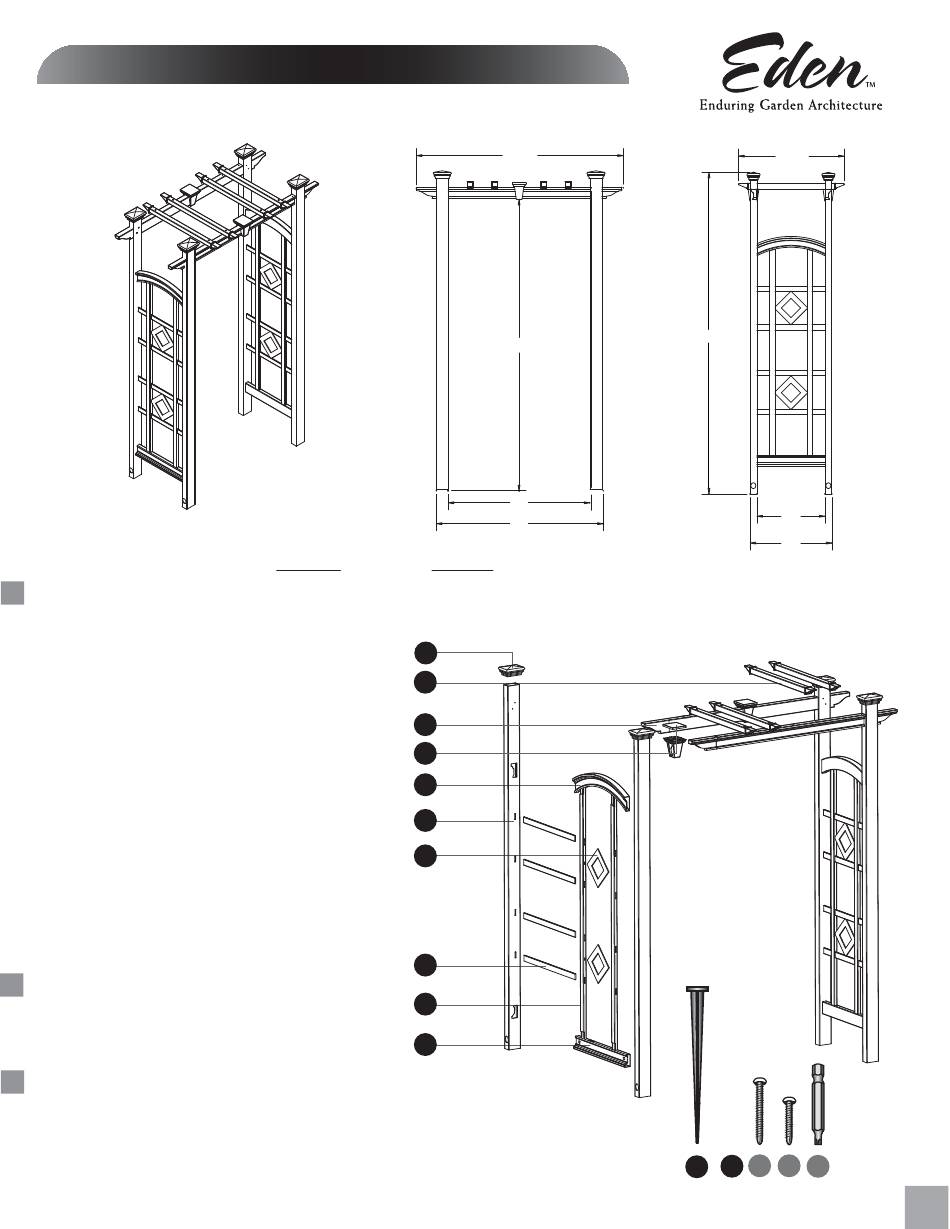

- Page 1 A S S E M B LY I N S T R U C T I O N S The Monaco Arbor www.edenarbors.com 60.78 30.95 94.38 85.93 Please read through before starting assembly. IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
- Page 2 Start with the bent top rail first. Insert 1st Lay out the second post with holes facing upwards and insert Insert 2nd the completed panel and connected post. Insert 3rd Repeat for other side panel to complete both side panels. The Monaco Arbor...
- Page 3 Final adjustment to allow for a 42" opening between posts (allows for minor variance if necessary unless installed with a cozy arbor bench which is sold seperately). The Monaco Arbor...
- Page 4 S T E P F O U R Arbor Installation Arbors must be well secured to prevent tipping over from wind load etc. We have provided four ground anchors for securing the arbor either into the ground or a concrete footing. In some cases it may be acceptable to secure the arbor to an existing structure such as a fence post.
