A S S E M B LY I N S T R U C T I O N S
The Vienna Trellis
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.

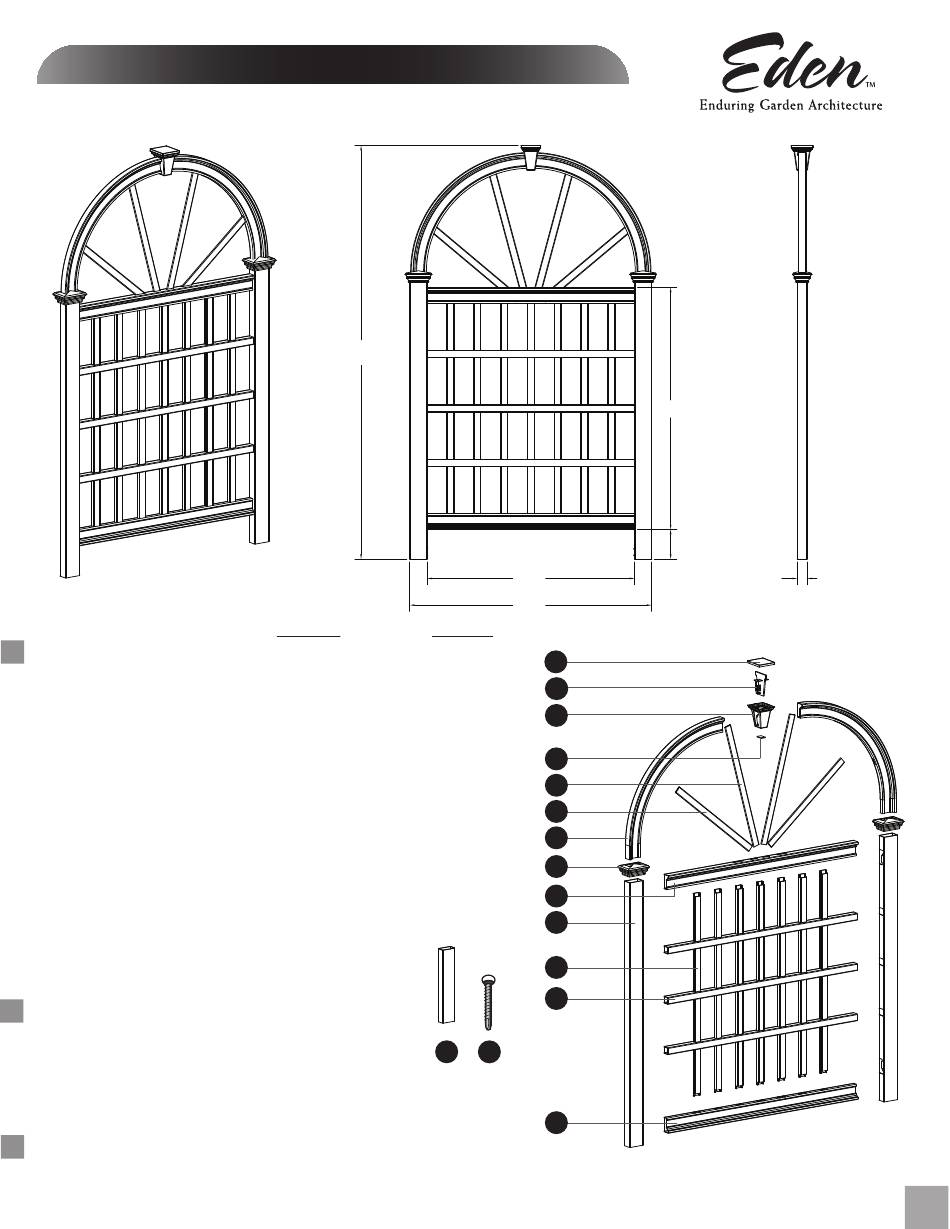

Check Box for These Contents
In the event of missing or defective parts please call our customer service
dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Keystone Lid (1)
2. Keystone Insert (1)
3. Keystone Body (1)
4. Keystone Bottom Plate (1)
5. Arch Spindle - Long (2)
6. Arch Spindle - Short (2)
7. Arches (2)
8. Post Caps (2)
9. Top Rail (1)
10. Posts (2)
11. Vertical Spindles (7)
12. Horizontal Spindles (3)
13. Bottom Rail (1)
14. Ground Stakes (2)
15. 1 1/2" Self-Auguring Stainless Steel Screw (20)
Tools You Will Need
• Cordless Drill
• Hammer
• Tape Measure
• Level
• Shovel
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
• We recommend an area approx 5'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling component.
83.75 in
42 in
49 in
14
15
Not to Scale
www.edenarbors.com
49 in
6 in
1
2
3
4
5
6
7
8
9
10
11
12
13
2 in
1
Ver 1/Aug 2011
Advertisement
Table of Contents
Related Manuals for Eden The Vienna Trellis
Summary of Contents for Eden The Vienna Trellis
- Page 1 A S S E M B LY I N S T R U C T I O N S The Vienna Trellis www.edenarbors.com 83.75 in 49 in 6 in 42 in 2 in Please read through before starting assembly. 49 in IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
- Page 2 S T E P O N E NOTE: Assembly will be easier if performed by two people Lay out the top rail, bottom rail, horizontal spindles, and vertical spindles as shown. Start by inserting the 7 vertical spindles into the 3 horizontal rails. Note that the routed holes on the horizontal rails are slightly offset from the centre.
- Page 3 S T E P T W O Arch Assembly Assemble the keystone by inserting the keystone insert into the keystone body as shown below, followed by the two arches. Note that the arches will be marked with a sticker where they meet the keystone.
- Page 4 S T E P T H R E E Arch Assembly Place the post cap onto each of the post. Note that there are left and right post caps. Please see image aside for orientation. Insert the arch spindles into the top rail as shown. The short spindles would be on the outer side of the rail, and the long spindles would be on the inner side of the rail.
- Page 5 Mounting Into the Ground Trellises must be well secured in the event of high winds, etc. We have provided two ground anchoring stakes for securing the trellis either into the ground or into a concrete footing. If you are installing your trellis directly to the wall of your home, or on a wood deck or concrete surface, please see your hardware store for the appropriate galvanized bracket hardware.
