A S S E M B LY I N S T R U C T I O N S

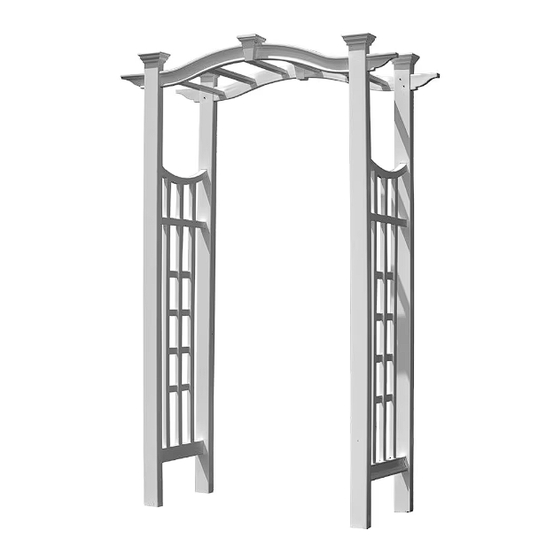

The Florence Arbor
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).

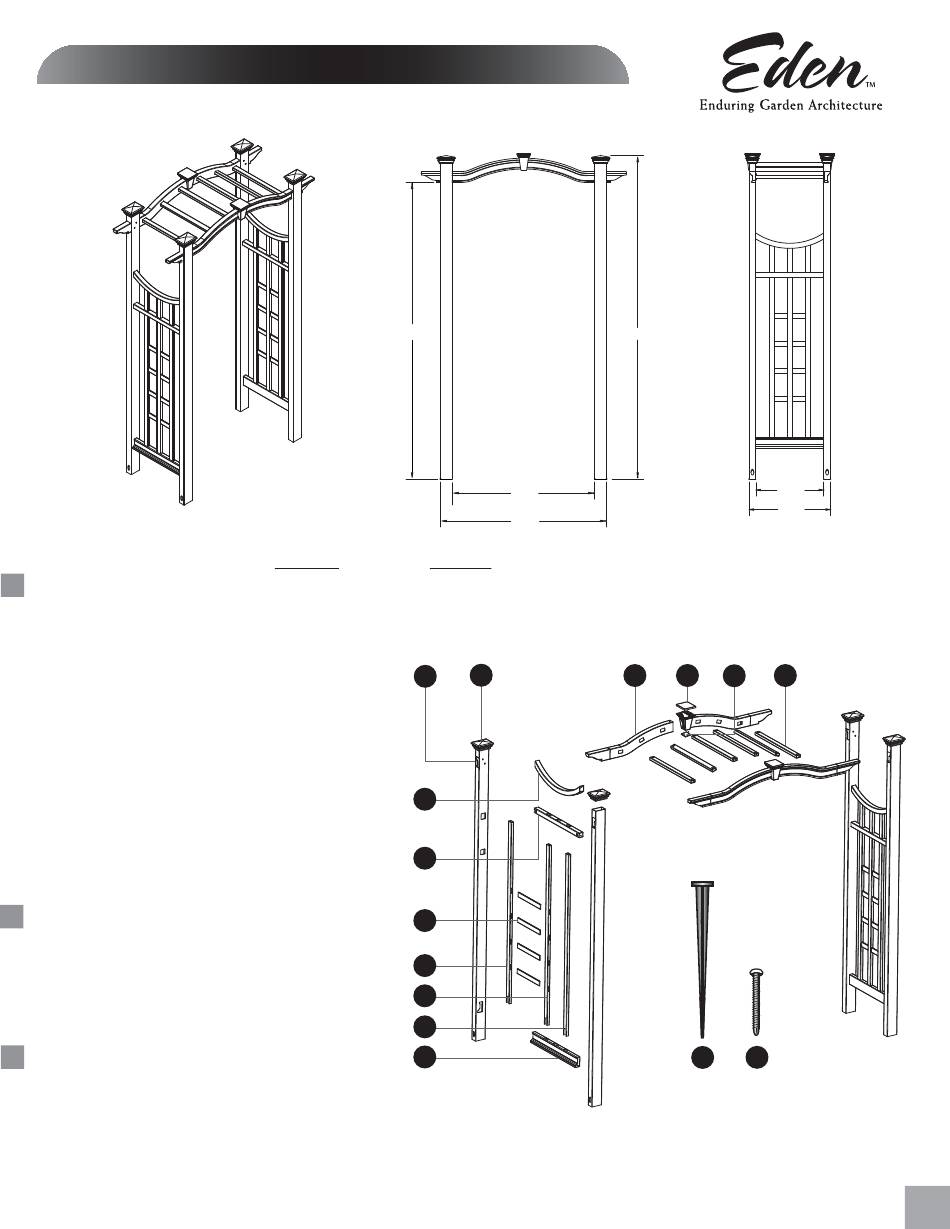

1. Posts (4)
2. Post Caps (4)
3. Arches (4)
4. Arch Keystones & Lids (2)
5. Keystone Bottom Plates (2)
6. Arch Rafters (6)
7. Side Panel Horizontal Bent Top Rails (2)
8. Side Panel Horizontal Mid-Rails (2)
9. Side Panel Horizontal Spindles Short (8)
10. Side Panel Vertical Spindles Long - Left (2)
11. Side Panel Vertical Spindles Short - Middle (2)
12. Side Panel Vertical Spindles Long - Right (2)
13. Side Panel Horizontal Bottom Rails (2)
14. Ground Anchoring Stakes (4)
15. 1 1/2 Self-Auguring Stainless Steel Screws (16)
Tools You Will Need
• Cordless Drill
• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel
General Information
• Read Instructions through carefully before
beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10ft.x 8ft. for unobstructed assembling.
• You should not need to use excessive force when assembling components.
85 13/16in.
42in.
49in.
2
1
7
L
8
9
10
11
12
13
www.edenarbors.com
93 3/4in.
3
4
5
R
14
Not to Scale
20in.
24in.
6
15
1
Ver 1/Nov 2008
