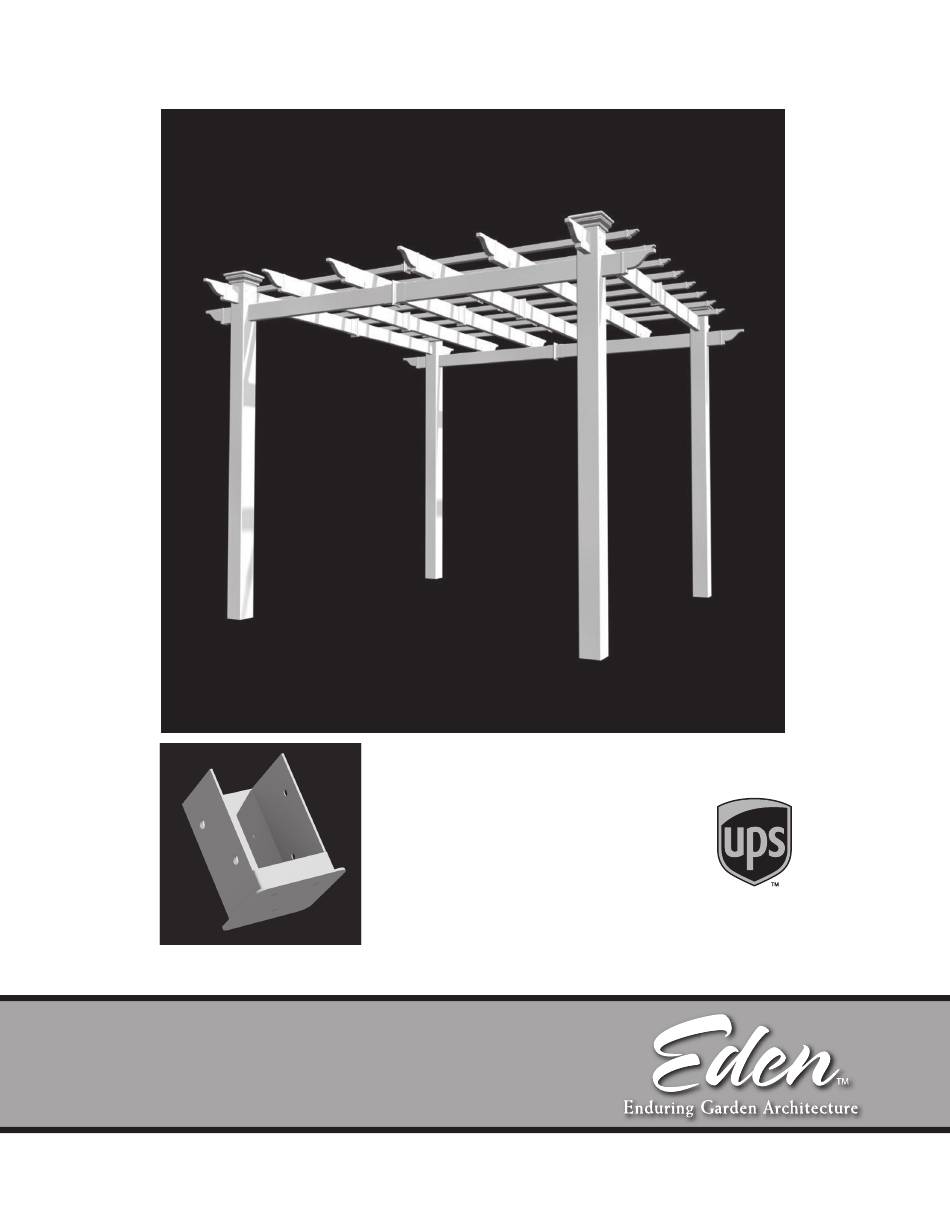

- Page 1 A S S E M B L Y G U I D E O P T I O N A L A C C E S S O R Y • Bolt Down Bracket Kit Mirage, Mandalay Models: Ver 6/2010...
-
Page 2: Table Of Contents
Ta b l e o f Co n t e n t s PAGE 8 x 8 Flat Top Pergola Introduction & Overview……………………………..........………..Pergola Materials Overview………………………. -
Page 3: Introduction & Overview
I n t r o d u c t i o n & O ve r v i e w Getting Started Restriction of Use First off, allow us to say thank you for the investment you have made in one This product is not designed to carry additional of our fine pergola kits. - Page 4 Mirage Pergola Materials Overview www.edenarbors.com 1. Main Rafters (12) 2. Shade Slats Including Decorative End Caps (16) 3. Rafter & Beam Decorative End Caps (16) 4. Post Caps (4) 94.7 in 240.4 cm 5. Beam & Rafter Joiners (8) 6. Steel Stiffener Inserts for Main Rafters (8) 80.9 in...
- Page 5 Mirage Pergola Materials Breakdown www.edenarbors.com (Mirage Pergola Accessories Not included) Check Boxes (Total of 4) for These Contents In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
-
Page 6: Pergola Additional Materials
Pergola Additional Materials List www.edenarbors.com Hardware (in plastic bag) NOTE: WE HAVE INCLUDED 10% EXTRA SCREWS BEYOND WHAT IS IDENTIFIED BELOW. All Screws Included with this Kit are Self-Auguring. A. Vinyl Weld Glue (1) B. 5/8” Self-Auguring Stainless Steel Screws (32) (for Rafter Brackets) C. -
Page 7: Wood Post Layout & Installation For In-Ground
Wood Post Layout & Installation for In-Ground Application www.edenarbors.com This pergola can also be installed on a pre-existing wood or Overhead View concrete surface using our bolt down bracket system with a 4x4 wood post (sold separate). See page eight for more details. 96 1/4 in. - Page 8 O P T I O N A L S T E P www.edenarbors.com 97.5 in. Wood Post Layout & Installation 247.7 cm. Using Bolt Down Brackets for Concrete or Wood Surface Measure and mark out the location of the pergola posts using string or chalk line.
-
Page 9: Vinyl Column Installation Over Wood Posts
NO SHIMS REQUIRED. If you purchased the Mandalay, follow steps 2 and 3. If you purchased the Mirage, skip to step 4. Slide Base Mold down the post to the ground. Slide post trim on to the post. Trim should measure 12” below lowest hole in post. -
Page 10: Vinyl Beam Assembly
At this stage, the columns should be properly Note: If you have base molding on your installed as per the following illustration, posts, measure above moldings as the with the columns 96 in. (243.8 cm.) apart. measurement is to be from post to post. www.edenarbors.com Also, notice that the holes at the top of each post should be facing the same direction. -
Page 11: Vinyl Rafter Assembly
S T E P F I V E www.edenarbors.com Vinyl Rafter Assembly Four holes facing up MAIN RAFTERS Insert the end of the vinyl rafter marked ‘B’ into a joiner. Install the joiners so that the side with the four holes are facing up. -
Page 12: Vinyl Beams & Rafter Placement
S T E P S I X Vinyl Beams & Rafter Placement Using a helper and two ladders proceed to complete the following steps: Slide the vinyl beam with rafter clips pre-installed through both holes of the vinyl column (overshooting), and then back through both holes of the opposite column. -
Page 13: Fastening Vinyl Beams, Rafters & Caps
S T E P S E V E N Fastening Vinyl Beams, Rafters & Caps Using 5/8” self-auguring stainless steel screws attach the pergola rafters to the rafter brackets. Install the post caps using vinyl weld. Install decorative pergola end caps using vinyl weld. 8 x 8 Flat Top Pergola... - Page 14 Install one 2 1/2” screw at each intersection of rafter and shade slat. Suggestions for Additional Shade as Necessary • Contact Eden Arbors regarding the possibility of purchasing an extra box of shade slats. • White resin lattice in variety of shapes and sizes are available at 11 1/2”...
