User's Guide

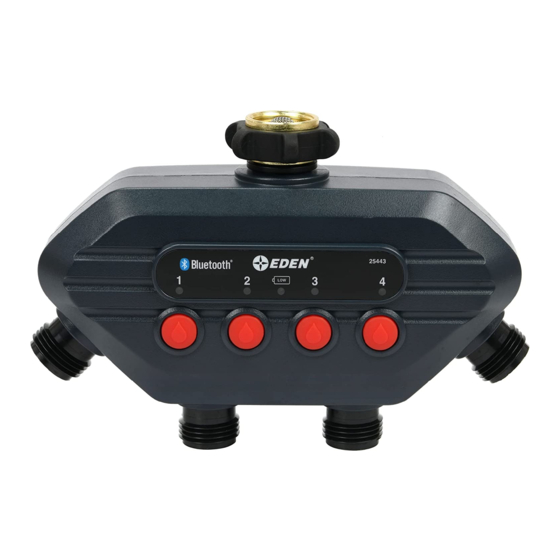

water timer
A smart, efficient and convenient method to manage
garden watering and large scale irrigation.
This Manual is a universal manual for all of our 1,2 and
4 zone Bluetooth® timers.
By using our free app on your Android or iOS smartphone
(minimum required iOS 9 or Android V7.0), this water timer
can be programmed wirelessly, allow you to use your
smart phone or tablet to control all the programming and
interface functions on your water timers or irrigation
controllers. The app has easy-to-follow cues that are
displayed on your smartphone to guide you through the
process. The timer can be set to water on any or all days
of the week, from 10 times or more per day, with a
duration ranging from one minute to 12 hours.
The water-delay setting lets you postpone your irrigation
cycle without losing your preset program. You can also
manually control the settings right at the faucet, without
using the app. You can even manage multiple timers from
the same app. These tap timers will automatically water
sequentially once they are programmed via your
smartphone or tablet. No need to open the user's guide to
figure which buttons to push. The App is highly intuitive
and programming is simple.
Features >
Pairing your Smart Phone with EDEN® Bluetooth® Controller >
EDEN® Bluetoth® Timer Spec >
Managing the App >
Useful Tips >
Contact Us >
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eden 25439
Summary of Contents for Eden 25439
- Page 1 No need to open the user’s guide to figure which buttons to push. The App is highly intuitive and programming is simple. Features > Pairing your Smart Phone with EDEN® Bluetooth® Controller > EDEN® Bluetoth® Timer Spec > Managing the App > Useful Tips >...
- Page 2 User’s Guide Features: • Smart Bluetooth® garden timer where you change the method of watering your garden from a range up to 10 m (30 ft). Enables you to control your garden’s watering schedule from your smart phone, tablet remotely. •...
- Page 3 1. Download and install the EDEN® Water Timer App : Please visit Google Play Store or App Store, search for “Eden Water Timer”, or scan the bar code on the controller package to download the app.
-
Page 4: Fcc Statement
User’s Guide Timer Spec: Model: Range: 30 ft. (10 meters) without interference Pressure Operating: 10 - 120 PSI Temperature Operating: 32 - 110˚ F (0 - 45˚ C) Frequency Band: 2402 - 2480 MHz Operating Frequency: 915 (N.Amer.) / 868 (EU) MHz Max Power: <... - Page 5 User’s Guide Edit Device Profile: or the “device” name on the screen to setup. You can change the Device profile for device icon, name and password. You can name your Bluetooth® timer if you have more than one. This helps you identify your timers. Any programming changes can be overridden by any auhorized user.
- Page 6 User’s Guide Setup Zone Valves: or valve photo to “Valve Setting” to set up Tap “valve 1” or to change valve name (12 characters in length) and icon. Repeat the step for the rest valves Tap Valve 1, 2, 3 or 4 to rename If you are using more than one valve on your controller unit, you can also replace the valve’s photo and the name to easily distinguish between them where you...
- Page 7 User’s Guide Scroll up or Down to select the desired watering time, then press the “Confirm” key Tap “Duration” Scroll up or down to select your desired watering time. Then press the “Confirm” key Move up and down to select the duration then confirm Tap “Frequency”.
- Page 8 User’s Guide Change the watering mode to “By Week Day”, then tap Setting Tap any place in “Watering Day” or to select the day you wish to watering Select or Deselect the day, then “Confirm”. The selected day will be enclosed by a square box Add cycle (up to 30 watering cycles), select desire start time and watering duration.
- Page 9 User’s Guide Set Eco Water Saving: Set Eco function by sliding the bar to the right. The Eco Function creates a pause in the watering cycle, which provides absorption time for the soil. It can also prevent water run-off Set the water duration and pause duration according to the watering needs.
- Page 10 User’s Guide Bluetooth® Moisture Sensor Pairing : You can add Moisture Sensor (not included) to pair with your Bluetooth® Timer. The moisture sensor can be used to reduce your water use. Pairing can only be done with one zone at a time.
- Page 11 User’s Guide Moisture Sensor Spec: Model: 25417 Range: 100 ft.(30 meters) without interference Temperature Operating: 32 - 110˚ F (0 - 45˚ C) Operating Frequency: 915 (N.Amer.) / 868 (EU) MHz Max Power: < 10 dbm For outdoor use with cold water only! Not for use with household appliances Do not mix Alkaline, carbon-zinc, or rechargeable batteries...
- Page 12 User’s Guide Set Moisture Levels: You can setup the moisture levels according to your soil requirement. 10% increments are selectable up to 100%. The current status will be shown once a Bluetooth® moisture sensor is connected. Please wait three minutes to receive a sensor reading. Noted that more Moisture Sensors are connected to the timer, the more battery use will be used.
-
Page 13: Manual Watering
User’s Guide Manual Watering: This Bluetooth® timer has the ability to allow you to manually water without interrupting the programming schedule. There are 2 ways of activating this function. 1) You can actiavte the manual function by swiping the “Manual” bar to turn on: or 2) any of the four red buttons of the timer can be pushed to allow for manual watering use. -
Page 14: Off Mode
User’s Guide Off Mode: If you wish to stop watering for an extended period, swipe the bar to the left of “Program” . The timer will not water automatically while in this mode. The program status will display the word “Off”. To start watering automatically again, simply turn the program on again. -
Page 15: Quick Access
User’s Guide Quick Access: You can access your device or valve setting more rapidly by tapping the top left corner to change their settings the individual device settings... -
Page 16: Useful Tips
User’s Guide Useful Tips: Seasonal storage: Freezing temperature can cause timer to freeze and expand, damaging the timer. At the end of the season or when there is frost in the forecast, remove your timer from the faucet, remove the batteries and be sure store the timer indoor, away from freezing temperatures. - Page 17 User’s Guide Contact Us: We manufacture more than just watering tools. We strive to protect the earth and improve the environmental quality by providing innovative products in this irrigation industry.. ADD : No.21, Ln. 409, Sec. 1, Luhe Rd. Lukang Township, Changhua County Taiwan (R.O.C.) 50547 TEL : 886-4-7775096...
