A S S E M B LY I N S T R U C T I O N S

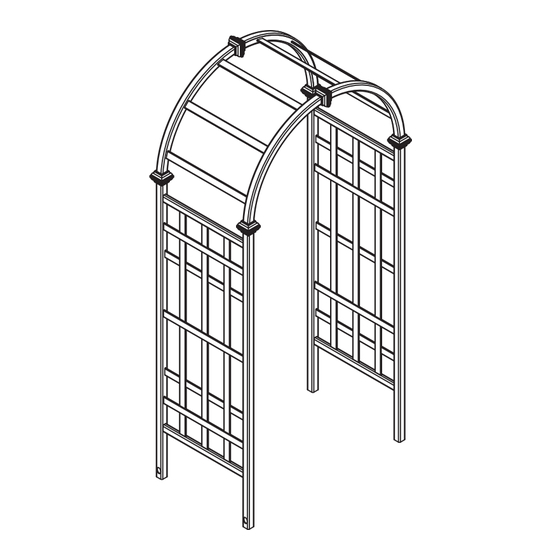

The Athens Arbor
Please read through before starting assembly.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Post Caps/Keystones (6)
2. Arches (4)
3. Arch Rafters (6)
4. Side Panel Horizontal Top Rails (2)
5. Posts (4)
6. Side Panel Horizontal Spindles (10)
7. Side Panel Vertical Spindles Long (6 )
8. Side Panel Horizontal Bottom Rails (2)
9. Ground Anchoring Stakes (4)
Tools You Will Need
• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling components.
81.5
36
1
2
3
4
5
6
7
8
www.edenarbors.com
50.75
10.5
20
9
Not to Scale
