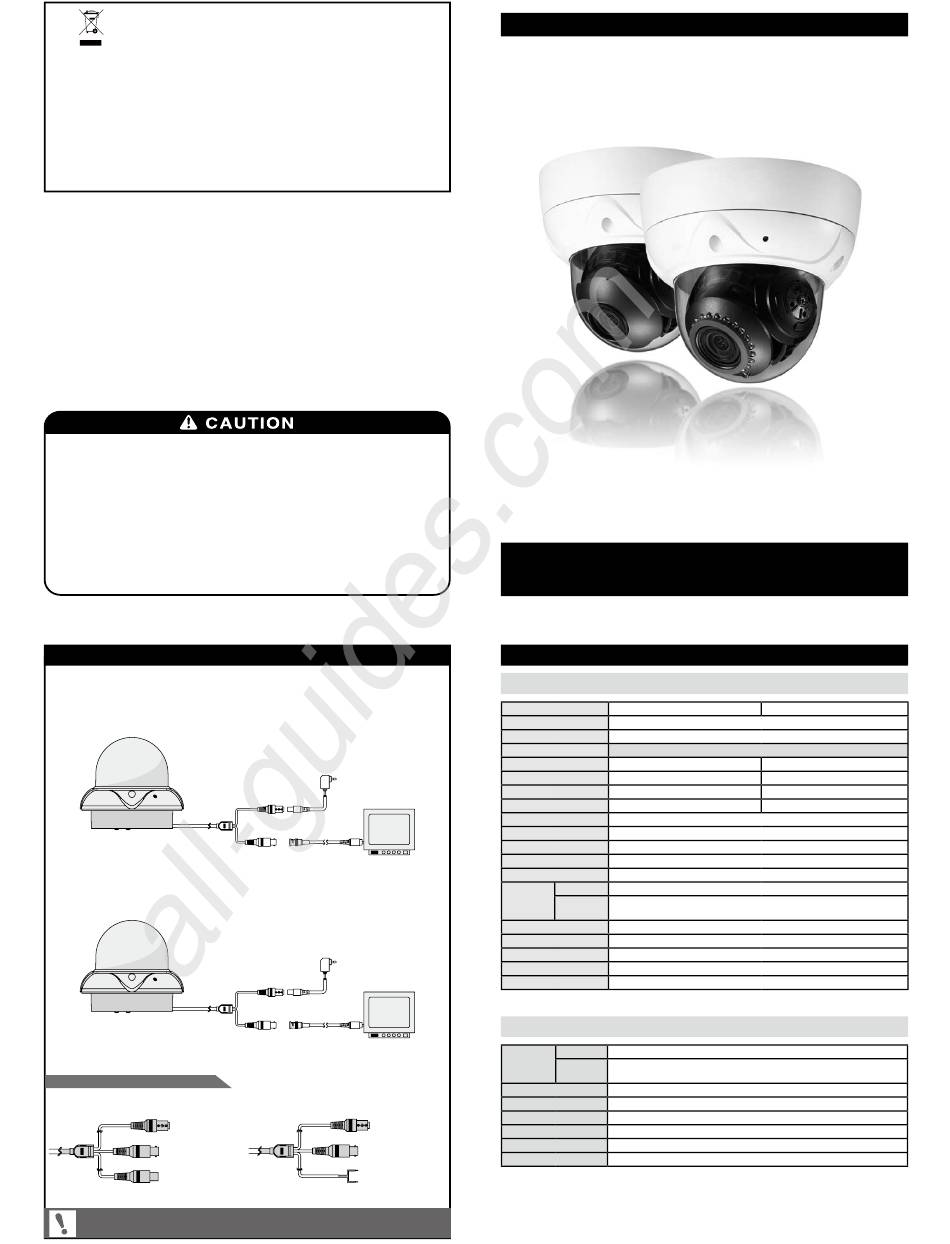

KT&C KPC-VNQ100 Operation Manual

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicate that it should not be disposed with
other household wastes at the end of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes purchased this product, or their
local government office, for details of where and how they can take item for environmentally safe
recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract.
Household users should contact either the retailer where they for disposal.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Note -
This equipment has been tested and found to comply with limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / tv technician for help.
Caution -
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority to
operate the equipment.
1. A regulated DC12V 3A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.
When unregulated power supply is applied, product warranty will be
out of subject.
2. It is recommended that the camera is used with a monitor that has a CCTV quality
75 video impedance level.
If your monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal
components. Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reflective light, which may
cause smear on the picture and possible damage to the CCD.
5. Do not remove the serial sticker for the warranty service.
CONNECTION
• DC 12V
• DUAL(DC 12V/AC24V)
CABLE OPTION
• AUDIO
DC +12V or AC24V
MALE(Red)
VIDEO
BNC FEMALE(Yellow)
AUDIO
RCA FEMALE(White)
When you install the camera, please glue up the end of cable to
keep it stable in order to protect the camera from the humidity problems.
All manuals and user guides at all-guides.com
DC12V
REGULATED POWER SUPPLY
VIDEO IN
BNC FEMALE
VIDEO
DC12V / AC24V
REGULATED POWER SUPPLY
VIDEO IN
BNC FEMALE
VIDEO
•UTP
DC +12V or AC24V
MALE(Red)
VIDEO
BNC FEMALE(Yellow)
UTP
(AWG - size: #26)

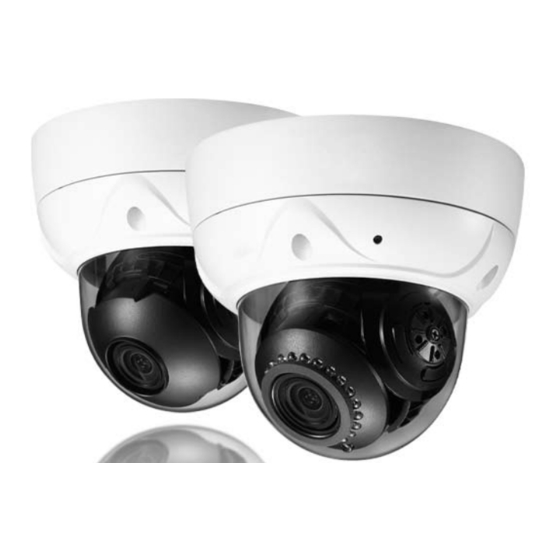

ARMORED DOME CAMERA
OPERATION MANUAL
Thank you for choosing our high quality camera.
Before attempting to connect or operate, please read and follow
these instructions.
SPECIFICATIONS
STANDARD TYPE
Signal Format NTSC
Image Device
Scanning System
H.Resolution
Scanning Frequency H:15.734KHz, V:59.94Hz
Total Pixels 811(H) x 508(V)
Effective Pixels 768(H) x 494(V)
Electronic Shutter Speed 1/60 sec
S/N Ratio
Gnmma Correction
Min. Illumination
Sync. System
Second Video Connector
DC12V
Input Power
Dual
Source
Voltage
Operating Temperature
Storage Temperature
Operating Humidity
IP Rating
Weight
Face Plate : Point at the CCD without obstruction of light from any other material.
LED TYPE
DC12V
Input Power
Dual
Source
Voltage
Min. Illumination
IR LED
IR LED Half Angle
IR LED Wavelenght
IR Ream Length
IR LED Operation
M051-VDQ100-002
PAL
1/3" Sony Super HAD CCDⅡ
2:1 Interlace
550TV Lines
H:15.625KHz, V:50Hz
795(H) x 596(V)
752(H) x 582(V)
1/50 sec
More than 45dB(AGC Off)
r=0.45
0.05 Lux / Face Plate
Internal
1.0 Vp-p Composite 75(Ω)
DC12V (±10%), Max. 180mA
• DC12V (±10%), Max. 250mA
• AC24V (±10%), Max. 3W
-10℃ ~ +50℃
-20℃ ~ +60℃
Less then 80%
IP66(Weatherproof)
Approx. 870g
DC12V (±10%), Max. 800mA
• DC12V (±10%), Max. 930mA
• AC24V (±10%), Max. 20W
0 Lux (IR LED ON)
22ea
±22 Degree
850nm
Up to 30m
ON : 3 Lux, OFF : 6 Lux
