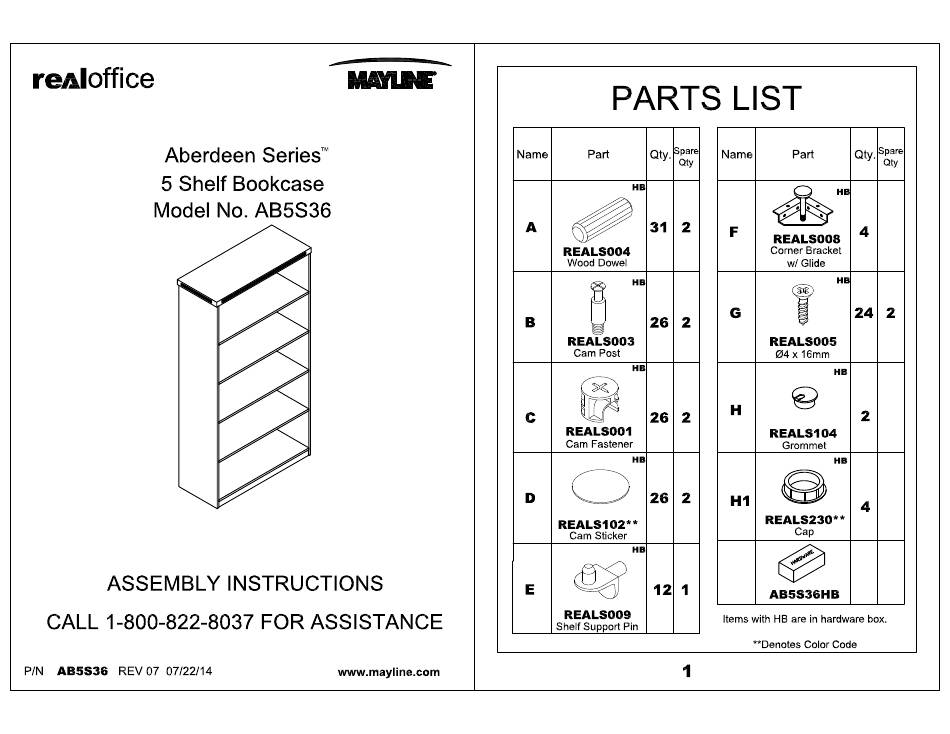

- Page 2 PARTS LIST Insert Wood Dowels (A) into Bottom (K) and Fixed Shelf (N). Insert Cams (C) into Bottom (K) and Fixed Shelf (N). Install Cam Posts (B) into threaded inserts in Back Panel (Q). Attach Back Panel (Q) to Bottom (K) and Fixed Shelf (N) by turning Cams (C).
- Page 3 Insert Wood Dowels (A) into Back Panel (R), Bottom (K), Fixed Shelf (N), Insert Wood Dowels (A) into Back Panel (R), Bottom (K), Fixed Shelf (N), and Toe Kick (L). Insert Cams (C) into Back Panel (R) Fixed Shelf (N), and Toe Kick (L).
- Page 4 Insert Wood Dowels (A) into Back Panel (R) and Side Panels (P & Q). Attach Corner Brackets with Glides (F) using Screws (G). Insert Cams (C) into Back Panel (R) and Side Panels (P & Q) . Install Cam Posts (B) into threaded inserts in Top (J). Attach Top (J) to Back Panel (R) and Side Panels (P &...
- Page 5 Install Shelf Support Pins (E). Insert Grommets (H) into Back Panel (R). Install Shelves (M). Apply Cam Stickers (D) over exposed Cams (C). Insert Caps (H1) into adjustment holes for levelers.
