NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.

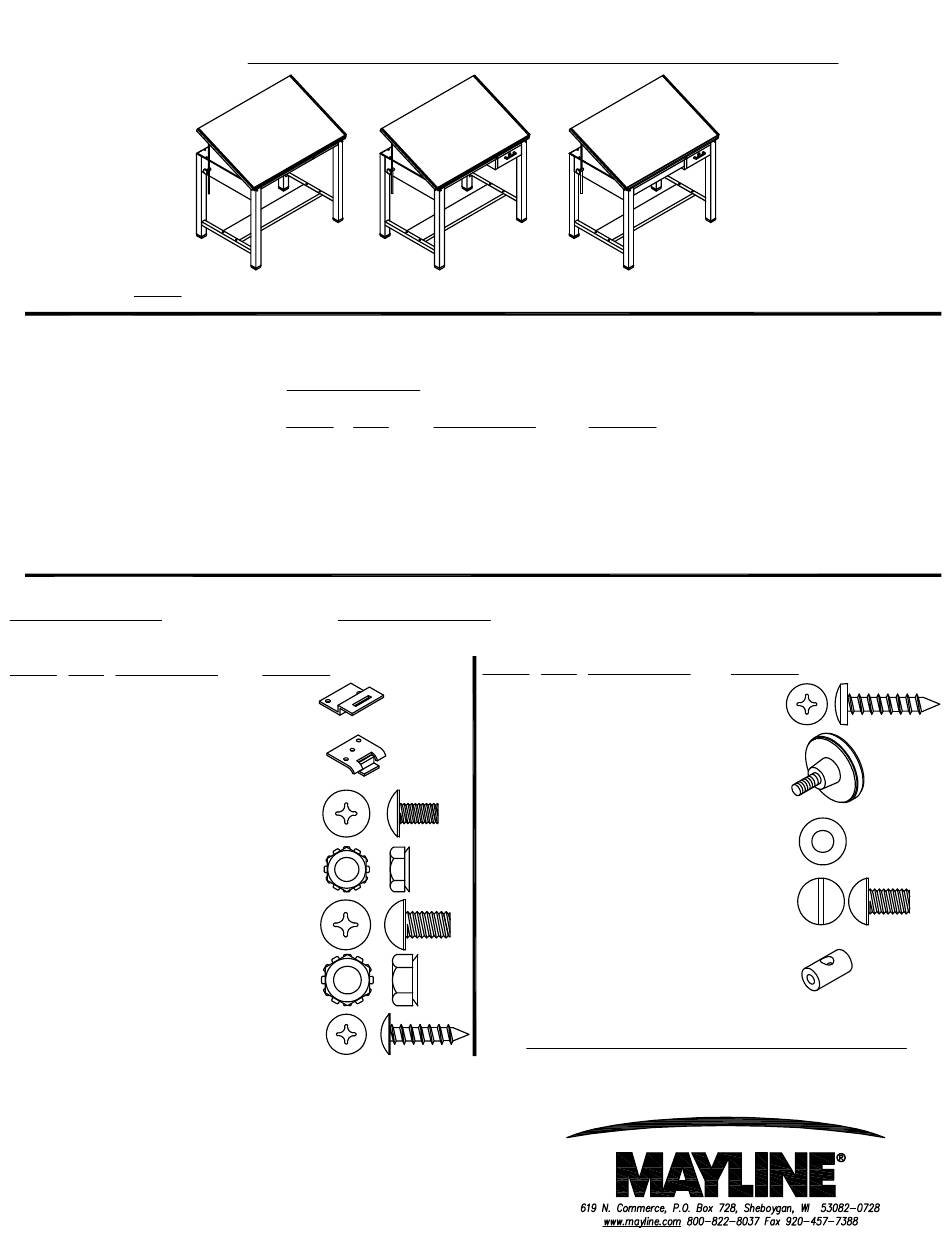

HARDWARE BAG:
TABLE w/o DRAWER -
REF. # QTY. DESCRIPTION
E1
2
LOWER HINGE
E2
2
UPPER HINGE
E3
4
10-24 x 3/8
MACHINE SCREW
E4
4
10-24 KEPS NUT
E5
12
1/4-28 x 3/8
MACHINE SCREW
E6
12
1/4-28 KEPS NUT
E7
11
8 x 5/8 SCREW
ASSEMBLY INSTRUCTIONS
RANGER STEEL FOUR-POST TABLES
When ordering components, specific color and/or size information may be
required. Contact a Mayline Customer Service Representative. 1-800-822-8037
COMPONENTS:
REF. #
QTY.
1
1
2
1
3
1
4
1
5
1
6
1
7
2
PART No. A7680
PART No.
B195*
B194*
X147*
T2*
X156*
T25*
X140A*
TABLE
DESCRIPTION
PART No.
R.H. END ASSEMBLY
L.H. END ASSEMBLY
FRONT RAIL
REAR RAIL
FOOT RAIL
DUST COVER
TILT ROD ASSEMBLY
*for individual item, order that part number
REF. # QTY. DESCRIPTION
E8
10
10 x 3/4 SCREW
E9
2
KNOB
E10
2
WASHER
E11
2
5/16-18 X 1/2 RD.
HD. MACHINE SCREW
E12
2
TILT ROD GUIDE
OPTIONAL COMPONENTS AND HARDWARE
are listed on the last page of this sheet.
(1)
CALL~~**
CALL~~**
CALL~~**
CALL~~**
CALL~~**
CALL~~
A315
PART No.
X11*
K13*
W30*
X157*
B160*
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mayline A7680
Summary of Contents for Mayline A7680
- Page 1 RANGER STEEL FOUR-POST TABLES NOTE: Please count and inspect all pieces before disposing of any carton or packing materials. When ordering components, specific color and/or size information may be required. Contact a Mayline Customer Service Representative. 1-800-822-8037 COMPONENTS: TABLE REF. # QTY.
- Page 2 (E5) and Nuts (E6). TIGHTEN all screws from steps 1 & 2 now. 3. Turn assembled table to an upright position. MAYLINE recommends that two people perform this task. 4. Fasten one Tilt Rod Guide (E12) to each side of the table using one Bolt (E11) and one Washer (E10) per guide.
- Page 3 Begin "HERE" 3. Attach one large Slide portion (9A) to the brackets on the R.H. side of the table using two Screws (E16). Begin attaching the Slide using the large 'Horizontal' slot in the last mounting tab using the lower set of holes for Tool Drawer installation. NOTE: If you are installing the Optional Shallow Drawer, repeat this procedure on the L.H.
-
Page 4: Top Installation
TOP INSTALLATION: 1. Lay the Dust Cover (6) onto the table. Align the holes in the Dust Cover with the holes in the Rails and attach with Screws (E7). 2. Align the holes in the Upper Hinge (E2) with the holes in the underside of the Top. Attach the Hinge using three Screws (E8) per Hinge. -
Page 5: Optional Components
OPTIONAL COMPONENTS: The following components are in addition to the TABLE components. TOOL DRAWER ACCESSORY : REF. # QTY. DESCRIPTION PART No. CENTER SUPPORT B7469** DRAWER SLIDE B6361** TOOL TRAY F187 TOOL DRAWER A7553** SHALLOW DRAWER ACCESSORY : DRAWER SLIDE B6361** SHALLOW DRAWER CALL~~** ** Denotes Color Code...
