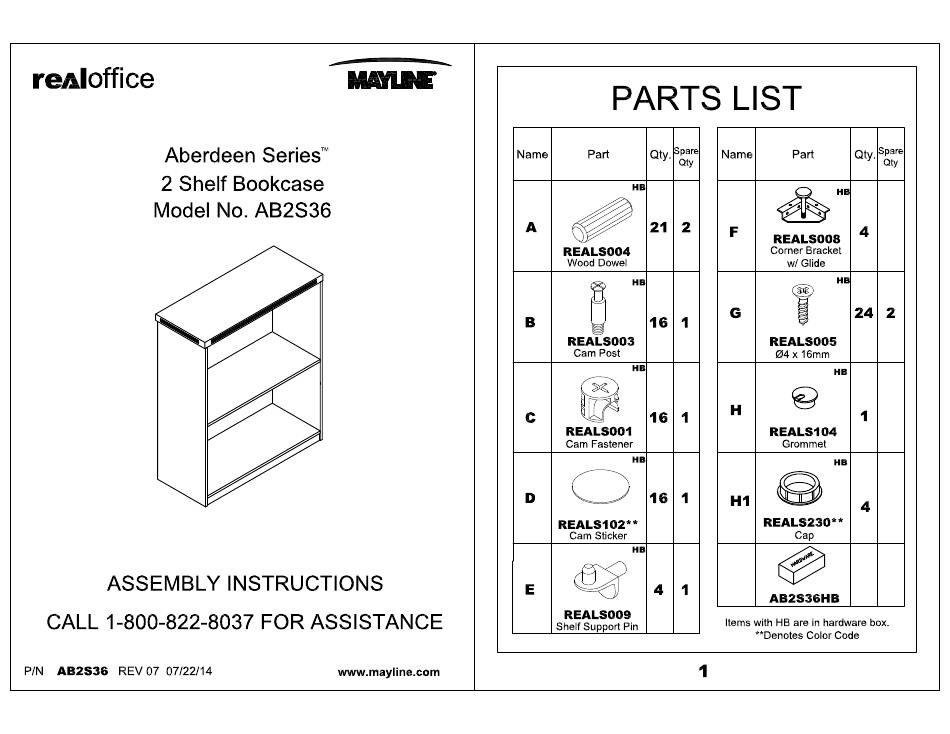

- Page 2 PARTS LIST Insert Wood Dowels (A) into Bottom (K). Insert Cams (C) into Bottom (K). Install Cam Posts (B) into threaded inserts in Back Panel (Q). Attach Back Panel (Q) to Bottom (K) by turning Cams (C). Name Part Qty. Name Part Qty.
- Page 3 Insert Wood Dowels (A) into Back Panel (Q), Bottom (K), and Toe Kick Insert Wood Dowels (A) into Back Panel (Q), Bottom (K), and Toe Kick (L). Insert Cams (C) into Back Panel (Q) and Bottom (K). Install Cam (L). Insert Cams (C) into Back Panel (Q) and Bottom (K). Install Cam Posts (B) into threaded inserts in Right Side Panel (P).
- Page 4 Insert Wood Dowels (A) into Back Panel (Q) and Side Panels (N & P). Attach Corner Brackets with Glides (F) using Screws (G). Insert Cams (C) into Back Panel (Q) and Side Panels (N & P) . Install Cam Posts (B) into threaded inserts in Top (J). Attach Top (J) to Back Panel (Q) and Side Panels (N &...
- Page 5 Install Shelf Support Pins (E). Insert Grommet (H) into Back Panel (Q). Install Shelf (M). Apply Cam Stickers (D) over exposed Cams (C). Insert Caps (H1) into adjustment holes for Levelers.
