Summary of Contents for Audix M70WD

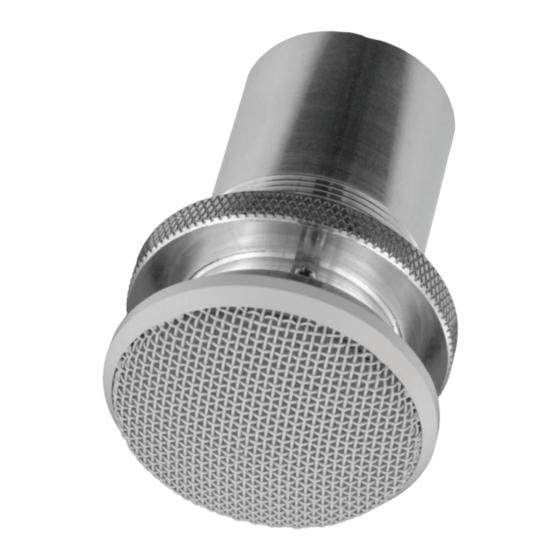

- Page 1 M70WD INSTALLATION & OPERATING GUIDE...
- Page 2 90% and eliminates wiring errors. Once the connection is made to the network via the Audix DN4 interface, the Audix microphone(s) will be automatically recognized and populated by model number in the Audix DSP plugin.
- Page 3 For seismic cable installation, wrap the Cable Stay Operation cable through beam, eyebolt or hanger and cable stay barrel (see fi gure 4). Remove M70WD placement screw and place eyelet over hole and tighten screw. FIGURE 5 FIGURE 6 Connect up to 4 microphones via Cat5 - Connect the DN4 Dante interface to a 7 to the Audix DN4 interface.
- Page 4 6. See tech support at audixusa.com for updated API / Plugin information © 2019 Audix Corporation. Audix is a registered trademark of the Audix corporation. Specifications subject to change without notice. For service and warranty information, visit AudixUSA.com/service or call 800.966.8261...
