Summary of Contents for Audix M70WD

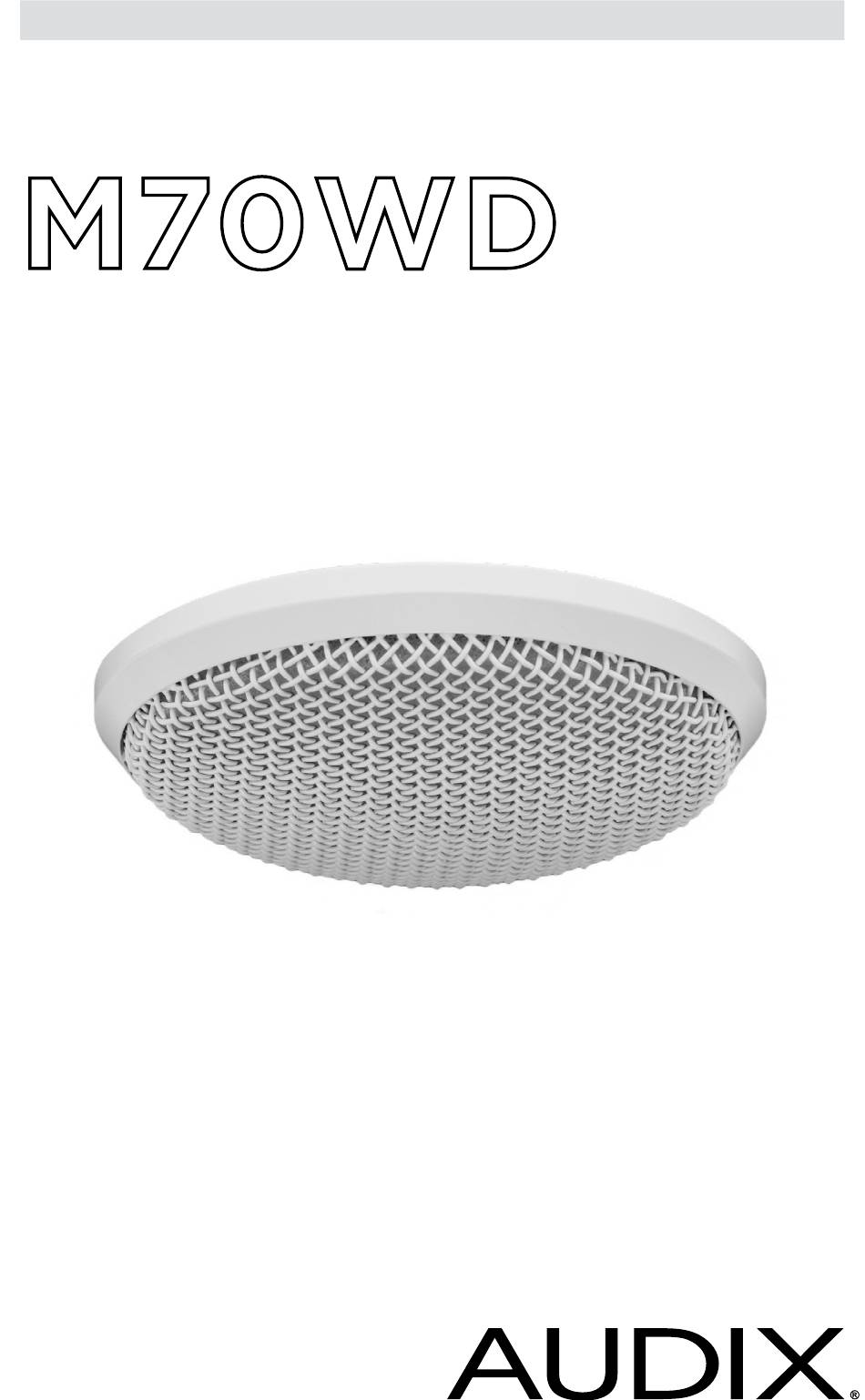

- Page 1 DANTE® | AES67 INTEGRATED MICROPHONE SYSTEM INSTALLATION & OPERATING GUIDE...

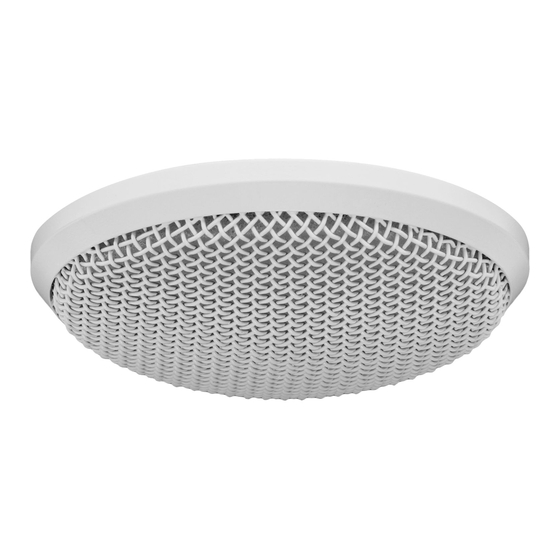

- Page 2 Thank you for choosing Audix. The Audix M70WD is part of an integrated microphone system that is the fast, trouble-free way to stream Audix audio performance through Ethernet networks. Like all Audix products, it is designed to provide many years of reliable service.
- Page 3 SEISMIC/FIRE RESTRAINT INSTRUCTIONS Attach the restraint cable to the module using the ring connector at one end of the cable. Wrap the cable around a beam, eyebolt or hanger. Next, slip the cable through the top of cable stay barrel pulling g excess cable until taut To release cable, depress the cable release pin on either end to release the loop or to extend cable length.
-
Page 4: Specifications
Materials / Finish Brass, aluminum and steel / white *Audix CAT7 cable is highly recommended. It consists of four twisted pairs that are individually shielded and is optimized for balanced audio and cross-talk elimination. The cable is LS0H (low smoke zero halo- gen) and available in prepackaged lengths or in bulk.
