Summary of Contents for Audix M63

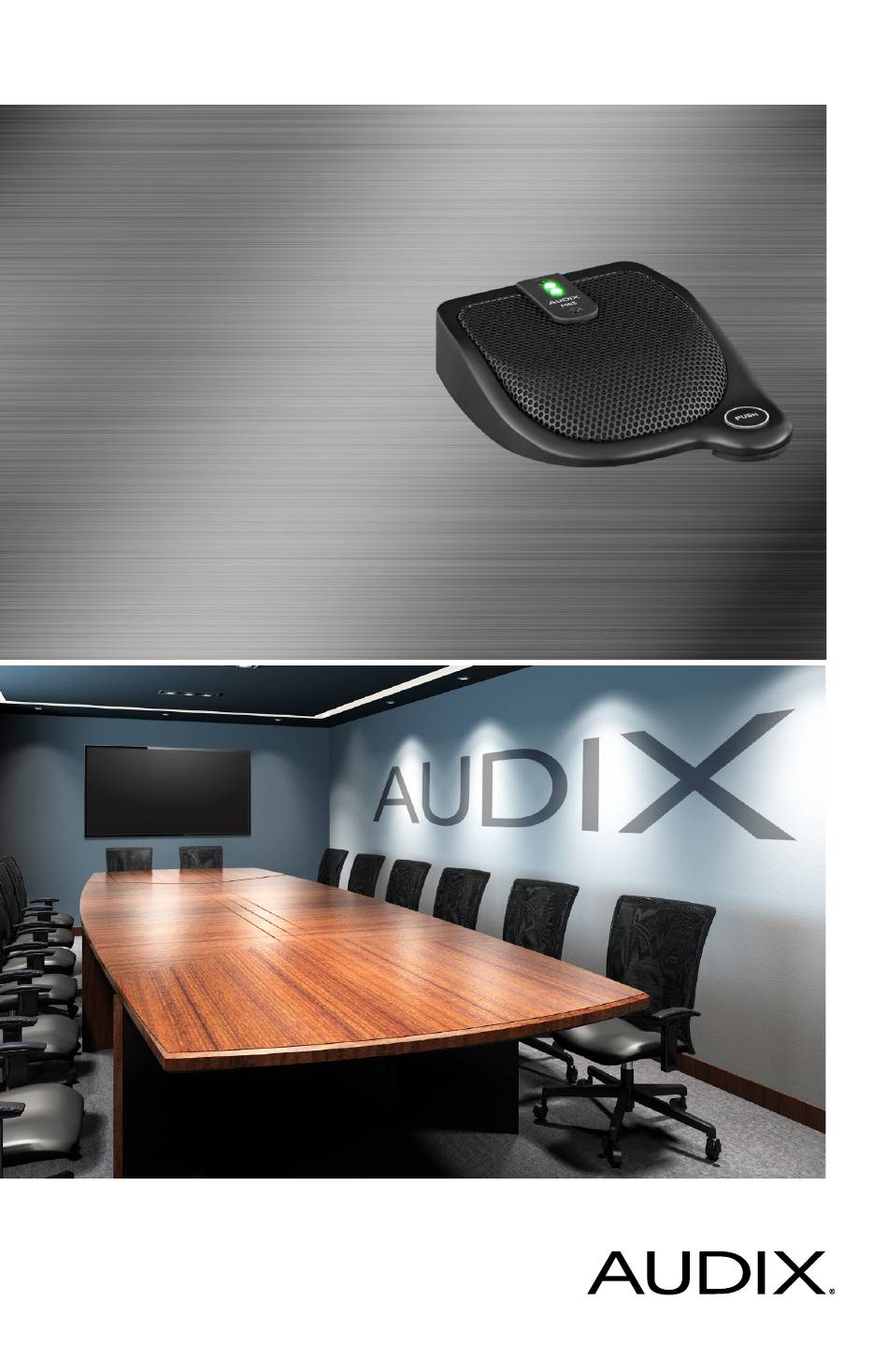

- Page 1 INSTALLATION & OPERATING GUIDE...
- Page 2 For installations that do not require elaborate DSP programming, the M63 provides an easy-to-operate solution without the cost and labor required for DSP operation when set to internal logic mode.
- Page 3 POWERING UP THE M63 When phantom power (48V) is supplied to the M63, the LEDs will blink red and green to indicate that the unit is receiving power. Following the power-up sequence, the LEDs will behave according to the setting specified by the DIP switch configuration.
- Page 4 PIN / WIRE ASSIGNMENTS The M63 is shipped with two 3-pin terminal blocks. One terminal block is for Audio connection (audio A+, A-, Ground) and it is the only connection required for audio and internal logic functionality as described in the overview. The second terminal block (LED, C.C.
