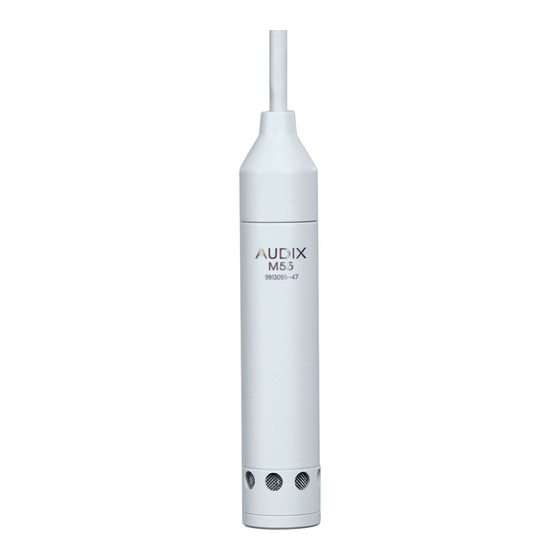

AUDIX M55
INSTALLATION GUIDE
Thank you for choosing Audix! Our products are designed to provide you with many
years of reliable service. Please read this manual before using the system
for optimal installation and operation.
Advertisement
Related Manuals for Audix M55
Summary of Contents for Audix M55
- Page 1 PROFESSIONAL MICROPHONES PROFESSIONAL MICROPHONES AUDIX M55 INSTALLATION GUIDE Thank you for choosing Audix! Our products are designed to provide you with many years of reliable service. Please read this manual before using the system for optimal installation and operation.
- Page 2 LOOSEN M55 KNURLED NUT, ADJUST CABLE TO APPROXIMATE DESIRED LENGTH, AND TIGHTEN NUT. (SEE #6) • TIGHTEN THE PLENUM CABLE STRAIN RELIEF NUT AND ARRANGE EXCESS M55 WIRE IN BOX AND CLOSE LID.(SEE #7) • FINE ADJUSTMENTS TO MICROPHONE HEIGHT CAN BE MADE EASILY FROM BELOW CEILING BY LOOSENING THE M55 KNURLED NUT, LENGTHENING/SHORTENING WIRE AND RETIGHTENING KNURLED NUT.
- Page 3 Tighten the strain relief nut. For final adjustment, loosen Arrange excess wire in box knurled nut, adjust cable and close lid. length, and tighten nut. For further information contact Audix at 503.682.6933 www.audixusa.com...
- Page 4 SEISMIC RESTRAINT INSTRUCTIONS SEISMIC RESTRAINT DIAGRAM: PLENUM RATED PLENUM RATED BOX CABLE Wrap the cable through fastening point (beam,eyebolt). Next, slip the cable through the top of cable stay barrel pulling excess cable until taut. CABLE STAY CABLE RELEASE BARREL CABLE RELEASE CABLE To loosen or disassemble cable, depress the cable release...
