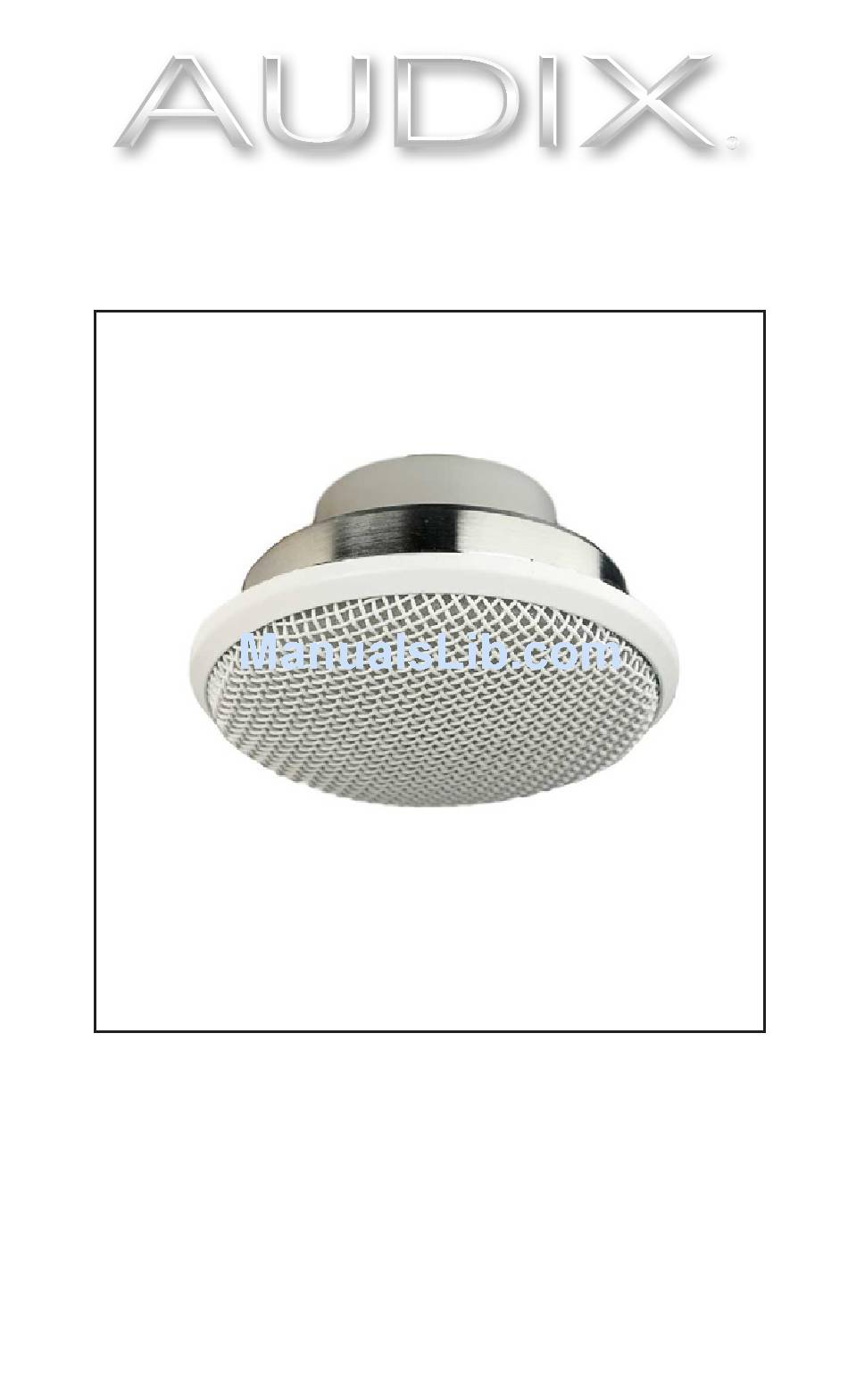

- Page 1 PROFESSIONAL MICROPHONES PROFESSIONAL MICROPHONES AUDIX M70 INSTALLATION GUIDE Thank you for choosing Audix! Our products are designed to provide many years of reliable service. Please read this manual before using the system for optimal installation and operation.
- Page 2 DRILL 2 INCH HOLE IN THE CEILING TILE • PLACE JBM70 BOX OVER THE CEILING TILE 2 INCH HOLE • INSERT M70 THROUGH HOLE “A” AND ROTATE TO HOLE “B” • SECURELY TIGHTEN THE KNURLED BRASS FASTENERS • INSERT FOAM BACK INTO JBM70 •...
- Page 3 2 = Blue (+) 3 = Yellow (-) Tighten down the strain relief To adjust microphone, nut to hold wire firmly in place unscrew the grill assembly. and close junction box lid. For further information contact Audix at 503.682.6933 www.audixusa.com...
- Page 4 SEISMIC/FIRE RESTRAINT INSTRUCTION CABLE EXPLODED VIEW UL RATED PLENUM RATED BOX PLENUM RATED CABLE Wrap the cable around a beam, eyebolt or hanger. Next, slip the cable through the top of cable stay barrel pulling excess cable until taut. CABLE STAY CABLE RELEASE BARREL PUSH PIN IN...
