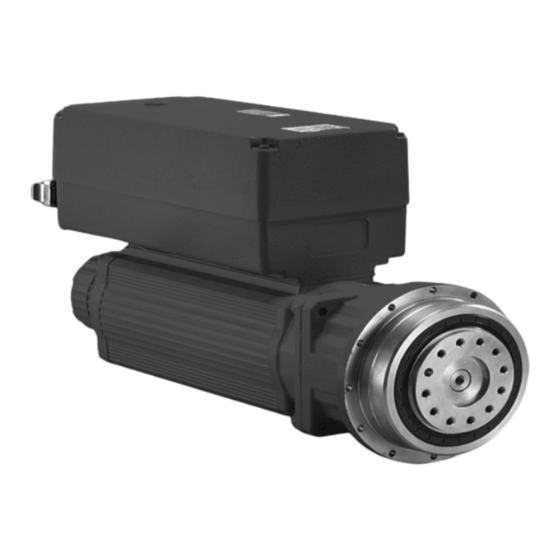

- Page 1 Drive Technology \ Drive Automation \ System Integration \ Services Manual Decentralized Servo Inverter ® MOVIAXIS MMD60B Functional Safety Edition 06/2012 16980026 / EN...
- Page 2 SEW-EURODRIVE—Driving the world...
-
Page 3: Table Of Contents
Contents Contents General Information .................... 4 Use of this documentation ................4 Structure of the safety notes ............... 4 Rights to claim under limited warranty ............5 Exclusion of liability..................5 Copyright..................... 5 Document content..................5 Other applicable publications ..............5 Product names and trademarks .............. -
Page 4: General Information
If you are unclear about any of the information in this documentation, or if you require further information, contact SEW-EURODRIVE. Structure of the safety notes 1.2.1... -
Page 5: Rights To Claim Under Limited Warranty
You must comply with the information contained in this documentation to ensure safe operation and to achieve the specified product characteristics and performance features. SEW-EURODRIVE assumes no liability for injury to persons or damage to equipment or property resulting from non-observance of these operating instructions. In such cases, any liability for defects is excluded. -
Page 6: Integrated Safety Technology
Performance level d according to EN ISO 13849-1 • SIL 2 according to IEC 61800-5-2 This was certified by TÜV Nord. Copies of the TÜV certificate and the corresponding report are available from SEW-EURODRIVE on request. Safe condition ® For safety-related operation of MOVIAXIS MMD60B , safe torque off is defined as safe condition (see STO safety function). -
Page 7: Safety Concept
Integrated Safety Technology Safety concept Safety concept ® • The MOVIAXIS MMD60B frequency inverter can be connected to an external safety controller or safety relay. This de-energizes all active elements that generate the pulse trains to the power output stage (IGBT) by switching off the safety-related 24 V supply when a connected control device (e.g. -
Page 8: Safety Functions
Integrated Safety Technology Safety functions Safety functions The following drive-related safety functions can be used: • STO (safe torque off according to IEC 61800-5-2) by disconnecting the safety- related 24 V supply. If the STO function is activated, the frequency inverter no longer supplies power to the motor for generating torque. - Page 9 Integrated Safety Technology Safety functions • SS1(c) (safe stop 1, function variant c according to IEC 61800-5-2) by means of suit- able external control (e.g. safety relay with delayed disconnection) The following sequence is mandatory: – Deceleration of the drive using an appropriate brake ramp specified via setpoints –...
-
Page 10: Restrictions
Integrated Safety Technology Restrictions Restrictions WARNING The safety concept is only suitable for performing mechanical work on the system/ machine components. When the 24 V power supply is disconnected, the line voltage is still present at the frequency inverter DC link. Severe or fatal injuries from electric shock. -
Page 11: Safety Conditions
Safety Conditions Approved device combinations Safety Conditions ® The requirement for safe operation is that the safety functions of MOVIAXIS MMD60B are properly integrated into an application-specific higher-level safety function. A system/machine-specific risk assessment must be carried out through the system/ machine manufacturer and taken into account for the use of the drive system with ®... -
Page 12: Requirements On The Installation
Safety Conditions Requirements on the installation Requirements on the installation • Supply system cables and the safety-related control cables must be routed sepa- rately, unless you are using genuine SEW hybrid cables. ® • The length of the cable from the safety control system to MOVIAXIS MMD60B must not exceed 100 m. -
Page 13: Requirements On The External Safety Controller
Safety Conditions Requirements on the external safety controller Requirements on the external safety controller A safety relay can be used as an alternative to a safety controller. The following require- ments apply analogously. • The safety controller and all other safety-related subsystems must be approved for at least that safety class which is required in the overall system for the respective, application-related safety function. - Page 14 Safety Conditions Requirements on the external safety controller 3.3.1 Sample circuit "safety relay" The following figure shows the basic interface of an external safety relay (according to ® the before mentioned requirements) to MOVIAXIS MMD60B. The information in the respective manufacturer's data sheets must be observed for connection.
-
Page 15: Requirements On Startup
Safety Conditions Requirements on startup Requirements on startup • To validate the implemented safety functions, they must be documented and checked after successful startup (validation). Observe the limitations for safety functions in chapter "Limitations" for the validation of the safety functions. Non-safety-relevant parts and components that affect the result of the validation test must be deactivated, if necessary. -
Page 16: Connection Variants
Connection Variants Position of the plug connector for safe torque off (STO) Connection Variants Position of the plug connector for safe torque off (STO) The following figure shows the position of the plug connector for safe torque off (STO) ® of MOVIAXIS MMD60B: 2950509195... -
Page 17: Connection Of An External Safety Relay For Sto
MOVIAXIS MMD60B does not detect short circuits in the supply line. SEW-EURODRIVE therefore recommends to connect only STO signals to the STO input using a two-core cable, as shown in the figure. The safety relay must be able to detect a short circuit against ground at the M output. -
Page 18: Connection Of An External Safety Controller For Sto
MOVIAXIS MMD60B does not detect short circuits in the supply line. SEW-EURODRIVE therefore recommends to connect only STO signals to the STO input using a two-core cable, as shown in the figure. The safety controller must be able to detect a short circuit against ground at the M output. -
Page 19: Technical Data
Technical Data Technical Data ® The table below provides the technical data for MOVIAXIS MMD60B related to inte- grated safety technology. The technical data and approvals in the respective ® "MOVIAXIS MMD60B" operating instructions must be observed in addition. Technical data of the STO input Min. -
Page 20: Index
Index Index Restrictions ............10 Rights to claim under limited warranty .....5 Checking the disconnection device......15 Conditions, safety ..........11 Requirements on operation........15 Requirements on startup........15 Safe condition ............6, 19 Requirements on the installation......12 Safe stop 1 (SS1) ............9 Requirements on the safety controller ....13 Safe torque off (STO) ..........8 Unit combinations, permitted ......11 Safety characteristics..........19... - Page 21 Index 0 ... 9 Wiring specifications ..........12 24 V supply electronics ..........19 Wiring technology ..........12 Manual – MOVIAXIS® MMD60B - Functional Safety...
- Page 24 SEW-EURODRIVE—Driving the world SEW-EURODRIVE Driving the world SEW-EURODRIVE GmbH & Co KG P.O. Box 3023 D-76642 Bruchsal/Germany Phone +49 7251 75-0 Fax +49 7251 75-1970 sew@sew-eurodrive.com www.sew-eurodrive.com...
