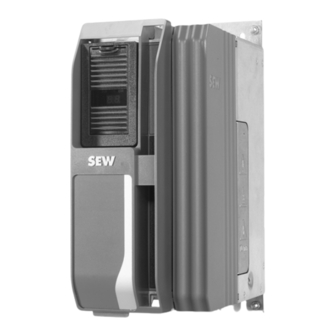

SEW-Eurodrive MOVIDRIVE system Product Manual

Application inverter
Hide thumbs Also See for MOVIDRIVE system:
Table of Contents

Advertisement

Quick Links

Download this manual

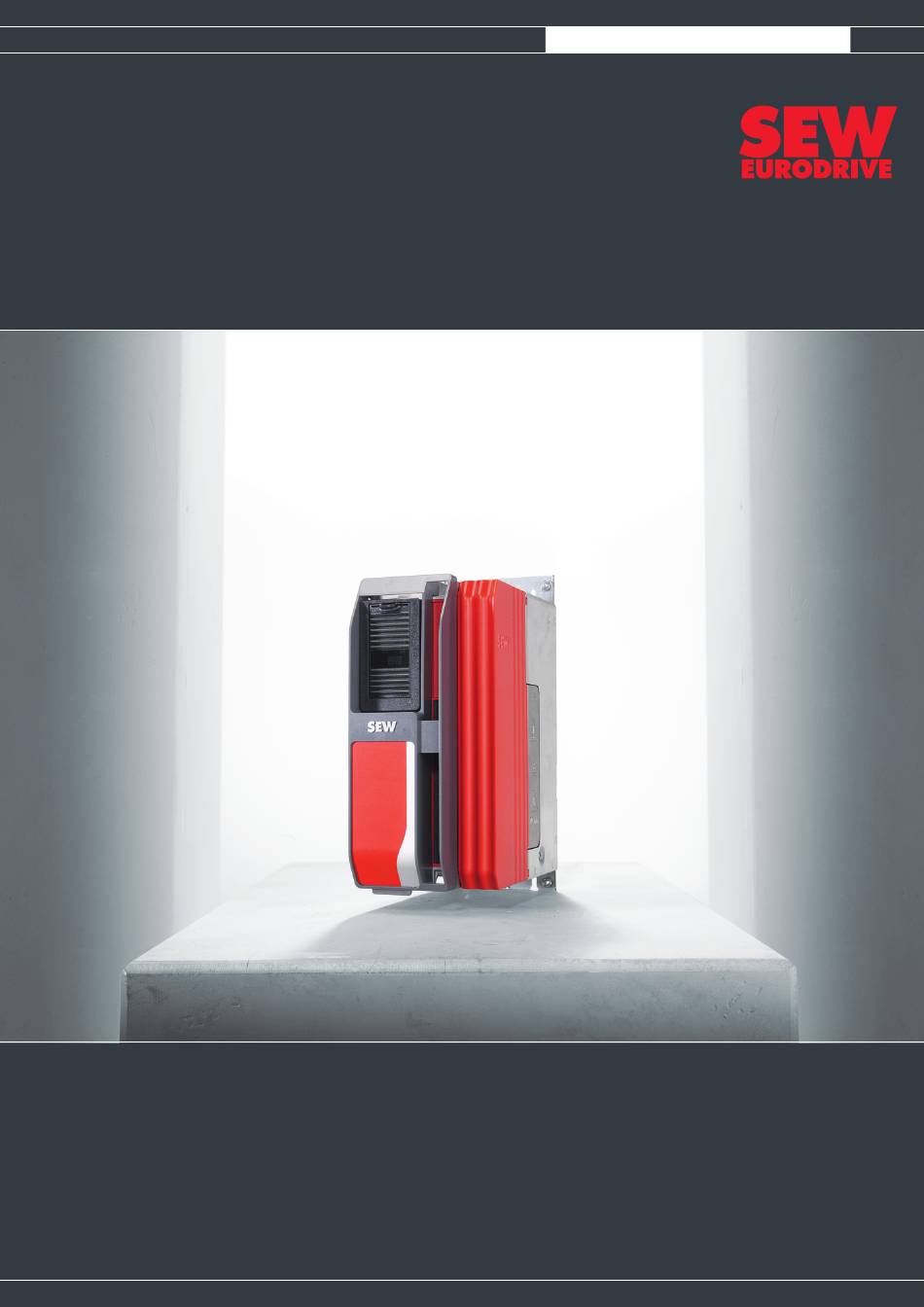

*28487486_0219*
Drive Technology \ Drive Automation \ System Integration \ Services
Product Manual
Application Inverter
®
MOVIDRIVE
system
Edition 02/2019
28487486/EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOVIDRIVE system and is the answer not in the manual?

Questions and answers

Leonidha Strakosha
February 19, 2025

How many oms the sensor needs to be

0
1 comments:
Mr. Anderson
February 19, 2025

The SEW-Eurodrive MOVIDRIVE system recommends the use of the following temperature sensors:
- KTY84-130 (SEW-Eurodrive designation: KY/KTY)
- Pt1000 (SEW-Eurodrive designation: PK)

The Pt1000 sensor has a resistance of 1000 ohms at 0°C.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for SEW-Eurodrive MOVIDRIVE system

Summary of Contents for SEW-Eurodrive MOVIDRIVE system

  • Page 1 *28487486_0219* Drive Technology \ Drive Automation \ System Integration \ Services Product Manual Application Inverter ® MOVIDRIVE system Edition 02/2019 28487486/EN...
  • Page 2 SEW-EURODRIVE—Driving the world...

  • Page 3: Table Of Contents

    Table of contents Table of contents Product description........................  6 Device availability ...................... 9 ® MOVIDRIVE system at a glance  ................ 10 ® MOVIDRIVE system product overview ............... 15 Product overview accessories .................. 17 FCB concept ......................... 19 Control mode ........................ 26 Energy-saving functions.................... 33 ® MOVISUITE engineering software  ................ 34 Technical data.........................

  • Page 4: Table Of Contents

    Table of contents About this documentation ................... 186 Structure of the safety notes .................. 186 Decimal separator in numerical values ............... 187 Rights to claim under limited warranty ................ 187 Content of the documentation.................. 188 Other applicable documentation ................. 188 Product names and trademarks.................. 188 Copyright notice ...................... 188 Device availability ....................... 189 Safety notes ..........................

  • Page 5: Table Of Contents

    Table of contents Startup procedure ....................... 289 Connection to the engineering software .............. 293 Operation..........................  294 10.1 General information .................... 294 10.2 7-segment display....................... 295 10.3 Operating displays ...................... 296 10.4 Fault description on basic device................ 298 10.5 Power section fault description ................... 334 10.6 Responses to fault acknowledgement ................ 339 10.7 Fault responses ...................... 341 Service ...........................

  • Page 6: Product Description

    Product description Product description ® With its brand MOVI-C , SEW‑EURODRIVE is launching a new generation of drive ® and automation technology. MOVI-C is the modular automation system that enables the highest level of system and machine automation. ® MOVI-C comprises drive technology, MotionControl, control technology, and visualiz- ation.
  • Page 7 10 min ® MOVI-C CONTROLLER ® ® MOVIDRIVE modular MOVIDRIVE system 16000611083 The CiA402 device profile for controlling inverters has established itself in plants with very individual motion control functions that are calculated in the external higher-level controller. ® ®...
  • Page 8 Product description ® For applications with requirements on functional safety, the MOVISAFE CS..A safety cards are available. They are controlled via the integrated inputs and outputs or via ® safe communication using Safety over EtherCAT (FSoE). 24494793995 ® ® MOVIDRIVE modular and MOVIDRIVE system are available with device profile CiA402.

  • Page 9: Device Availability

    Product description Device availability Device availability This documentation also lists devices that are not yet available at the time of the pub- lication of this document. The following table lists the available application inverters. Accessories required for the inverter operation such as braking resistors, chokes, and filters are available. Type designation MDX9_A-0020-5E3-4-S00/E00 MDX9_A-0025-5E3-4-S00/E00...

  • Page 10: Movidrive ® System At A Glance

    Product description MOVIDRIVE® system at a glance MOVIDRIVE ® system at a glance ® MOVIDRIVE system at a glance ® MOVIDRIVE  system Description:  (→ 2 15) Technical data:  (→ 2 41) Dimension drawings:  (→ 2 49) • Nominal output current: 2 – 588 A • Voltage ranges: 3 × 380 – 500 V, 3 × 200 – 240 V, 50 – 60 Hz •...
  • Page 11 Product description MOVIDRIVE® system at a glance Cards CES11A multi-encoder card Description:  (→ 2 17),  (→ 2 243) Technical data:  (→ 2 58) The multi-encoder card makes it possible to evaluate additional encoders. For information on this card, refer to the following document: • "Multi-encoder card CES11A" manual Safety cards CS..A Description:  (→ 2 18) Technical data:  (→ 2 59)
  • Page 12 Product description MOVIDRIVE® system at a glance ® MOVI-C CONTROLLER ® ® MOVI-C CONTROLLER MOVI-C CONTROLLER power is characterized by: power UHX85A • Intel Core2Duo 2.2 GHz processor ® • Windows Embedded Standard 7 • Ethernet interface for engineering tasks or TCP/IP and UDP via IEC 61131‑3 •...
  • Page 13 Product description MOVIDRIVE® system at a glance ® MOVI-C CONTROLLER ® ® MOVI-C CONTROLLER MOVI-C CONTROLLER advanced is characterized by: advanced UHX45A • A maximum of 8 interpolating axes that can be connected • Another 8 auxiliary axes that can be connected X 80 For further information on this device, refer to the following documents: L /A...
  • Page 14 Product description MOVIDRIVE® system at a glance Accessories ® The MOVIKIT software module allows for simple, quick and fault-free startup ® of all applications. The MOVIKIT software module supports both the ® ® MOVIRUN smart software platform and the MOVIRUN flexible software platform.
  • Page 15 Product description Product overview MOVIDRIVE® system Product overview MOVIDRIVE ® system ® MOVIDRIVE system product overview Properties • Coverage of a wide range of power ratings with finely graded performance classes. • Universal use due to a wide voltage range for line connection. •...
  • Page 16 Product description Product overview MOVIDRIVE® system Type designation Nominal out- Recommen- Nominal line Size Technical put current at ded motor current data PWM = 4 kHz power ASM MDX91A-0910-503-4-S00/E00 MDX91A-1130-503-4-S00/E00 MDX91A-1490-503-4-S00/E00 MDX91A-1770-503-4-S00/E00 MDX91A-2200-503-4-S00/E00  (→ 2 41) MDX91A-2500-503-4-S00/E00 MDX91A-3000-503-4-S00/E00 MDX91A-3800-503-4-S00/E00 MDX91A-4700-503-4-S00/E00 MDX91A-5880-503-4-S00/E00 Device data 3 × AC 230 V Nominal line voltage 3 × 200 – 240 V In accordance with EN 50160...

  • Page 17: Product Overview Accessories

    Product description Product overview accessories Product overview accessories ® The functionality and flexibility of MOVI-C application inverters can be supplemented by many different cards. 1.4.1 CID21A input/output card This input/output card is used to increase the number of digital inputs and outputs of the basic device.
  • Page 18 Product description Product overview accessories 1.4.4 Safety cards CS..A ® The MOVISAFE CS..A safety cards provide further functional safety functions to ® EN  IEC  61800-5-2 in addition to STO. The MOVISAFE CS..A safety cards and the CES11A multi-encoder card are intended to be used in the same card slot and thus cannot be used simultaneously.

  • Page 19: Fcb Concept

    Product description FCB concept FCB concept FCB = Function Control Block ® The FCB concept describes the modular firmware design of MOVI-C inverters. This feature ensures that a wide range of drive functions can be selected or deselected quickly and easily using control words. All primary functions, i.e.
  • Page 20 Product description FCB concept 1.5.1 Description of the FCBs FCB 01 Output stage inhibit Activating FCB 01 stops the connected motor via the motor brake. If no brake is in- stalled, the motor coasts to a stop. FCB 02 Default stop FCB 02 stops the drive with the preset profile value "Maximum deceleration".
  • Page 21 Product description FCB concept This higher-level controller usually calculates a track profile for several drive axes. The axis is then assigned just one setpoint (torque, torque limits, precontrol values, inertia) that it has to follow. The inverter limits the setpoints using the application limits. The course of the path curve profile is controlled by the controller.
  • Page 22 Product description FCB concept Upper limit = "Modulo max." If the position setpoint is outside this range, a fault is issued. The direction of the drive is determined using the last setpoint position (= current ac- tual position after activation without an "In position" message) and the current setpoint position.
  • Page 23 Product description FCB concept FCB 14 Emergency stop When FCB 14 is activated, the drive stops with the preset emergency stop decelera- tion. FCB 18 Rotor position identification For the operation of permanent magnet synchronous motors, the exact position in- formation of the rotor is required for closed-loop control.
  • Page 24 Product description FCB concept FCB 25 Motor parameter measurement FCB 25 is used for determining the necessary parameters from the electric equivalent wiring diagram during startup. The nameplate data of the connected motor is required for the motor parameter meas- urement.
  • Page 25 Product description FCB concept 1.5.2 Setpoints and limits in the FCBs Index 02 04 05 06 07 08 09 10 12 13 14 19 20 26 Setpoint buffer Position Rotational speed Torque 8376 Acceleration precontrol Mass moment of inertia Torque precontrol Correcting value of external position controllers Profile value buffer...

  • Page 26: Control Mode

    Product description Control mode Control mode ® The following control modes are available for MOVIDRIVE application inverters: • PLUS • • ® • ELSM 1.6.1 Description of the control modes The characteristics of the motor connected to the application inverter are influenced by the control modes used.
  • Page 27 Product description Control mode PLUS PLUS is a high-performance control mode that is able to operate asynchronous mo- tors with very high torque dynamics with or without rotary encoder. The control mode can be operated as speed or torque control. This control mode calculates all important state variables for controlling the motor by using a motor model.
  • Page 28 Product description Control mode The CFC control mode is a current-controlled control mode. The CFC control mode al- lows the operation of asynchronous and synchronous motors with maximum torque dynamics. For this purpose, the current components for the magnetic flux and for the torque generation are controlled separately.
  • Page 29 Product description Control mode Speed control ® The speed control operating mode can be activated in the ELSM control mode. The control mode has to be distinguished speed-dependent in two different operating ranges: • Open-loop control • speed-controlled operation. Open-loop control takes place when starting from standstill and below a transition speed.
  • Page 30 Product description Control mode 1.6.2 Characteristics of the control modes Overview of the control modes PLUS ® ELSM Principle Voltage controlled Field-oriented, Field-oriented, cur- Field-oriented, cur- according to charac- voltage-controlled, rent controller rent controller teristic curve stator flux controller, torque controller Motor ASM/LSPM Encoder...
  • Page 31 Product description Control mode PLUS ® ELSM Rotational speed 32 bits 32 bits 32 bits 32 bits 0.0001 1/min 0.0001 1/min 0.0001 1/min 0.0001 1/min Position — 16 bits 16 bits — (increment/revolution) Position — 32 bits 32 bits — (absolute increment) Characteristic values for accuracy of torque and speed PLUS PLUS ®...
  • Page 32 Product description Control mode FCBs that can be activated for selected control mode PLUS ® FCB no. Designation ELSM Output stage inhibit Default stop Manual mode Speed control Interpolated speed control Torque control Interpolated torque control Reference travel Stop at application limits Emergency stop Motor parameter measurement Stop at user limits...

  • Page 33: Energy-Saving Functions

    Product description Energy-saving functions Energy-saving functions 1.7.1 Flux optimization Flux optimization is a function that allows for operating an asynchronous motor in con- PLUS trol mode VFC with minimal losses. The magnetic flux is lead depending on the torque setpoint, so that the motor is operated with minimum current and thus with min- imized losses.

  • Page 34: Movisuite ® Engineering Software

    Product description MOVISUITE® engineering software MOVISUITE ® e ngineering software ® MOVISUITE engineering software ® MOVISUITE is the new engineering software from SEW‑EURODRIVE. The engineering software excels thanks to a new design of the user interface and user guidance. This new interface concept allows for the users to configure, parameterize, and start up their applications intuitively.
  • Page 35 Product description MOVISUITE® engineering software The scan function enables the reading of available devices, and the creation of these ® devices as projects in MOVISUITE The drive train can be built from motor to gear unit using the product catalog. Further- more, encoders, brakes, control modes, and user units can be selected and paramet- erized.
  • Page 36 Product description MOVISUITE® engineering software Drive functions • FCB 01 Output stage inhibit • FCB 05 Speed control • FCB 06 Interpolated speed control • FCB 08 Interpolated torque control • FCB 09 Positioning • FCB 10 Interpolated position control • FCB 12 Reference travel • FCB 08 Rotor position identification •...

  • Page 37: Technical Data

    Technical data Markings Technical data ® ® The following technical data applies to MOVIDRIVE system and MOVIDRIVE tech- nology. Markings 2.1.1 Basic device The application inverter complies with the following directives and guidelines: Marking Definition The CE marking states the compliance with the following European guidelines: •...
  • Page 38 Technical data Markings 2.1.2 Accessories Braking resistors BR.. Marking Definition The CE marking states the compliance with the following European guidelines: • Low Voltage Directive 2014/35/EU • Directive 2011/65/EU for limiting the use of hazardous substances in electric and electronic equipment The China RoHS marking states compliance with directive SJ/T 11364-2014 for limiting the use of hazardous substances in electric and electronic equipment.
  • Page 39 Technical data Markings Marking Definition The China RoHS marking states compliance with directive SJ/T 11364-2014 for limiting the use of hazardous substances in electric and electronic equipment. The cUR marking states the UL approval for this component. Output filter Marking Definition The China RoHS marking states compliance with directive SJ/T 11364-2014 for limiting the use of hazardous substances in electric and...

  • Page 40: General Technical Data

    Technical data General technical data General technical data The following table lists the technical data for all application inverters independent of • Type • Design • Size • Performance General specifications Interference immunity Meets EN 61800-3; 2. Environment Interference emission Limit value class C2 to EN 61800‑3 The interference suppression level can be improved with relevant measures.

  • Page 41: Technical Data Of Basic Device

    Technical data Technical data of basic device Technical data of basic device 2.3.1 Performance data 3 × AC 400 V Unit MDX9_A-...-5_3-4-.. Type 0020 0025 0032 0040 0055 0070 0095 0125 0160 Size Nominal output current I 12.5 = 4 kHz Input Nominal line voltage (to EN 50160) 3 × 380 – 500 V AC U...
  • Page 42 Technical data Technical data of basic device Unit MDX9_A-...-5_3-4-.. Type 0240 0320 0460 0620 0750 0910 1130 1490 Input Nominal line voltage (to 3 × 380 – 500 V EN 50160) AC U line Nominal line current AC I 21.6 28.8 41.4 55.8 67.5 81.9 line Line frequency f 50 – 60 ± 5% line...
  • Page 43 Technical data Technical data of basic device Unit MDX9_A-...-5_3-4-.. Type 1770 2200 2500 3000 3800 4700 5880 Nominal output current I = 4 kHz Input Nominal line voltage (to EN 50160) AC 3 × 380 – 500 V line Nominal line current AC I line Line frequency f 50 – 60 ± 5% line Controlled rectifier...
  • Page 44 Technical data Technical data of basic device 2.3.2 Performance data 3 × AC 230 V Unit MDX9_A-...-2_3-4-.. Type 0070 0093 0140 Size Nominal output current I = 4 kHz Input Nominal line voltage (to EN 50160) AC U 3 × 200 – 240 V line Nominal line current AC I 8.37 12.6 line...
  • Page 45 Technical data Technical data of basic device Unit MDX9_A-...-2_3-4-.. Type 0213 0290 0420 0570 0840 1080 Nominal line current AC I 19.2 26.1 37.8 51.3 75.6 97.2 line Line frequency f 50 – 60 ± 10% line Controlled rectifier Plug connector – 1 core: 0.5 – 16 mm X1 connection contacts –...

  • Page 46: Technical Data Of Accessories

    Technical data Technical data of accessories Technical data of accessories 2.4.1 Installation accessories Type designation Part number Plastic cover Number Scope of deliv- Description MDX9_A-0460 – 0750-5_3-.. 28243625 MDX9_A-0420 – 0570-2_3-.. Not included in  (→ 2 228) scope of delivery MDX91A-0910 – 1490-5_3-.. 28244540 MDX91A-0840 –...

  • Page 47: Electronics Data – Signal Terminals

    Technical data Electronics data – signal terminals Electronics data – signal terminals Terminal designation Specification General Design According to IEC 61131-2 Supply voltage Port External power supply 24 V according to IEC 61131 Plug connector Connecting contacts - 1 core: 0.25 – 2.5 mm - 2 cores: 0.5 – 1.5 mm (Twin-AEH) 1) AEH: Conductor end sleeve Digital inputs...

  • Page 48: Electronics Data – Drive Safety Functions

    Technical data Electronics data – drive safety functions Electronics data – drive safety functions The table below shows the technical data of the application inverter relating to the in- tegrated safety technology. The safety-related digital inputs comply with type 3 in accordance with IEC 61131‑2. Reference potential for the F_STO_P1 and F_STO_P2 is STO_M (contact at terminal X6:2).

  • Page 49: Dimension Drawings

    Technical data Dimension drawings Dimension drawings 2.7.1 MDX9_A-0020 – 0040-5_3-.. 20367245579 ® Product Manual – MOVIDRIVE system...
  • Page 50 Technical data Dimension drawings 2.7.2 MDX9_A-0020 – 0040-5_3-.. , MDX9_A-0070 – 0093-2_3-.. with braking resistor 20367243147 ® Product Manual – MOVIDRIVE system...
  • Page 51 Technical data Dimension drawings 2.7.3 MDX9_A-0055 – 0095-5_3-.. , MDX9_A-0070 – 0093-2_3-.. 20367250443 ® Product Manual – MOVIDRIVE system...
  • Page 52 Technical data Dimension drawings 2.7.4 MDX9_A-0125 – 0160-5_3-.. , MDX9_A-0140-2_3-.. 20367252875 ® Product Manual – MOVIDRIVE system...
  • Page 53 Technical data Dimension drawings 2.7.5 MDX9_A-0240 – 0320-5_3-.. , MDX9_A-0213 – 0290-2_3-.. 20367248011 ® Product Manual – MOVIDRIVE system...
  • Page 54 Technical data Dimension drawings 2.7.6 MDX9_A-0460 – 0750-5_3-.. , MDX9_A-0420 – 0570-2_3-.. 20968151179 ® Product Manual – MOVIDRIVE system...
  • Page 55 Technical data Dimension drawings 2.7.7 MDX91A-0910 – 1490-5_3-.., MDX91A-0840 – 1080-2_3-.. 23543938443 ® Product Manual – MOVIDRIVE system...

  • Page 56: Technical Data Of The Cards

    Technical data Technical data of the cards Technical data of the cards 2.8.1 CIO21A and CID21A input/output cards The CIO21A input/output card provides digital/analog inputs and outputs; the CID21A cards provide digital inputs and outputs. Terminal designation/ Specifications specification CIO21A CID21A Part number 28229495...
  • Page 57 Technical data Technical data of the cards Terminal designation/ Specifications specification CIO21A CID21A X51:1 Analog voltage output AOV2/AOV3 X51:4 Assignment X51:2 Analog current output AOC2/AOC3 X51:5 X51: 3, 6 Voltage output Tolerance ± 5% Capacitive load ≤ 300 nF Inductive load ≤...
  • Page 58 Technical data Technical data of the cards 2.8.2 CES11A multi-encoder card Voltage supply The multi-encoder card is supplied by the basic device. Technical data of encoder supply Terminal designation Specifications Part number 28229479 Power consumption Nominal power loss 24 V 0.8 W Maximum power consumption 24 V (card including 12.8 W encoder supply)
  • Page 59 Technical data Technical data of the cards 2.8.3 Safety cards CS..A General technical data Value Ambient temperature for storage of the safety ≥ -25 °C – ≤ 85 °C card ® • 0 °C – 40 °C without derating Ambient temperature of MOVIDRIVE system/ technology, all sizes • 40 °C – 55 °C with derating ®...
  • Page 60 Technical data Technical data of the cards F-SS0, F-SS1 Value/description Internal voltage drop < DC 1.3 V Pulsed voltage supply (if activated) • 2 ms open (LOW) • Period duration, pulsed voltage supply: 8 ms Permitted cable length 30 m (per sensor) Leakage current (F-SSx blocked) < 0.1 mA Safe digital outputs F-DO00_P/M, F-DO01_P/M...

  • Page 61: Technical Data Of Encoder Interfaces

    Technical data Technical data of encoder interfaces Technical data of encoder interfaces 2.9.1 Basic device Terminal designation Specification Supported encoders Resolver SIN/COS Encoder interface X15:1 – 15 TTL/HTL ® HIPERFACE Encoders with RS422 signals Connecting contacts 15-pin socket Encoder supply Nominal output voltage U according to DC 24 V...

  • Page 62: Technical Data Of Braking Resistors, Filters, And Chokes

    Technical data Technical data of braking resistors, filters, and chokes 2.10 Technical data of braking resistors, filters, and chokes 2.10.1 Braking resistors type BR.../BR...-T General The BR.../BR...-T braking resistors are adapted to the technical characteristics of the application inverter. Braking resistors with different continuous and peak braking powers are available. The braking resistors can be protected against overload and overtemperature by the customer when a thermal overload relay is used.
  • Page 63 Technical data Technical data of braking resistors, filters, and chokes UL and cUL approval The listed braking resistors have a cRUus approval independent of the application in- verter. Parallel connection of braking resistors Identical braking resistors must be connected in parallel for some inverter/resistor combinations.
  • Page 64 Technical data Technical data of braking resistors, filters, and chokes Technical data and assignment to an inverter Technical data Braking resistor Unit BR120-001 BR100-001 BR100-002 BR100-006-T Part number 18176011 08281718 08281653 18204198 Current-carrying capacity at 100% 0.03 Resistance value R Ω...
  • Page 65 Technical data Technical data of braking resistors, filters, and chokes Braking resistor Unit BR027-016-T BR027-024-T BR027-042-T Resistance value R Ω 27 ± 10% Tripping current I 12.5 trip Design Wire resistor Frame resistor Power connections Ceramic terminal 2.5 mm Tightening torque PE connection Tightening torque PE Degree of protection IP20...
  • Page 66 Technical data Technical data of braking resistors, filters, and chokes Braking resistor Unit BR010-024 BR010-050-T BR010-108-T Tightening torque PE connection M4 stud M6 stud Tightening torque PE Degree of protection IP20 Ambient temperature ϑ -20 °C to +40 °C Mass 17.5 Assignment to an The assignment considers the maximum peak braking power of the inverter.
  • Page 67 Technical data Technical data of braking resistors, filters, and chokes Assignment to an The assignment considers the maximum peak braking power of the inverter. inverter Braking resistor BR005-070 BR005-170-T BR004-050-01 BR004-070-01 0910 1130 1770 (Parallel connection of 2 braking resist- ors) MDX9_A-...-5_3-..
  • Page 68 Technical data Technical data of braking resistors, filters, and chokes Braking resistor Unit BR1.0-170 Mass Assignment to an The assignment considers the maximum peak braking power of the inverter. inverter Braking resistor BR1.0-170 3000 3800 MDX9_A-...-5_3-.. 4700 5880 Technical data of BR..-T Specifications for BR..-T Design Signal contact connection cross section...
  • Page 69 Technical data Technical data of braking resistors, filters, and chokes Dimension drawings and dimensions Wire resistor M../PG.. M../PG.. 18874863883 Braking resistor Main dimensions in mm Mounting dimensions in mm Cable gland BR100-006-T M25 + M12 BR47-010-T M25 + M12 BR147-T PG16 + M12 BR247-T PG16 + M12...
  • Page 70 Technical data Technical data of braking resistors, filters, and chokes Grid resistor mounting position 2 18874876043 Braking resistor Main dimensions in mm Mounting dimensions in mm Cable gland BR003-420-T 10.5 — — BR1.0-170 10.5 — — ® Product Manual – MOVIDRIVE system...
  • Page 71 Technical data Technical data of braking resistors, filters, and chokes Frame resistor M../PG.. M../PG.. 18874873611 Braking resistor Main dimensions in mm Mounting dimensions in mm Cable gland BR027-042-T M25 + M12 BR015-042-T M25 + M12 Flat type resistor 18874878475 Braking resistor Main dimensions in mm Mounting dimensions in mm Cable gland...
  • Page 72 Technical data Technical data of braking resistors, filters, and chokes 2.10.2 TCB thermal circuit breaker option General The TCB thermal circuit breaker protects the braking resistor from constant overload and protects in case of a short circuit in the cable or the braking resistor. The setting range of the thermal circuit breaker has to be selected in such a way that it corresponds to the tripping current I of the braking resistor.
  • Page 73 Technical data Technical data of braking resistors, filters, and chokes Dimension drawing 17195255435 ® Product Manual – MOVIDRIVE system...
  • Page 74 Technical data Technical data of braking resistors, filters, and chokes 2.10.3 Line filter Line filters are used to suppress interference emission on the line side of inverters. INFORMATION: • Do not switch between the NF... line filter and inverter. UL and cUL approval The listed line filters have cRUus approvals independent of the application inverter.
  • Page 75 Technical data Technical data of braking resistors, filters, and chokes Dimension drawings and dimensions 18891135115 Line filter Main dimensions in mm Mounting dimensions in mm Port NF0055-503 — NF0120-503 — NF0220-503 — 9007218145873675 Line filter Main dimensions in mm Mounting dimensions in mm Port NF0420-513 NF0910-523...
  • Page 76 Technical data Technical data of braking resistors, filters, and chokes 2.10.4 Line choke Using line chokes is optional: • To support overvoltage protection • To smoothen the line current, to reduce harmonics • Protection in the event of distorted line voltage •...
  • Page 77 Technical data Technical data of braking resistors, filters, and chokes Dimension drawings and dimensions 18891130251 Line choke Main dimensions in mm Mounting dimensions in mm Port ND0070-503 ND0160-503 ND0300-503 ND0420-503 20917778571 Line choke Main dimensions in mm Mounting dimensions in mm Port ND0910-503 ND1800-503...
  • Page 78 Technical data Technical data of braking resistors, filters, and chokes 2.10.5 Output filter Description of the output filter HF.. type output filters are sine filters used to smooth the output voltages of inverters. • Discharge currents in the motor cables are suppressed. •...
  • Page 79 Technical data Technical data of braking resistors, filters, and chokes Dimension drawings and dimensions 9007218523812619 Output filter Main dimensions in mm Mounting dimensions in mm Connection HF0055-503 – HF0125-503 – HF0240-503 – HF0460-503 – HF0650-503 HF1150-503 ® Product Manual – MOVIDRIVE system...
  • Page 80 Technical data Technical data of braking resistors, filters, and chokes 2.10.6 Output choke Description of output choke HD.. type output chokes suppress interference emitted from unshielded motor cables. UL and cUL approval The listed output chokes have cRUus approvals independent of the application in- verter.
  • Page 81 Technical data Technical data of braking resistors, filters, and chokes Dimension drawings and dimensions 9007218145873675 Line filter Main dimensions in mm Mounting dimensions in mm Connection HD0125-503 HD0240-503 HD0460-503 HD1000-503 143.5 HD2000-503 152.5 160.5 ® Product Manual – MOVIDRIVE system...

  • Page 82: Configuration

    Configuration SEW-Workbench Configuration SEW-Workbench The SEW-Workbench is the central configuration software for inverters from SEW‑EURODRIVE. All necessary configurations can be processed, from entering the application to gear unit, motor and inverter calculations. Other features are optimization of the various axis cycles including the selection of accessories and a fault check of the entire drive system configuration.

  • Page 83: Schematic Workflow For Project Planning

    Configuration Schematic workflow for project planning Schematic workflow for project planning The following flow diagram illustrates the drive selection procedure for a positioning drive. The drive consists of a gearmotor that is supplied by an application inverter. Necessary information regarding the machine to be driven •...

  • Page 84: Drive Selection

    Configuration Drive selection Drive selection For drive selection, in addition to the travel diagram that describes the exact travel cycle, a large number of additional specifications must be made about the operating and ambient conditions. It is first necessary to have data for the machine to be driven such as mass, setting range, speed, information about the mechanical design and so on in order to select the drive correctly.
  • Page 85 Configuration Drive selection Requirements for third-party motors The connected third-party motor has to be designed in inverter mode for these DC link voltages. The inverters pulse the DC voltage of the DC link U to the supply cables to the mo- tor.
  • Page 86 Configuration Drive selection 3.3.2 Group drive and multi-motor drive Group drive of asynchronous motors A group drive is a group of asynchronous motors of any power rating. The motors do not have a rigid mechanical connection or only a connection that is subject to slip and are connected to an electrically parallel inverter.
  • Page 87 Configuration Drive selection • Note the permitted length of all motor leads connected in parallel: ≤ l = Maximum total length of the motor leads connected in parallel = Permitted motor lead length n = Number of motors connected in parallel •...
  • Page 88 Configuration Drive selection 3.3.4 General requirements for encoders Valid motor encoders from SEW‑EURODRIVE The following overview shows the motor encoders from SEW‑EURODRIVE that are ® valid for use with MOVIDRIVE . For information on the respective encoder cables, refer to the chapter "Prefabricated cables" (→ 2 154). A.7Y E.7S, E.7R, E.7C A.7W...

  • Page 89: Recommendations For Motor And Inverter Selection

    Configuration Recommendations for motor and inverter selection Recommendations for motor and inverter selection The basis for motor selection are the limit characteristic curves of the motors in in- verter operation. The limit characteristic curve states the torque characteristic of the motor depending on the speed.
  • Page 90 Configuration Recommendations for motor and inverter selection Typical characteristic curve of synchronous motors 500 % 400 % 300 % 200 % 100 % 1000 1500 2000 2500 3000 3500 9007217201768843 Thermal limit characteristic curve S1 operation Dynamic limit torque 3.4.3 Motor selection for asynchronous motors The mechanical resistance of the motor against the overload, which might exceed the permitted limit values, must be strictly checked.
  • Page 91 Configuration Recommendations for motor and inverter selection PLUS The described restrictions do not apply in control mode VFC with encoder. In com- parison to operation without encoder, higher dynamic properties can be achieved with an encoder. When determining the maximum speed, observe that the breakdown torque M is re- duced in an quadratic relationship in the field weakening range.
  • Page 92 Configuration Recommendations for motor and inverter selection Package Overload capacity in relation to the nominal torque Dynamics 2 (D2) 300% – 350% To obtain an optimal adjustment of the motor speed to the required controller output limit of the application, SEW‑EURODRIVE offers DRL.. servomotors with the following 4 rated speeds: •...
  • Page 93 Configuration Recommendations for motor and inverter selection 3.4.6 Synchronous servomotors in control mode CFC In general, synchronous servomotors and the corresponding inverters are designed for a high short-time overload capacity. This allows a multiple of the nominal torque. When using the following CMP.. motors in the higher speed ranges, it is recommen- ded to only set the PWM frequencies 8 kHz or 16 kHz.

  • Page 94: Motor-Inverter Assignments

    Configuration Motor-inverter assignments Motor-inverter assignments ® The following motor-inverter assignments apply to MOVIDRIVE system and ® MOVIDRIVE technology. 3.5.1 Technical data DRN.. motors Rated power Rated torque Rated speed Rated current cosφ Power factor Short for "International Efficiency" (international efficiency classes IE1 – IE4) η...
  • Page 95 Configuration Motor-inverter assignments IE3 DRN.. motors, 400 V, 50 Hz, 4-pole Information on motors Motor cosφ η η η 100% DRN63MS4 0.12 0.83 1380 0.64 58.3 63.9 64.8 DRN63M4 0.18 1.25 1375 0.57 0.65 65.1 69.4 69.9 DRN71MS4 0.25 1405 0.72 0.66 70.1 73.5 73.5...
  • Page 96 Configuration Motor-inverter assignments Further information on motors and brakemotors Motor BE.. BMot BMot min-1 1000 DRN63MS4 0.12 0.83 1380 2.95 BE03 3.63 1000 1000 DRN63M4 0.18 1.25 1375 3.76 BE03 4.44 1000 6200 DRN71MS4 0.25 1405 5.42 BE03 6.11 9700 5000 DRN71M4 0.37...
  • Page 97 Configuration Motor-inverter assignments 3.5.2 Motor-inverter assignments DRN.. motors, f = 4 kHz Nominal output current of the inverter Maximum output current of inverter Peak torque of the motor Base speed of the motor base ® PLUS MOVIDRIVE system/technology – 400 V, 50 Hz, VFC Inverter 0020 0025...
  • Page 98 Configuration Motor-inverter assignments ® PLUS MOVIDRIVE system/technology – 230 V, 50 Hz, VFC Motor 0070 0093 0140 0213 0290 0420 0570 21.3 18.6 42.3 DRN90S4 23.8 min-1 1149 base DRN90L4 32.4 min-1 1148 1152 base DRN100LS4 M 38.5 47.8 min-1 1232 1157 1105 base...
  • Page 99 Configuration Motor-inverter assignments 3.5.3 Technical data of DRL.. motors Key to the technical data for asynchronous DRL.. servomotors The following table lists the short symbols used in the "Technical data" tables. Rated speed Rated torque Rated current Mass moment of inertia of the motor Maximum limit torque (dynamics package 1) Maximum limit torque (dynamics package 2) Mass of the motor...
  • Page 100 Configuration Motor-inverter assignments Asynchronous DRL.. servomotors 4-pole DRL.. servomotors for 400 V, 50 Hz Motor type Nm/A 1200 DRL71S4 1.18 1.02 0.62 2.66 DRL71M4 1.36 0.80 2.93 DRL80S4 2.15 1.95 0.88 3.33 11.5 14.9 DRL80M4 2.64 1.10 3.60 15.2 21.5 DRL90L4 4.14 2.21 3.63 22.5...
  • Page 101 Configuration Motor-inverter assignments Motor type Nm/A 2100 DRL71S4 1.70 1.08 1.53 DRL71M4 2.25 1.39 1.69 DRL80S4 3.59 3.22 1.52 1.92 11.5 14.9 DRL80M4 4.60 1.91 2.07 15.2 21.5 DRL90L4 7.21 3.84 2.08 22.5 43.5 DRL100L4 13.4 4.63 1.87 DRL132S4 21.4 20.3 7.07 2.02...
  • Page 102 Configuration Motor-inverter assignments 4-pole DRL.. servomotors/brakemotors for 400 V, 50 Hz Motor type BE.. Mot_BE 1200 DRL71S4 1.18 BE05 DRL71M4 12.6 DRL80S4 2.15 15.2 19.4 DRL80M4 18.9 DRL90L4 28.5 49.5 DRL100L4 DRL132S4 12.6 BE11 DRL132MC4 17.6 BE11 DRL160M4 25.5 BE20 DRL160MC4 BE20 DRL180S4 34.5 BE30...
  • Page 103 Configuration Motor-inverter assignments Motor type BE.. Mot_BE 3000 DRL71S4 2.68 BE05 DRL71M4 3.55 12.6 DRL80S4 4.82 15.2 19.4 DRL80M4 18.9 DRL90L4 28.5 49.5 DRL100L4 16.6 DRL132S4 25.5 BE11 DRL132MC4 34.8 BE11 DRL160M4 BE20 DRL160MC4 BE20 DRL180S4 70.1 BE30 1030 DRL180M4 BE30 1250 DRL180L4...
  • Page 104 Configuration Motor-inverter assignments 3.5.4 Motor-inverter assignments DRL.. motors, f = 4 kHz Nominal output current of the inverter Maximum output current of inverter Peak torque of the motor Base speed of the motor base ® MOVIDRIVE system/technology – rated motor speed 1200 min , dynamics package 1, CFC Inverter 0020...
  • Page 105 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor DRL180LC4 M 1101 1135 base DRL200L4 1123 1034 1211 base DRL225S4 1103 1204 base DRL225MC4 M 1212 1144 base ® MOVIDRIVE system/technology –...
  • Page 106 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor DRL180M4 1559 1926 base DRL180L4 1594 1628 1838 base DRL180LC4 M 1612 1523 base DRL200L4 1623 1534 base DRL225S4 1610 base ®...
  • Page 107 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor DRL180S4 1999 2323 base DRL180M4 2043 2131 2428 base DRL180L4 2025 2024 base DRL180LC4 M 2149 2034 base DRL200L4 2041 base ®...
  • Page 108 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor DRL180S4 2827 3028 base DRL180M4 2897 2739 base DRL180L4 3091 2906 base DRL180LC4 M 3179 base ® MOVIDRIVE system/technology – rated motor speed 1200 min , dynamics package 2, CFC Inverter 0020...
  • Page 109 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor DRL180M4 1057 base DRL180L4 1162 1013 base DRL180LC4 M 1101 1004 base DRL200L4 1123 1034 1000 base DRL225S4 1103 1048 base DRL225MC4 M 1212...
  • Page 110 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor DRL160MC4 M 1656 1515 1365 1362 1511 base DRL180S4 1629 1435 1303 1354 base DRL180M4 1497 1400 1346 base DRL180L4 1594 1444 1374...
  • Page 111 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor DRL160M4 2078 1876 1752 1944 base DRL160MC4 M 2272 2069 1911 1823 base DRL180S4 1999 1814 1726 base DRL180M4 2043 1858 1805 base...
  • Page 112 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor DRL160M4 2897 2677 2571 base DRL160MC4 M 2880 2668 2554 base DRL180S4 2827 2668 base DRL180M4 2897 2739 base DRL180L4 3091 2906 base...
  • Page 113 Configuration Motor-inverter assignments 3.5.5 Technical data of CMP.. motors Key to the technical data Rated speed Standstill torque (thermal continuous torque at low speeds) Standstill current Dynamic limit torque Maximum permitted motor current Standstill torque with forced cooling fan Standstill current with forced cooling fan Mass moment of inertia of the motor Mass moment of inertia of the brakemotor bmot...
  • Page 114 Configuration Motor-inverter assignments CMP40 to CMP112, 400 V system voltage cold Motor Ω CMP71S 19.2 3.13 33.5 3.48 CMP71M 30.8 13.7 4.17 21.6 1.87 CMP71L 13.1 46.9 10.1 11.4 6.27 16.2 CMP80S 13.4 42.1 18.5 12.8 15.3 CMP80M 18.7 62.6 13.4 16.5 12.1 10.5...
  • Page 115 Configuration Motor-inverter assignments cold Motor Ω CMP40S 11.9 27.5 CMP40M 0.95 0.15 45.9 19.9 56.3 CMP50S 1.32 0.42 37.2 11.6 62.4 CMP50M 10.3 13.1 3.35 0.67 20.7 5.29 66.3 CMP50L 3.15 15.4 19.5 0.92 14.6 3.57 CMP63S 3.05 11.1 18.3 1.15 18.3 3.35...
  • Page 116 Configuration Motor-inverter assignments CMP40 – 100, 230 V system voltage cold Motor Ω CMP40S 11.9 27.5 CMP40M 0.15 18.4 7.85 35.7 CMP50S 1.64 0.42 24.3 7.39 50.4 CMP50M 2.84 10.3 17.05 0.67 13.5 3.41 53.7 CMP50L 3.84 15.4 23.1 0.92 9.79 2.34 55.7 CMP63S...
  • Page 117 Configuration Motor-inverter assignments 3.5.6 Motor-inverter assignments CMP.. motors, 400 V, f = 4 kHz Nominal output current of the inverter Maximum output current of inverter Peak torque of the motor Base speed of the motor base ® MOVIDRIVE system/technology – 400 V, rated speed 2000 min-1, f = 4 kHz, non-ventilated Inverter 0020...
  • Page 118 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor CMP112E min-1 2000 2000 2000 2000 ® MOVIDRIVE system/technology – 400 V, rated speed 3000 min-1, f = 4 kHz, non-ventilated Inverter 0020 0025 0032...
  • Page 119 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor CMP100S 32.3 40.4 55.2 64.6 68.3 min-1 3000 3000 3000 3000 3000 CMP100M 45.4 65.8 82.7 min-1 3000 3000 3000 3000 3000 CMP100L...
  • Page 120 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor CMP63L 8.31 11.1 13.8 17.9 22.2 26.2 30.4 min-1 4500 4500 4500 4500 4500 4500 4500 CMP112S 45.2 58.7 77.8 min-1 4500 4500...
  • Page 121 Configuration Motor-inverter assignments 3.5.7 Motor-inverter assignments CMP.. motors, 400 V, f = 8 kHz Nominal output current of the inverter Maximum output current of inverter Peak torque of the motor Base speed of the motor base ® MOVIDRIVE system/technology – 400 V, rated speed 2000 min-1, f = 8 kHz, non-ventilated Inverter 0020...
  • Page 122 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor CMP112E min-1 2000 2000 2000 2000 ® MOVIDRIVE system/technology – 400 V, rated speed 3000 min-1, f = 8 kHz, non-ventilated Inverter 0020 0025...
  • Page 123 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor CMP100S 32.3 40.4 55.2 64.6 68.3 min-1 3000 3000 3000 3000 3000 CMP100M 45.4 65.8 82.7 min-1 3000 3000 3000 3000 3000 CMP100L...
  • Page 124 Configuration Motor-inverter assignments Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor CMP63L 8.31 11.1 13.8 17.9 22.2 26.2 30.4 min-1 4500 4500 4500 4500 4500 4500 4500 CMP71S 9.43 11.5 14.4 16.8 18.5 19.2...
  • Page 125 Configuration Motor-inverter assignments ® MOVIDRIVE system/technology – 400 V, rated speed 6000 min-1, f = 8 kHz, non-ventilated Inverter 0020 0025 0032 0040 0055 0070 0095 0125 0160 0240 0320 0460 0620 0750 12.5 Motor CMP40S 1.46 min-1 6000 6000 6000 CMP40M 2.64 3.12 3.64...
  • Page 126 Configuration Motor-inverter assignments 3.5.8 Motor-inverter assignments CMP.. motors, 230 V, f = 4 kHz ® MOVIDRIVE system/technology – 230 V, rated speed 4500 min-1, non-ventilated Motor 0070 0093 0140 0213 0290 0420 0570 21.3 18.6 42.3 CMP50S min-1 4500 CMP50M 7.43 9.11 10.3 min-1 4500...
  • Page 127 Configuration Motor-inverter assignments 3.5.9 Motor-inverter assignments CMP.. motors, 230 V, f = 8 kHz ® MOVIDRIVE system/technology – 230 V, rated speed 3000 min-1, non-ventilated Motor 0070 0093 0140 0213 0290 0420 0570 21.3 18.6 42.3 CMP40S min-1 3000 CMP40M min-1 3000 CMP50S min-1 3000...
  • Page 128 Configuration Motor-inverter assignments Motor 0070 0093 0140 0213 0290 0420 0570 21.3 18.6 42.3 CMP100L 67.9 min-1 3000 ® Product Manual – MOVIDRIVE system...
  • Page 129 Configuration Motor-inverter assignments ® MOVIDRIVE system/technology – 230 V, rated speed 4500 min-1, non-ventilated Motor 0070 0093 0140 0213 0290 0420 0570 21.3 18.6 42.3 CMP40S min-1 4500 CMP40M min-1 4500 CMP50S 4.88 min-1 4500 4500 CMP50M 6.12 7.43 9.11 10.3 min-1 4500 4500...
  • Page 130 Configuration Motor-inverter assignments ® MOVIDRIVE system/technology – 230 V, rated speed 6000 min-1, non-ventilated Motor 0070 0093 0140 0213 0290 0420 0570 21.3 18.6 42.3 CMP40S min-1 6000 CMP40M 3.62 min-1 6000 6000 CMP50S 4.01 4.72 min-1 6000 6000 6000 CMP50M 4.87 7.54 9.96...

  • Page 131: Selection Of An Application Inverter

    Configuration Selection of an application inverter Selection of an application inverter The selection of the application inverter is based on the course of the output current over time. The required current has to be determined from the required torque charac- teristic of the connected motor.
  • Page 132 Configuration Selection of an application inverter 3.6.1 Overload capacity Load cycle with base load current – typical for the selection of asynchronous and servomotors The characteristic load cycle consists of a load and a load relief period. In the load re- lief period, the output current must not exceed the specified value.
  • Page 133 Configuration Selection of an application inverter 3.6.2 Derating Due to the following operating and ambient conditions, a reduction of the output cur- rent may be necessary. Derating due to the rotary field frequency The specified nominal output current I of the application inverter is the rms value. The increased load on the power semiconductors has to be considered especially for slow rotating fields and rotating fields at standstill.
  • Page 134 Configuration Selection of an application inverter Derating due to line voltage and temperature Derating depending on the line voltage V and the ambient temperature T: line : 3 × 400 V : 3 x 500 V line line Inverter Continuous current I cont 4 kHz = 125% – (T – 40 °C) × 2.5% = 114% –...

  • Page 135: Braking Resistor Selection

    Configuration Braking resistor selection Braking resistor selection 3.7.1 Tables of braking resistors ® The following braking resistors are intended for use with MOVIDRIVE system. The technical data is valid in the temperature range -20 °C to +40 °C. Information on ambient temperature For ambient temperatures of more than +40°C, the continuous power must be re- duced by 4% for every 10 ...
  • Page 136 Configuration Braking resistor selection Braking resistor type BR.. Unit BR010-024 BR010-050-T BR010-108-T Part number 17983266 17983274 19155298 Peak braking power 57.2 Continuous braking 100% cdf 10.8 power Current-carrying 50% cdf 18.4 capacity 25% cdf 15.0 32.4 12% cdf 14.4 22.5 48.6 6% cdf 22.8...
  • Page 137 Configuration Braking resistor selection 3.7.2 Selection criteria The selection of the braking resistor takes place via the SEW-Workbench. The neces- sary selection parameters for the braking resistor are calculated during the project planning procedure. Depending on these selection parameters, a braking resistor is selected from the table.
  • Page 138 Configuration Braking resistor selection Overload factor OF Flatpack resistors 10 % 100 % 20532478731 ..% ED Wire resistors, frame resistors 100% 2990447883 ..% ED 1.12 ® Product Manual – MOVIDRIVE system...
  • Page 139 Configuration Braking resistor selection Grid resistors 100% 2990530187 ..% ED 1.12 ® Product Manual – MOVIDRIVE system...
  • Page 140 Configuration Braking resistor selection Peak braking power The maximum permitted peak braking power is specified by the resistance value and the DC link voltage. The maximum peak braking power required by the application is calculated from the regenerative parts within a cycle. The peak braking power required by the application must be lower than the maximum permitted peak braking power of the braking resistor.
  • Page 141 Configuration Braking resistor selection 3.7.3 Calculation example Given: Peak braking power: 13 kW Average braking power: 6 kW Braking time: 7 s Cycle duration: 28 s Inverter used: MDX90A-0095-5-3-4-S00 Required: Braking resistor BR... Calculation: 1) Determining the cyclic duration factor Cyclic duration factor cdf = braking time/cycle duration Cyclic duration factor cdf = (7 s/28 s) ×...
  • Page 142 Configuration Braking resistor selection 3.7.5 Protection against thermal overload of the braking resistor To avoid thermal damage of the braking resistor as well as subsequent damage, the braking resistor has to be thermally monitored. SEW‑EURODRIVE suggests the fol- lowing options: •...

  • Page 143: Supply System Cable And Motor Cable

    Configuration Supply system cable and motor cable Supply system cable and motor cable 3.8.1 Supply system cable Dimensioning of the supply system cable generally takes place plant-specifically and depends on the design of the line connection. Line connection is shown in the chapter "Power connection" (→ 2 271).
  • Page 144 Configuration Supply system cable and motor cable 3.8.2 Motor cable Cable length ® For MOVIDRIVE system application inverters, a maximum motor cable length must not be exceeded. The following configuration guidelines must be observed: • When shielded motor cables are used, a capacitance core/shield of maximum 280 pF/m must not be exceeded.

  • Page 145: Signal Lines

    Configuration Signal lines Voltage drop Select the cable cross section of the motor cable so the voltage drop is as small as possible. An excessively high voltage drop means that the full motor torque is not achieved. Determine the expected voltage drop based on the following table. With shorter cables, you can convert the voltage drop proportionally.

  • Page 146: Emc-Compliant Installation According To En 61800-3

    Configuration EMC-compliant installation according to EN 61800-3 3.10 EMC-compliant installation according to EN 61800-3 ® MOVIDRIVE application inverters are designed as components for installation in ma- chinery and systems. They comply with the EMC product standard EN 61800-3 "Vari- able-speed electrical drives". Provided the EMC-compliant installation is observed, the appropriate requirements for a CE marking are met on the basis of the EMC Directive 2014/30/EU.

  • Page 147: Line Components

    Configuration Line components 3.11 Line components 3.11.1 Line fuses and miniature circuit breakers Line fuses and miniature circuit breakers are used for protecting the supply system cables. For fusing, use fuses and miniature circuit breakers with the following proper- ties: Type class Prerequisite Fuses in utilization categor-...
  • Page 148 Configuration Line components 3.11.3 NF line filter A line filter reduces interference emission via the supply system cable, which is gener- ated by the application inverter. The line filter mainly serves to meet interference voltage limit requirements in the frequency range from 150 kHz to 30 MHz at the line connection.
  • Page 149 Configuration Line components 3.11.4 ND line choke The main reason for using line chokes is the reduction of grid disturbances that may occur due to harmonic currents. In addition, line chokes improve the overvoltage pro- tection. The line choke has to be selected according to the following table. Technical data Line choke ND0070-503...
  • Page 150 Configuration Line components 3.11.5 Residual current device WARNING No protection against electric shock if an incorrect type of residual current device is used. Severe or fatal injuries. • The product can cause direct current in the PE conductor. If a residual current device (RCD) or a residual current monitoring device (RCM) is used for protec- tion in the event of a direct or indirect contact, only a type B RCD or RCM is per- mitted on the supply end of the product.

  • Page 151: V Supply Voltage Selection

    Configuration 24 V supply voltage selection 3.12 24 V supply voltage selection The MDX90A-... application inverter requires an external 24 V voltage supply for the electronics. The MDX91A-... application inverter has an internal 24  V voltage supply (80  W) that can also be supported externally. 3.12.1 Project planning for 24 V supply power For dimensioning the 24 V supply voltage, it is necessary to know the power and cur-...
  • Page 152 Configuration 24 V supply voltage selection Card Power consumption CSS21A 12.3 W CSB31A 24.3 W CSS31A 24.3 W ® Product Manual – MOVIDRIVE system...
  • Page 153 Configuration 24 V supply voltage selection 3.12.3 Project planning example The following example illustrates project planning of the 24  V voltage supply for the ® MOVIDRIVE system application inverter MDX90B0040-5E3-4-00 with CES11A multi- encoder card and I/O expansion CID21A. The DI00 digital input (output stage enable) is supplied with voltage by the inverter. The motor brake is controlled via DB00.

  • Page 154: Prefabricated Cables

    Prefabricated cables Meaning of the symbols Prefabricated cables The overviews showing the assignment of the cables to the motors apply also to any motors of the respective motor type that can be used in areas subject to a risk of ex- plosion.

  • Page 155: Power Cables For Cmp.. Motors

    Prefabricated cables Power cables for CMP.. motors Power cables for CMP.. motors 4.2.1 Overview CMP(Z)../SM.. --> [2] --> [2] --> [1] --> [1] RUN ERR RUN ERR --> [3] --> [5] --> [3] --> [5] --> [4] --> [4] --> [4] -->...
  • Page 156 Prefabricated cables Power cables for CMP.. motors 4.2.2 Motor cable with connector on motor end Motor cable illustration 4818831115 Types of CMP.. motor cables Plug connector Number of cores and cable cross Part number Installation type section SM11 4 × 1.5 mm 05904544 Fixed installation SM11...
  • Page 157 Prefabricated cables Power cables for CMP.. motors Illustration of motor extension cable 4818839179 Types of CMP.. motor extension cables Plug connector Number of cores and cable cross Part number Installation type section SM11 4 × 1.5 mm 13332457 Cable carrier installation SM12 4 ×...
  • Page 158 Prefabricated cables Power cables for CMP.. motors 4.2.3 Brakemotor cables for BP/BK brake with connector at motor end Figure of CMP.. brakemotor cables 500 ±5 24323160075 Types of CMP.. brakemotor cables Plug connector Number of cores and cable cross Part number Installation type section SB11...
  • Page 159 Prefabricated cables Power cables for CMP.. motors 4.2.4 Brakemotor cables for BY brake with connector at motor end Figure of CMP.. brakemotor cables 14824163467 Types of CMP.. brakemotor cables Plug connector Number of cores and cable cross Part number Installation type section SB11 4 ×...
  • Page 160 Prefabricated cables Power cables for CMP.. motors 4.2.5 Extension cables BP/BK and BY brakes Illustration of brakemotor extension cable 4818839179 Types of CMP.. brakemotor extension cables Plug connector Number of cores and cable cross Part number Installation type section SB11 4 ×...

  • Page 161: Encoder Cables For Cmp.. Motors

    Prefabricated cables Encoder cables for CMP.. motors Encoder cables for CMP.. motors 4.3.1 Overview CMP(Z).. /SM.. CMP(Z).. /SB.. CMP(Z).. /KKS /RH1M CMP(Z).. /KK /RH1M 01995421 /KKS 01995413 13356356 13327429 13327437 13356364 RUN ERR RUN ERR 13324535 13356291 13324551 13356305 01995391 01995405 CMP(Z)..
  • Page 162 Prefabricated cables Encoder cables for CMP.. motors 4.3.2 Resolver Illustration of RH1M resolver cable 4819185931 Types of RH1M resolver cables Number of cores and cable cross section Part number Installation type 5 × 2 × 0.25 mm 13327429 Fixed installation 5 × 2 × 0.25 mm 13327437 Cable carrier installation Illustration of RH1M extension cable...
  • Page 163 Prefabricated cables Encoder cables for CMP.. motors ® 4.3.3 HIPERFACE encoders ® Illustration of HIPERFACE encoder cable 4819185931 ® Types of HIPERFACE encoder cables Number of cores and cable cross section Part number Installation type 4 × 2 × 0.25 mm + 2 ×...

  • Page 164: Single-Cable Technology For Cmp.. Motors

    Prefabricated cables Single-cable technology for CMP.. motors Single-cable technology for CMP.. motors 4.4.1 Overview CMP(Z)../SH.. --> [2] --> [1] RUN ERR RUN ERR --> [1] CMP../SH.. /BK.. CMP../SH.. /BP.. CMP(Z)../SH.. /BY.. --> [2] 9007215244070283 Motor/brakemotor cable Extension cable 4.4.2 Types of motor/brakemotor cable Plug connector Number of cores and cable cross section Part number...
  • Page 165 Prefabricated cables Single-cable technology for CMP.. motors 4.4.3 Types of extension cables Plug connector Number of cores and cable cross section Part number Installation type SH11 4 × 1.5 mm + 3 × 1 mm + 4 × 0.34 mm 18177069 SH12 4 × 2.5 mm + 3 ×...

  • Page 166: Power Cables For Cfm.. Motors

    Prefabricated cables Power cables for CFM.. motors Power cables for CFM.. motors 4.5.1 Overview CFM.. /SM.. --> [2] --> [2] --> [1] --> [1] RUN ERR RUN ERR --> [3] --> [3] --> [4] --> [4] CFM.. /SB.. /BR.. 9007214064524299 Motor cable ../SM.. (→ 2 167) Brakemotor cable ../SB..
  • Page 167 Prefabricated cables Power cables for CFM.. motors 4.5.2 Motor cable Motor cable illustration 4836649099 Motor cable types The cables are equipped with a connector for motor connection and conductor end sleeves for inverter connection. Plug connector Number of cores and cable cross Part number Installation type section...
  • Page 168 Prefabricated cables Power cables for CFM.. motors 4.5.3 Motor extension cable Illustration of motor extension cable 4838345099 Types of motor extension cables The cables are equipped with a connector and adapter for extending the CFM.. motor cable. Plug connector Number of cores and cable cross Part number Installation type section...
  • Page 169 Prefabricated cables Power cables for CFM.. motors 4.5.4 Brakemotor cable Illustration of brakemotor cable 4838352907 Types of brakemotor cables Plug connector Number of cores and cable cross Part number Installation type section SB51/SB61 4 × 1.5 mm + 3 × 1.0 mm 01991892 Fixed installation SB51/SB61...
  • Page 170 Prefabricated cables Power cables for CFM.. motors 4.5.5 Brakemotor extension cables Illustration of brakemotor extension cable 4838345099 Types of brakemotor extension cables Plug connector Number of cores and cable cross Part number Installation type section SK51/SK61 4 × 1.5 mm + 3 ×...

  • Page 171: Encoder Cables For Cfm.. Motors

    Prefabricated cables Encoder cables for CFM.. motors Encoder cables for CFM.. motors 4.6.1 Overview CFM.. /SM.. CFM.. /SB.. CFM.. /KK CFM.. /KK5 /RH1M CFM.. /KK6 /RH1L /RH1M /RH1L 01995421 01995413 01995898 13327429 13327437 01995901 RUN ERR RUN ERR 13322535 13324578 13324551 13324543 01995391...
  • Page 172 Prefabricated cables Encoder cables for CFM.. motors 4.6.2 Resolver Illustration of RH1M/RH1L resolver cable 4819185931 Types of RH1M/RH1L resolver cables Number of cores and cable cross section Part number Installation type 5 × 2 × 0.25 mm 13327429 Fixed installation 5 × 2 × 0.25 mm 13327437 Cable carrier installation Illustration of RH1M/RH1L extension cable...
  • Page 173 Prefabricated cables Encoder cables for CFM.. motors ® 4.6.3 HIPERFACE encoders ® Illustration of HIPERFACE encoder cable 4819185931 ® Types of HIPERFACE encoder cables Number of cores and cable cross section Part number Routing 6 × 2 × 0.25 mm 13324535 Fixed installation 6 ×...

  • Page 174: Encoder Cables For Dr.. Motors

    Prefabricated cables Encoder cables for DR.. motors Encoder cables for DR.. motors 4.7.1 Overview DR..315 /EH7S 13602659 13623206 RUN ERR RUN ERR 13621998 13617621 13622021 13623192 13621971 13617648 13622048 13621963 18140394 DR.. DR.. 13623184 /ES7S /EG7S /ES7S /EG7S /AH7Y /ES7R /EG7R /ES7R /EG7R...
  • Page 175 Prefabricated cables Encoder cables for DR.. motors A.7Y encoders can be connected only to the CES11A (X17) multi-encoder card. DR..71 – 315 /EK8S /EK8R 13621963 /EK8C /AK8W /AK8Y /AK8H 18139183 28111451 28111478 13617621 13621998 D-Sub --> X.. 13617648 18195393 13621963 18139183 13622021 28111451...
  • Page 176 Prefabricated cables Encoder cables for DR.. motors DR..71-315 DR..71-315 /EK8S /EK8S /EK8R /EI8R /EK8R /EI8R /EK8C /EI8C /EK8C /EI8C /AK8W /AK8W /AK8Y /AK8Y /AK8H /AK8H 13623184 28111486 18140408 28111494 28111451 28111451 28111478 28111478 28111508 28111516 28111435 13621998 13622021 18195393 28111443 13622048 D-Sub -->...
  • Page 177 Prefabricated cables Encoder cables for DR.. motors ® D-Sub --> X.. MOVIDRIVE modular/system/technology Basic device: X15 CES11A multi-encoder card: X17 AK8Y encoders can be connected only to the CES11A multi-encoder card. Motors with terminal strip in the terminal box for encoder signals and thermal monitoring. The signals for thermal monitoring of the motor are not located in the encoder cable.
  • Page 178 Prefabricated cables Encoder cables for DR.. motors 4.7.2 Encoder cable with connection cover and D-sub Illustration of encoder cable 14818281099 Types of encoder cables and encoders Number of cores and cable cross section Part number Installation type 6 × 2 × 0.25 mm 13617621 Fixed installation 6 ×...
  • Page 179 Prefabricated cables Encoder cables for DR.. motors 4.7.4 Encoder cable with M23 and D-sub Illustration of encoder cable 14818370059 Types of encoder cables Number of cores and cable cross section Part number Installation type 5 × 2 × 0.25 mm 13602659 Fixed installation 5 ×...
  • Page 180 Prefabricated cables Encoder cables for DR.. motors 4.7.6 Encoder extension cable with conductor end sleeves and M23 Illustration of encoder extension cable 14818388875 Types of encoder extension cables Number of cores and cable cross section Part number Installation type 6 × 2 × 0.25 mm 13623184 Fixed installation Encoder types...
  • Page 181 Prefabricated cables Encoder cables for DR.. motors 4.7.8 Encoder extension cable with M23 and D-sub Illustration of encoder extension cable 14818406795 Types of encoder extension cables Number of cores and cable cross section Part number Installation type 6 × 2 × 0.25 mm 13621998 Fixed installation Encoder types...

  • Page 182: System Bus And Module Bus Cable

    Prefabricated cables System bus and module bus cable System bus and module bus cable The RJ45 connectors of the system bus and module bus cables and the sockets in the application inverters have been checked for mechanical stability and contact reliability by SEW‑EURODRIVE.
  • Page 183 Prefabricated cables System bus and module bus cable 4.8.2 System bus cable Figure of the cable 9007214291596811 [1] Connector, red [2] Connector, red ® PLUS The 4-pole system bus cable [2] for EtherCAT and SBus is used between the automation components; see figure (→ 2 182). Some of these components are listed here as examples: ®...
  • Page 184 Prefabricated cables System bus and module bus cable Color coding Reserved Orange Reserved Reserved ® Product Manual – MOVIDRIVE system...
  • Page 185 Prefabricated cables System bus and module bus cable 4.8.3 Module bus cable Figure 18027071371 [1] Connector, black [2] Connector, red ® ® PLUS For MOVIDRIVE modular, the 8-pole module bus cable [1] for EtherCAT /SBus and internal signals connects the power supply module to the first axis module and the axis modules to each other;...

  • Page 186: General Information

    General information About this documentation General information About this documentation The current version of the documentation is the original. This documentation is an integral part of the product. The documentation is intended for all employees who perform work on the product. Make sure this documentation is accessible and legible.

  • Page 187: Decimal Separator In Numerical Values

    General information Decimal separator in numerical values Meaning of the hazard symbols The hazard symbols in the safety notes have the following meaning: Hazard symbol Meaning General hazard Warning of dangerous electrical voltage Warning of hot surfaces Warning about suspended load Warning of automatic restart 5.2.3 Structure of embedded safety notes...

  • Page 188: Content Of The Documentation

    General information Content of the documentation Content of the documentation This documentation contains additional safety-related information and conditions for operation in safety-related applications. Other applicable documentation Observe the corresponding documentation for all further components. Product names and trademarks The brands and product names in this documentation are trademarks or registered trademarks of their respective titleholders.
  • Page 189 General information Device availability Device availability This documentation also lists devices that are not yet available at the time of the pub- lication of this document. The following table lists the available application inverters. Accessories required for the inverter operation such as braking resistors, chokes, and filters are available. Type designation MDX9_A-0020-5E3-4-S00/E00 MDX9_A-0025-5E3-4-S00/E00...

  • Page 190: Safety Notes

    Safety notes Preliminary information Safety notes Preliminary information The following general safety notes serve the purpose of preventing injury to persons and damage to property. They primarily apply to the use of products described in this documentation. If you use additional components, also observe the relevant warning and safety notes.

  • Page 191: Designated Use

    Safety notes Designated use Specialist for elec- Any electrotechnical work may only be performed by electrically skilled persons with a trotechnical work suitable education. Electrically skilled persons in the context of this documentation are persons familiar with electrical installation, startup, troubleshooting, and maintenance of the product who possess the following qualifications: •...

  • Page 192: Functional Safety Technology

    Safety notes Functional safety technology Functional safety technology The product must not perform any safety functions without a higher-level safety sys- tem, unless explicitly allowed by the documentation. Transport Inspect the shipment for damage as soon as you receive the delivery. Inform the ship- ping company immediately about any damage.

  • Page 193: Installation/Assembly

    Safety notes Installation/assembly Installation/assembly Ensure that the product is installed and cooled according to the regulations in this doc- umentation. Protect the product from excessive mechanical strain. Ensure that elements are not deformed or insulation spaces are maintained, particularly during transportation. Elec- tric components must not be mechanically damaged or destroyed.

  • Page 194: Electrical Installation

    Safety notes Electrical installation Electrical installation Ensure that all of the required covers are correctly attached after carrying out the elec- trical installation. Make sure that preventive measures and protection devices comply with the applic- able regulations (e.g. EN 60204-1 or EN 61800-5-1). 6.8.1 Required preventive measure Make sure that the product is correctly attached to the ground connection.

  • Page 195: Startup/Operation

    Safety notes Startup/operation 6.10 Startup/operation Observe the safety notes in the chapters Startup and Operation in this documentation. Make sure the connection boxes are closed and screwed before connecting the sup- ply voltage. Depending on the degree of protection, products may have live, uninsulated, and sometimes moving or rotating parts, as well as hot surfaces during operation.

  • Page 196: Device Structure

    Device structure Connection variants Device structure Connection variants ® The MOVIDRIVE system application inverter can be used in the following connection variants: ® • As application inverter in connection with a MOVI-C CONTROLLER power/power eco. ® • As application inverter in connection with a MOVI-C CONTROLLER advanced ®...
  • Page 197 Device structure Connection variants ® ® MOVIDRIVE modular and MOVIDRIVE system RUN ERR RUN ERR 9007214127262859 ® [1] Line voltage [4] MOVIDRIVE modular axis system ® [2] Industrial communication [5] MOVIDRIVE system ® [3] MOVI-C CONTROLLER ® Product Manual – MOVIDRIVE system...
  • Page 198 Device structure Connection variants ® 7.1.2 Application inverter with MOVI-C CONTROLLER advanced ® MOVIDRIVE system 20972835467 Line voltage 3 × AC 380 – 500 V Industrial communication ® MOVI-C CONTROLLER advanced ® MOVIDRIVE system ® Product Manual – MOVIDRIVE system...
  • Page 199 Device structure Connection variants ® ® MOVIDRIVE modular and MOVIDRIVE system RUN ERR RUN ERR 20840829579 Line voltage 3 × AC 380 – 500 V Industrial communication ® MOVI-C CONTROLLER advanced ® MOVIDRIVE modular power supply module MDP.. ® MOVIDRIVE modular single-axis module MDA. ®...
  • Page 200 Device structure Connection variants ® 7.1.3 Application inverter with MOVI-C CONTROLLER standard ® MOVIDRIVE system UHX25A-N 20972837899 Line voltage 3 × AC 380 – 500 V Industrial communication ® MOVI-C CONTROLLER standard ® MOVIDRIVE system ® Product Manual – MOVIDRIVE system...
  • Page 201 Device structure Connection variants ® ® MOVIDRIVE modular and MOVIDRIVE system RUN ERR RUN ERR UHX25A-N 20841203211 Line voltage 3 × AC 380 – 500 V Industrial Communication ® MOVI-C CONTROLLER standard ® MOVIDRIVE modular power supply module MDP.. ® MOVIDRIVE modular single-axis module MDA.

  • Page 202: Product Manual – Movidrive ® System

    Device structure MOVIDRIVE® system nameplate MOVIDRIVE ® system nameplate ® MOVIDRIVE system nameplate 7.2.1 System nameplate 18014413567942667 Device status Serial number 7.2.2 Performance data nameplate 23907979019 Device status ® Product Manual – MOVIDRIVE system...

  • Page 203: Movidrive ® System Type Code

    Device structure MOVIDRIVE® system type code MOVIDRIVE ® system type code ® MOVIDRIVE system type code Example: MDX90A-0125-5E3-X-S00 ® Product family MOVIDRIVE Device type • X = Single-axis inverter • 90 = without DC 24 V switched-mode power supply Series • 91 = with DC 24 V switched-mode power supply Version •...

  • Page 204: Device Structure Of The Application Inverter

    Device structure Device structure of the application inverter Device structure of the application inverter 7.4.1 MDX9_A-0020 – 0040-5_3-.. [20] [10] [17] [18] [11] [19] [16] [12] [13] [14] [15] 27021612063583499 A: View from top W: View from front C: View from bottom [1] X1: Line connection 2 ×...
  • Page 205 Device structure Device structure of the application inverter 7.4.2 MDX9_A-0055 – 0095-5_3-.. MDX9_A-0070 – 0093-2_3-.. [20] [10] [17] [18] [11] [19] [16] [12] [13] [14] [15] 27021612063593227 A: View from top W: View from front C: View from bottom [1] X1: Line connection 2 ×...
  • Page 206 Device structure Device structure of the application inverter 7.4.3 MDX9_A-0125 – 0160-5_3-.. MDX9_A-0140-2_3-.. [20] [10] [17] [18] [11] [19] [16] [12] [13] [14] [15] 27021612063602955 A: View from top W: View from front C: View from bottom [1] X1: Line connection 2 ×...
  • Page 207 Device structure Device structure of the application inverter 7.4.4 MDX9_A-0240 – 0320-5_3-.. MDX9_A-0210 – 0290-2_3-.. [20] [10] [17] [18] [11] [19] [12] [16] [13] [14] [15] 27021612063612683 A: View from top W: View from front C: View from bottom [1] X1: Line connection [6] 2 ×...
  • Page 208 Device structure Device structure of the application inverter 7.4.5 MDX9_A-0460 – 0750-5_3-.. MDX9_A-0420 – 0570-2_3-.. [20] [18] [10] [19] [11] [12] [16] [13] [14] [17] [15] 9007220618454155 A: View from top W: View from front C: View from bottom [1] X1: Line connection 2 ×...
  • Page 209 Device structure Device structure of the application inverter 7.4.6 MDX91A-0910 – 1490-5_3-.. MDX91A-0840 – 1080-2_3-.. [20] [18] [10] [11] [19] [12] [13] [16] [14] [17] [15] 9007222917489675 A: View from top W: View from front C: View from bottom [1] X5: +24 V supply voltage 2 ×...

  • Page 210: Card Slots

    Device structure Card slots Card slots The application inverters can have up to 2 cards installed. The following section de- scribes the assignment of the slots and possible combinations of cards. Type designation Description Slot CES11A Multi-encoder card ® CS..A MOVISAFE safety card CID21A, CIO21A...

  • Page 211: Installation

    Installation Permitted tightening torques Installation ® MOVIDRIVE system application inverters are exclusively suitable for control cabinet installation according to the degree of protection. Permitted tightening torques 0020 – 0055 – 0125 – 0240 – 0460 – 0910 – 1770 – 2500 –...

  • Page 212: Special Aspects When Transporting The Devices

    Installation Special aspects when transporting the devices Special aspects when transporting the devices The rear wall of the housing of the following devices is designed in such a way that you can grip them securely by hand to lift and transport the inverters without damaging them.

  • Page 213: Mechanical Installation

    Installation Mechanical installation Mechanical installation CAUTION Risk of injury to persons and damage to property. Never install defective or damaged products. • Before installing any products, check them for external damage. Replace any damaged products. NOTICE Risk of damage to property due to mounting surfaces with poor conductivity. Damage to the application inverter.
  • Page 214 Installation Mechanical installation 8.3.1 Bore patterns Inverter Dimensions of the device base plate in mm MDX9_A-0020 – 0040-5_3-.. MDX9_A-0055 – 0095-5_3-.. MDX9_A-0070 – 0093-2_3-.. MDX9_A-0125 – 0160-5_3-.. MDX9_A-0140-2_3-... MDX9_A-0240 – 0320-5_3-.. MDX9_A-0213 – 0290-2_3-.. MDX9_A-0460 – 0750-5_3-.. MDX9_A-0420 – 0570-2_3-.. MDX91A-0910 –...
  • Page 215 Installation Mechanical installation 8.3.2 Minimum clearance and mounting position When installing the application inverters in the control cabinet, observe the following: • To ensure unobstructed cooling, leave a minimum clearance of 100  mm above and below the application inverter housings. Make sure air circulation in the clear- ance is not impaired by cables or other installation equipment.

  • Page 216: Covers

    Installation Covers Covers 8.4.1 Covers The application inverter is equipped with a safety cover [1]. Removing the safety cover 14299394571 1. The safety cover [1] has a latching mechanism at the bottom. Pull the lower part of the safety cover away from the application inverter to unlatch it. 2.
  • Page 217 Installation Covers 8.4.2 Touch guards With the following devices, the touch guards must be removed for the line connection and the connection of the motor and the braking resistor: • MDX9_A-0460 – 1490-5_3-.. • MDX9_A-0420 – 1080-2_3-.. Line connection 21425921035 1.
  • Page 218 Installation Covers Connection motor/ braking resistor 21425950603 3. Push the plastic clips of the touch guard [1] to the inside and remove the touch guard [1] by moving it to the front. 4. Remove the 2 screws [2] and remove the touch guard [3] by moving it to the front. ®...

  • Page 219: Control Cabinet Installation

    Installation Control cabinet installation Control cabinet installation 8.5.1 Inverter and bottom shield plate The retaining screws [1] and [2] are screwed into the prepared tapped holes in the mounting plate in the control cabinet but not tightened. 1. Place the application inverter with the slotted holes in the device base plate onto the retaining screws [1] from the top.
  • Page 220 Installation Control cabinet installation 8.5.2 Installation with submounting resistor BR120-001 The MDX90A-0020 – 0040-.. inverters can be installed in the control cabinet together with a braking resistor. The braking resistor is located at the back wall of the inverter and therefore it has the same mounting hole pattern as the inverter. Observe that the retaining screws [1] and [2] must be 20 ...
  • Page 221 Installation Control cabinet installation The hole distance of the submounting braking resistor must be larger than the hole distance of the application inverter. 20363403787 ® Product Manual – MOVIDRIVE system...
  • Page 222 Installation Control cabinet installation 8.5.3 Top shield plate 1. Insert the shield plate [2] so that you can fasten it to the device housing [3] with the screw [1]. 27521510667 8.5.4 Shield plate at bottom of control unit 1. Insert the shield plate [2] so that you can fasten it with the screw [1] in the position [3] shown in the figure.
  • Page 223 Installation Electrical installation Electrical installation DANGER Dangerous voltage levels may still be present inside the device and at the terminal strips up to 10 minutes after the application inverter has been disconnected from the power supply. Severe or fatal injuries from electric shock. To prevent electric shocks: •...
  • Page 224 Installation Electrical installation 8.6.1 General information • Take suitable measures to prevent the motor starting up inadvertently, for example by removing the electronics terminal block X20. Take additional safety measures depending on the application to prevent possible injuries to people and damage to machinery.
  • Page 225 Installation Electrical installation Application inverter Position of the terminal screw MDX9_A-0125 – 0320-5_3-.. On the right side of the application inverter. MDX9_A-0140 – 0290-2_3-.. MDX91A-0910 – 1490-5_3-.. MDX91A-0840 – 1080-2_3-.. 9007214280971403 MDX9_A-0460 – 0750-5_3-.. One screw on the top, another screw on the right side of the application inverter.
  • Page 226 Installation Electrical installation INFORMATION EMC limit values No EMC limits are specified for interference emission in voltage supply systems without a grounded star point (IT systems). The effectiveness of line filters is severely limited. ® Product Manual – MOVIDRIVE system...
  • Page 227 Installation Electrical installation 8.6.4 Line fuses, fuse types Type class Prerequisite Fuses in utilization categor- Fusing voltage ≥ nominal line voltage ies gL, gG Miniature circuit breaker with Nominal miniature circuit breaker voltage ≥ nominal characteristics B, C, D line voltage Nominal currents of the miniature circuit breaker must be 10% higher than the nominal line current of the ap- plication inverter...
  • Page 228 Installation Electrical installation Special aspects for the line connection Note that the IP20 degree of protection is achieved with the following devices only if the terminal studs are protected with special plastic covers against contact. • MDX9_A-0460 – 1490-5_3-.. • MDX9_A-0420 –...
  • Page 229 Installation Electrical installation 3. The plastic covers must be removed in different ways depending on the used cross section. 21439477771 4. Attach the plastic covers at the individual connections. X 1 0 21439475339 8.6.6 Motor connection For the terminal assignment for motor connection of the various size, refer to the chapter "Terminal assignment" (→ 2 266).
  • Page 230 Installation Electrical installation 8.6.7 Line contactor The following table provides an overview of when a line contactor is required and what kind of preventive measures must be taken for the used braking resistor, see also the chapter "Protection against thermal overload of the braking resistor" (→ 2 250). Inverter type Braking resistor type Protective element/preven-...
  • Page 231 Installation Electrical installation 8.6.8 24 V supply voltage ® MOVIDRIVE MDX90A... must be connected to an external 24 V supply voltage. ® MOVIDRIVE MDX91A has an integrated 24 V power supply unit with a power rating of 80 W. An external power supply unit can be connected as well. The maximum cable cross section is 2.5 mm Whether an external 24 V supply is required for MDX91A depends on the load e.g.
  • Page 232 Installation Electrical installation 8.6.9 Motor output NOTICE Connecting capacitive loads to the application inverter. Destruction of the application inverter. • Only connect ohmic/inductive loads (motors). • Never connect capacitive loads. Special aspects for the motor connection Note that the IP20 degree of protection is achieved with the following devices only if the terminal studs are protected with special plastic covers against contact.
  • Page 233 Installation Electrical installation 8.6.12 Brake output INFORMATION • If the brake connection and the motor connection are combined in one power cable, the brake cable must be shielded separately. The shielding of the power cable and the brake cable must be connected to the motor and application inverter over a large area.
  • Page 234 Installation Electrical installation ® PLUS 8.6.14 System bus EtherCAT /SBus ® PLUS For connecting the EtherCAT /SBus system bus, SEW‑EURODRIVE recommends using only prefabricated cables from SEW‑EURODRIVE. NOTICE Use of wrong cables Damage to the application inverter Only 4-pole cables are permitted to be used as system bus cables [2]. If an 8-pole cable is used, malfunctions or failures may occur at the connected devices.
  • Page 235 Installation Electrical installation Correct cabling ® Module bus cable In the case of MOVIDRIVE modular, the 8-core module bus cable connects the power supply module to the first axis module and the axis modules to one another; see figure (→ 2 234). ® In the case of MOVIDRIVE modular, in addition to the system bus communication, the module bus is routed in the cable for information inside the device.
  • Page 236 Installation Electrical installation 8.6.15 Encoders Installation notes for encoder connection Encoder cables • Use shielded cables with twisted pair cores. Connect the shield over a wide area at both ends: – At the encoder in the cable gland or in the encoder plug, –...

  • Page 237: Installing Options And Accessories

    Installation Installing options and accessories Installing options and accessories 8.7.1 Installing a card Observe the safety notes in the chapter "Electrical installation" (→ 2 223). For information on which option card can be installed in which slot, refer to the chapter "Card slots". 1.
  • Page 238 Installation Installing options and accessories INFORMATION Hold the card by its edges only. 5. Take the card [1] and insert it in the slot with slight pressure. 15160623243 6. Screw in the card with the specified tightening torque (→ 2 211). 15160625675 ® Product Manual –...
  • Page 239 Installation Installing options and accessories 7. Install the safety cover [1] at the front of the application inverter. 14578455307 ® Product Manual – MOVIDRIVE system...
  • Page 240 Installation Installing options and accessories 8.7.2 CIO21A and CID21A input/output card INFORMATION Technical data of the cards For technical data and a detailed description of the encoder interface, refer to the chapter "Technical data of the cards". Voltage supply The I/O cards are supplied by the basic unit via the 24 V voltage supply. Short-circuit behavior of digital outputs The digital outputs are short-circuit-proof.
  • Page 241 Installation Installing options and accessories CIO21A terminal assignment Terminal Connec- Short description tion S50/1 on: Current input active for AI2x S50/2 on: Current input active for AI3x S50/1 off : Voltage input active for AI2x S50/2 off : Voltage input active for AI3x X50:1 REF1 +10 V reference voltage output...
  • Page 242 Installation Installing options and accessories CID21A terminal assignment Terminal Connec- Short description tion X52:1 DI10 Digital input 1, freely programmable X52:2 DI11 Digital input 2, freely programmable X52:3 DI12 Digital input 3, freely programmable X52:4 DI13 Digital input 4, freely programmable X52:5 Reference potential for the digital inputs DI10 –...
  • Page 243 Installation Installing options and accessories 8.7.3 CES11A multi-encoder card INFORMATION Technical data of the cards For technical data and a detailed description of the encoder interface, refer to the chapter "Technical data of the cards". Overview of functions The CES11A multi-encoder card expands the functionality of the application inverter in a way that an additional encoder can be evaluated.
  • Page 244 Installation Installing options and accessories Terminal assignment of TTL, HTL, sin/cos encoder Card Terminal Connection Brief description X17:1 A (cos+) (K1) Signal track A (cos+) (K1) X17:2 B (sin+) (K2) Signal track B (sin+) (K2) X17:3 Signal track C (K0) X17:4 DATA+ Data cable for electronic nameplate...
  • Page 245 Installation Installing options and accessories Terminal assignment EnDat encoder Card Terminal Connection Brief description X17:1 A (cos+) Signal track A (cos+) X17:2 B (sin+) Signal track B (sin+) X17:3 PULSE+ Clock signal X17:4 DATA+ Data line X17:5 Reserved – X17:6 -TEMP_M Motor temperature evaluation X17:7...
  • Page 246 Installation Installing options and accessories Terminal assignment SSI and sin/cos combination encoders Card Terminal Connection Brief description X17:1 A (cos+) Signal track A (cos+) X17:2 B (sin+) Signal track B (sin+) X17:3 PULSE+ Clock signal X17:4 DATA+ Data line X17:5 Reserved –...

  • Page 247: Braking Resistors

    Installation Braking resistors Braking resistors The supply cables to the braking resistors carry a high pulsed DC voltage during nom- inal operation. DANGER Dangerous pulsed DC voltage of up to 970 V. Severe or fatal injuries from electric shock. To prevent electric shocks: •...
  • Page 248 Installation Braking resistors 8.8.1 Permitted installation of braking resistors The surfaces of the resistors become very hot if loaded with nominal power. Make sure that you select an installation site that will accommodate these high temperat- ures. For this reason, braking resistors are usually mounted on the control cabinet roof.
  • Page 249 Installation Braking resistors • Wire resistor 18512455307 • Flat type resistor 18512457739 ® Product Manual – MOVIDRIVE system...
  • Page 250 Installation Braking resistors 8.8.2 Protection against thermal overload of the braking resistor INFORMATION PTC braking resistor. A PTC braking resistor goes to high resistance in the event of overload. INFORMATION Flat-type resistor. Flat-type resistors have internal thermal protection (fuse cannot be replaced) that in- terrupts the current circuit in the event of overload.
  • Page 251 Installation Braking resistors External thermal circuit breaker TCB If an external TCB thermal circuit breaker is used for this application inverter, the fol- lowing connection applies. Connection MDX9_A X20:x DI0x X20:9 GND X21:1 24 VO 23 24 1 4 3 6 18014413788389131 TCB thermal circuit breaker Braking resistor...
  • Page 252 Installation Braking resistors Internal temperature switch -T Application inverter: MDX9_A-0020 – 0160-5_3-.., MDX9_A-0070 – 0140-2_3-.. If a BR...-T braking resistor with internal temperature switch is used with these appli- cation inverters, there are 3 possible connections. Connection 1 Connection 2 Connection 3 24 V OUT 24 V OUT...
  • Page 253 Installation Braking resistors – With connection 2, it is possible that the PLC finishes the current travel cycle al- though the thermal circuit breaker has tripped. Only then is the power supply disconnected. In this case, the residual braking energy W ×...
  • Page 254 Installation Braking resistors Application inverter: as of MDX9_A-0240-5_3-.., as of MDX9_A-0213-2_3-.. If a BR...-T braking resistor with internal temperature switch is used with these appli- cation inverters, there are 3 possible connections. Connection 1 Connection 2 Connection 3 24 V OUT DC 24 V MDX9_A MDX9_A...
  • Page 255 Installation Braking resistors – If the thermal circuit breaker trips, there is no direct response in the application inverter. – With connection 2, it is possible that the PLC finishes the current travel cycle al- though the thermal circuit breaker has tripped. Only then is the power supply disconnected.
  • Page 256 Installation Braking resistors External bimetallic relay Application inverter: MDX9_A-0020 – 0160-5_3-.., MDX9_A-0070 – 0140-2_3-.. If an external bimetallic relay is used with the application inverter, there are 3 possible connections. Connection 1 Connection 2 Connection 3 24 V OUT 24 V OUT MDX9_A MDX9_A MDX9_A...
  • Page 257 Installation Braking resistors – With connection 2, it is possible that the PLC finishes the current travel cycle al- though the thermal circuit breaker has tripped. Only then is the power supply disconnected. In this case, the residual braking energy W ×...
  • Page 258 Installation Braking resistors Application inverter: as of MDX9_A-0240-5_3-.., as of MDX9_A-0213-2_3-.. If an external bimetallic relay is used with the application inverter, there are 3 possible connections. Connection 1 Connection 2 Connection 3 24 V OUT DC 24 V MDX9_A MDX9_A MDX9_A X5:24 V...
  • Page 259 Installation Braking resistors – If the thermal circuit breaker trips, there is no direct response in the application inverter. – With connection 2, it is possible that the PLC finishes the current travel cycle al- though the thermal circuit breaker has tripped. Only then is the power supply disconnected.

  • Page 260: Line Filter

    Installation Line filter Line filter • Install the line filter close to the application inverter but outside the minimum clear- ance for cooling. The line filter must not be heated by the exhaust air of the appli- cation inverter. • Do not wire any other consumers between the line filter and the application in- verter.

  • Page 261: Emc-Compliant Installation

    Installation EMC-compliant installation 8.10 EMC-compliant installation [13] [11] [10] [12] [14] [14] [14] [12] [10] [14] [11] 19508519307 Galvanized mounting plate [8] Braking resistor Line filter [9] Braking resistor cable Inverter [10] Motor cable PE busbar [11] Brake cable HF connection of PE busbar/mounting plate [12] Grounding clamp Supply system cable [13] Electronics shield plate...

  • Page 262: Edition

    Installation EMC-compliant installation The notes in this chapter are not legal regulations, but rather recommendations for im- proving the electromagnetic compatibility of your plant. For further notes on EMC-compliant installation, refer to the publication Drive Techno- logy – Practical Implementation, edition "EMC in Drive Technology – Basic Theoretical Principles –...
  • Page 263 Installation EMC-compliant installation 8.10.4 Supply system cable connection The supply system cable can be connected to the line choke and/or line filter using twisted unshielded single conductors or using unshielded cables. If necessary, shielded cables may improve EMC. 8.10.5 Line filter connection Limit the length of the connection lead between the line filter and the inverter to the absolute minimum needed.
  • Page 264 Installation EMC-compliant installation 8.10.7 Motor and brake connection Use shielded motor cables only. Connect the braided shield of the motor cable at both ends over its entire circumference to the power shield plate at the inverter. Provide shielded cables for the brake supply. The shield of the brake cable can be connected to the power shield plate at the inverter.
  • Page 265 Installation EMC-compliant installation 8.10.10 Shielding connection Ensure that there is an HF-compatible shield connection, e.g. by using grounding clamps or EMC cable glands, so that the braided shield has a large connection sur- face. ® Product Manual – MOVIDRIVE system...

  • Page 266: Terminal Assignment

    Installation Terminal assignment 8.11 Terminal assignment INFORMATION Reference potentials inside the device: The device internal reference potential is designated as GND in the following table. All reference potentials GND are internally connected to PE. INFORMATION The assignment "Reserved" means that no cable may be connected to this connec- tion.
  • Page 267 Installation Terminal assignment Representa- Terminal Connection Brief description tion X2:U Motor connection X2:V - MDX9_A-0240 – 0320-5_3-.. - MDX9_A-0213 – 0290-2_3-.. X2:W X2:+R Braking resistor connection X2:-R PE connection X1:L1 Line connection X1:L2 - MDX9_A-0460 – 1490-5_3-.. - MDX9_A-0420 – 1080-2_3-.. X1:L3 X1:-U DC link connection...
  • Page 268 Installation Terminal assignment Representa- Terminal Connection Brief description tion X20:1 DI00 Digital input 1, with fixed assignment "Output stage en- able" X20:2 DI01 Digital input 2, fixed setpoints – positive direction of rota- tion X20:3 DI02 Digital input 3, fixed setpoints – negative direction of rota- tion X20:4 DI03...
  • Page 269 Installation Terminal assignment Representa- Terminal Connection Brief description tion X15:1 S2 (sin+) Signal track X15:2 S1 (cos+) Signal track X15:3 Reserved – X15:4 Reserved – X15:5 R1 (REF+) Supply voltage resolver X15:6 -TEMP_M Motor temperature evaluation X15:7 Reserved – X15:8 Reserved –...
  • Page 270 Installation Terminal assignment Representa- Terminal Connection Brief description tion X15:1 A (K1) Signal track A (K1) X15:2 B (K2) Signal track B (K2) X15:3 C (K0) Signal track C (K0) X15:4 Reserved – X15:5 Reserved – X15:6 -TEMP_M Motor temperature evaluation X15:7 Reserved –...

  • Page 271: Wiring Diagrams

    Installation Wiring diagrams 8.12 Wiring diagrams 8.12.1 General information on the wiring diagrams • For technical data of the power electronics and the control electronics, refer to chapter "Technical data" (→ 2 37). • For the terminal assignment and connections, refer to chapter "Terminal assign- ment" (→ 2 266).
  • Page 272 Installation Wiring diagrams Wiring of the power connections with line choke, line filter, output choke, without line contactor Refer to the table in the chapter "Line contactor" (→ 2 230) to find out which applica- tion inverters can be operated without a line contactor. NOTICE Operation without line contactor If the required measures are not taken, operation of an application inverter with con-...
  • Page 273 Installation Wiring diagrams INFORMATION In the event of a line connection without line contactor, the temperature evaluation of the braking resistor must be ensured via a digital input on the application inverter. The connected digital input must be parameterized for monitoring the braking resistor temperature evaluation.
  • Page 274 Installation Wiring diagrams 8.12.3 Brake control Legend: Cut-off in the DC and AC circuits (rapid brake application) Cut-off in the DC circuit Brake BS = Accelerator coil TS = Coil section DC brake with one brake coil Auxiliary terminal strip in terminal box Control cabinet limit White Blue...
  • Page 275 Installation Wiring diagrams BMK. brake control DB00 BMKB 14324495755 BMV brake control – 2 coils DB00 DC 24 V 14373482507 ® Product Manual – MOVIDRIVE system...
  • Page 276 Installation Wiring diagrams BMV brake control – 1 coil DB00 DC 24 V 14373494923 BMS, BME brake control DB00 14324554891 ® Product Manual – MOVIDRIVE system...
  • Page 277 Installation Wiring diagrams BMP brake control DB00 14324544523 BG, BGE brake control DB00 14324565259 ® Product Manual – MOVIDRIVE system...
  • Page 278 Installation Wiring diagrams BSG brake control DC 24 V DB00 14324597131 8.12.4 Electronics connection Wiring the control electronics For the terminal assignment and connections, refer to chapter "Terminal assign- ment" (→ 2 266). ® Product Manual – MOVIDRIVE system...
  • Page 279 Installation Wiring diagrams The assignment of the digital inputs and outputs shown here is the factory setting. MASTER SLAVE "Output stage enable" permanently assigned DI00 Fixed setpoints – positive rotation direction DI01 Fixed setpoints – negative rotation direction DI02 DI03 Fixed speed setpoint bit 0 DI04 Fixed speed setpoint bit 1...
  • Page 280 Installation Wiring diagrams DC 24 V 24 V X30 OUT X30 IN F_STO_P1 F_STO_M F_STO_P2 24VSTO_OUT Brake control DB0/DB00 Reference potential Motor temperature evaluation Reference potential 25606731275 +24 V supply voltage Connection for Safe Torque Off (STO). With installed CS.A card, the cable bridges are removed at the factory. If no CS.A card is installed upon delivery, the cable bridges are installed at the factory.
  • Page 281 Installation Wiring diagrams 8.12.5 Connection diagram CIO21A and CID21A input/output card Digital inputs and outputs DI10 DI11 DI12 DI13 DO10 DO11 DO12 DO13 18014412829087243 Higher-level controller Voltage input REF1 AI21 AI22 AI31 AI32 REF2 9007213575393675 Connection to the terminals AI31 and AI32 is carried out analogously to the connec- tion to the terminals AI21 and AI22 shown in the wiring diagrams.
  • Page 282 Installation Wiring diagrams R > 5 kΩ REF1 AI21 AI22 AI31 AI32 REF2 18014412830137099 Connection to the terminals REF2 and AI31 is carried out analogously to the connec- tion to the terminals REF1 and AI21 shown in the wiring diagrams. Current input REF1 AI21...
  • Page 283 Installation Wiring diagrams Voltage output AOV2 AOC2 AOV3 AOC3 18014412830141963 Connection to the terminals AOV2 and GND is carried out analogously to the connec- tion to the terminals AOV1 and GND shown in the wiring diagram. Current output AOV2 AOC2 AOV3 AOC3 18014412830272395...

  • Page 284: Information Regarding Ul

    Installation Information regarding UL 8.13 Information regarding UL INFORMATION Due to UL requirements, the following chapter is always printed in English indepen- dent of the language of the documentation. INFORMATION The UL-certification does not apply to operation on voltage supply systems with a non-grounded star point (IT systems).
  • Page 285 Installation Information regarding UL AC 380 – 500 V devices MDX9_A-.. SCCR: 5 kA/ 500 V Non semiconductor fuses Inverse-time circuit breaker Type E Combination Motor (currents are maximum val- (currents are maximum val- Controller ues) ues) 0020 – 0040 50 A/600 V 50 A/500 V min.

  • Page 286: Startup

    Startup General Startup General 9.1.1 Lifting applications WARNING Danger of fatal injury if the hoist falls. Severe or fatal injuries. • The application inverter is not designed for use as a safety device in lifting applic- ations. Use monitoring systems or mechanical protection devices to ensure safety.

  • Page 287: Setting The Ethercat ® Id

    Startup Setting the EtherCAT ID Setting the EtherCAT ® Setting the EtherCAT ® An EtherCAT ID can be permanently assigned to the application inverter using the hexadecimal switches S1 and S2. With these switches, you can set a decimal ® EtherCAT ID between 1 and 255 in hexadecimal notation.

  • Page 288: Startup Requirements

    Startup Startup requirements Startup requirements The following requirements apply to startup: • You have installed the application inverter correctly, both mechanically and electri- cally. • You have configured the application inverter and connected drives correctly. • Safety measures prevent accidental drive startup. •...

  • Page 289: Startup Procedure

    Startup Startup procedure Startup procedure ® The application inverters are put into operation using the MOVISUITE engineering software from SEW‑EURODRIVE. 15643252491 The startup is functionally divided into segments. The following steps illustrate in ex- emplary fashion the startup procedure for an application inverter. Drive train segment Drive train Configuring drive trains.
  • Page 290 Startup Startup procedure Drive functions • FCB 01 Output stage inhibit • FCB 05 Speed control • FCB 06 Interpolated speed control • FCB 08 Interpolated torque control • FCB 09 Positioning • FCB 10 Interpolated position control • FCB 12 Reference travel • FCB 08 Rotor position identification •...
  • Page 291 Startup Startup procedure Optional Basic settings of the options • Fieldbus • I/O card • Encoder 2 ® • MOVISAFE CS.. ® Product Manual – MOVIDRIVE system...
  • Page 292 Startup Startup procedure 9.4.1 Check list for startup The following checklist lists the necessary steps for complete startup. Step Startup step Done Motor installation ® Install MOVI‑C component ® Start MOVISUITE Start up the drive train Parameterize setpoints and FCBs Configure digital inputs and outputs Configure PD ®...

  • Page 293: Connection To The Engineering Software

    Startup Connection to the engineering software Connection to the engineering software The following figure shows the connection of the application inverter to the ® MOVISUITE engineering software using a PC. L/ A RUN ERR RUN ERR L/ A L/ A UHX45A-N 18014413831237515 [1] Ethernet...

  • Page 294: Operation

    Operation General information Operation 10.1 General information DANGER Dangerous voltages present at cables and motor terminals Severe or fatal injuries from electric shock. • Dangerous voltages are present at the output terminals and the cables and motor terminals connected to them when the device is switched on. This also applies even when the device is inhibited and the motor is at standstill.

  • Page 295: Segment Display

    Operation 7-segment display 10.2 7-segment display 10.2.1 Operating displays • The two 7-segment displays indicate the operating state of the application in- verter. 10.2.2 Fault display The application inverter detects any faults that occur and displays them as fault code. Each fault is clearly defined by its fault code and corresponding attributes, as shown below: •...

  • Page 296: Operating Displays

    Operation Operating displays 10.3 Operating displays Display Description State Comment/action Displays during boot process Device passes through several • Status: Not ready. • Waiting for boot process to finish. states when loading the firmware • Output stage is inhibited. • Device stays in this condition: Device is de- (boot) in order to become ready for •...
  • Page 297 Operation Operating displays Display Description State Comment/action Default stop For further information, refer to the Drive function (FCB) "Default stop" active if no FCB description. other FCB is selected and the system is ready. Manual mode Manual mode active. Speed control Speed control with internal ramp generator.

  • Page 298: Fault Description On Basic Device

    Operation Fault description on basic device 10.4 Fault description on basic device 10.4.1 Fault 1 Output stage monitoring Subfault: 1.1 Description: Short circuit in motor output terminals Response: Output stage inhibit Cause Measure Overcurrent in output stage or faulty output stage control detec- Possible causes for overcurrent are short circuit at the output, ted, and output stage inhibited by hardware.
  • Page 299 Operation Fault description on basic device 10.4.5 Fault 7 DC link Subfault: 7.1 Description: DC link overvoltage Response: Output stage inhibit Cause Measure Maximum permitted DC link voltage limit exceeded and output – Extend deceleration ramps. stage inhibited by hardware. –...
  • Page 300 Operation Fault description on basic device Subfault: 9.2 Description: Requested operating mode not possible with active control mode Response: Output stage inhibit Cause Measure The current FCB activated an operating mode. The active con- Start up control mode that supports the required operating trol mode does not support this operating mode, for example mode.
  • Page 301 Operation Fault description on basic device 10.4.8 Fault 10 Data Flexibility Subfault: 10.1 Description: Initialization Response: Application stop + output stage inhibit Cause Measure Init task error. The init task has issued a return code != 0. Check the program. Subfault: 10.2 Description: Illegal operation code Response: Application stop + output stage inhibit Cause...
  • Page 302 Operation Fault description on basic device Subfault: 10.10 Description: Setpoint cycle time not supported Response: Application stop + output stage inhibit Cause Measure Non-supported setpoint cycle time parameterized. Set the setpoint cycle time to the default value 1 ms. Subfault: 10.11 Description: No application program loaded Response: Output stage inhibit Cause...
  • Page 303 Operation Fault description on basic device Subfault: 11.7 Description: Wire break at temperature sensor of heat sink Response: Output stage inhibit Cause Measure Wire break at temperature sensor of heat sink. Contact SEW-EURODRIVE Service. Subfault: 11.8 Description: Short circuit at temperature sensor of heat sink Response: Output stage inhibit Cause Measure...
  • Page 304 Operation Fault description on basic device Subfault: 13.6 Description: Signal level too low Response: Encoder 1 – latest critical fault Cause Measure Vector below permitted limit during signal level monitoring. – Check the wiring. – Check interference sources (e.g. from EMC). –...
  • Page 305 Operation Fault description on basic device Subfault: 13.12 Description: Emergency Response: Encoder 1 – latest critical fault Cause Measure Encoder signaled emergency. – Check interference sources (e.g. from EMC). – Check startup parameters. Information: In "emergency mode" manual mode, you can move the drive using the motor encoder even if the external po- sition encoder is faulty.
  • Page 306 Operation Fault description on basic device Subfault: 13.18 Description: Permanent low level in data line – critical Response: Encoder 1 – latest critical fault Cause Measure Permanent low level of data signal. – Check the wiring. – Check the encoder. Information: In "emergency mode"...
  • Page 307 Operation Fault description on basic device Subfault: 13.24 Description: Travel range exceeded Response: Encoder 1 – latest fault Cause Measure Current position mode (index 8381.10) does not allow for larger Check travel range. travel range. Information: In "emergency mode" manual mode, you can move the drive using the motor encoder even if the external po- sition encoder is faulty.
  • Page 308 Operation Fault description on basic device Subfault: 14.5 Description: Internal warning Response: Encoder – warning Cause Measure Encoder signaled warning. – Check the wiring. – Check interference sources (light beam interrupted, reflector, data cables, etc.). – Clean sensor. Subfault: 14.6 Description: Signal level too low Response: Encoder 2 –...
  • Page 309 Operation Fault description on basic device Subfault: 14.11 Description: Data timeout Response: Encoder 2 – latest critical fault Cause Measure Encoder process data timeout. – Check interference sources (e.g. from EMC). – Check startup parameters. Information: In "emergency mode" manual mode, you can move the drive using the motor encoder even if the external po- sition encoder is faulty.
  • Page 310 Operation Fault description on basic device Subfault: 14.17 Description: Permanent high level in data line Response: Encoder 2 – latest fault Cause Measure Permanent high level of data signal. – Check the wiring. – Check the encoder. Information: In "emergency mode" manual mode, you can move the drive using the motor encoder even if the external po- sition encoder is faulty.
  • Page 311 Operation Fault description on basic device Subfault: 14.23 Description: Internal fault Response: Encoder 2 – latest fault Cause Measure Encoder signaled internal fault. – Check the wiring. – Check interference sources (light beam interrupted, reflector, data cables, etc.). – Replace encoder. Information: In "emergency mode"...
  • Page 312 Operation Fault description on basic device Subfault: 16.7 Description: PWM frequency not possible Response: Output stage inhibit Cause Measure Specified PWM frequency not allowed for this power output Select different PWM frequency. Possible PWM frequencies; stage. see device configuration data. Subfault: 16.8 Description: Temperature sensor motor 1 Response: Output stage inhibit...
  • Page 313 Operation Fault description on basic device Subfault: 16.23 Description: Plausibility check failed Response: Output stage inhibit Cause Measure During startup using nameplate data: the estimated nominal Check entered nameplate data for plausibility. power does not match the entered nominal power. Subfault: 16.24 Description: Speed controller sampling cycle not possible with current PWM frequency or current control mode Response: Application stop + output stage inhibit...
  • Page 314 Operation Fault description on basic device Subfault: 18.3 Description: Task system warning Response: Warning Cause Measure A fault was detected during the processing of the internal task – Acknowledge the warning. system. This may be a timeout for cyclical tasks, for example. –...
  • Page 315 Operation Fault description on basic device 10.4.15 Fault 19 Process data Subfault: 19.1 Description: Torque setpoint violation Response: Application stop + output stage inhibit Cause Measure Implausible values specified as torque setpoints. Adjust torque setpoints. Subfault: 19.2 Description: Position setpoint violation Response: Application stop + output stage inhibit Cause Measure...
  • Page 316 Operation Fault description on basic device 10.4.16 Fault 20 Device monitoring Subfault: 20.1 Description: Supply voltage fault Response: Output stage inhibit System state: Fault acknowledgment with CPU reset Cause Measure Internal electronics supply voltage or externally connected Check the voltage level of the external DC 24 V standby supply DC 24 V standby supply voltage outside permitted voltage voltage and check for correct port.
  • Page 317 Operation Fault description on basic device 10.4.17 Fault 23 Power section Subfault: 23.1 Description: Warning Response: Warning with self-reset Cause Measure Power section fault with fault response of the type "warning". See also "Power section subcomponent" fault status. Subfault: 23.2 Description: Fault Response: Emergency stop + output stage inhibit Cause...
  • Page 318 Operation Fault description on basic device 10.4.18 Error 24 Cam switch Subfault: 24.1 Description: Cam window limits interchanged Response: Warning Cause Measure Left cam window limit larger than right limit. Check cam window limits and adjust. Subfault: 24.2 Description: Cam window limit not within modulo range Response: Warning Cause Measure...
  • Page 319 Operation Fault description on basic device Subfault: 25.10 Description: Power section configuration data – version conflict Response: Output stage inhibit Cause Measure Wrong version of configuration data of power section. Contact SEW-EURODRIVE Service. Subfault: 25.12 Description: Power section configuration data – CRC error Response: Output stage inhibit Cause Measure...
  • Page 320 Operation Fault description on basic device Subfault: 25.30 Description: Initialization error – replaceable memory module Response: Output stage inhibit Cause Measure The formatting of the replaceable memory module does not Restore delivery state. NOTICE: All the data on the replaceable match.
  • Page 321 Operation Fault description on basic device Subfault: 26.4 Description: External braking resistor fault Response: Response to external braking resistor fault Cause Measure External braking resistor's temperature switch connected to ter- – Check the resistor mounting position. minal tripped. – Clean the resistor. –...
  • Page 322 Operation Fault description on basic device Subfault: 28.7 Description: FCB 21 – Test torque greater than maximum torque at motor shaft Response: Output stage inhibit Cause Measure The required test torque for the brake test is higher than the Reduce the test torque. maximum torque.
  • Page 323 Operation Fault description on basic device Subfault: 28.15 Description: FCB 25 – Timeout Response: Output stage inhibit Cause Measure Measuring rotor resistance, LSigma, or stator inductance not Contact SEW-EURODRIVE Service. completed. 10.4.22 Fault 29 HW limit switch Subfault: 29.1 Description: Positive limit switch approached Response: HW limit switch –...
  • Page 324 Operation Fault description on basic device 10.4.24 Fault 31 Thermal motor protection Subfault: 31.1 Description: Temperature sensor wire break – motor 1 Response: Application stop + output stage inhibit Cause Measure Connection to temperature sensor of motor 1 interrupted. Check the temperature sensor wiring. Subfault: 31.2 Description: Temperature sensor short circuit –...
  • Page 325 Operation Fault description on basic device Subfault: 31.11 Description: Temperature sensor wire break – motor 2 Response: Application stop + output stage inhibit Cause Measure Connection to temperature sensor of motor 2 interrupted. Check the temperature sensor wiring. Subfault: 31.12 Description: Temperature sensor short circuit –...
  • Page 326 Operation Fault description on basic device Subfault: 32.3 Description: Faulty synchronization signal Response: External synchronization Cause Measure ® PLUS Faulty synchronization signal period. Check for correct setting of the EtherCAT /SBus configura- ® tion in the MOVI-C CONTROLLER. Subfault: 32.4 Description: No synchronization signal Response: External synchronization Cause...
  • Page 327 Operation Fault description on basic device Subfault: 33.2 Description: Firmware CRC check Response: Output stage inhibit System state: Fault acknowledgment with CPU reset Cause Measure Error checking firmware. Contact SEW-EURODRIVE Service. Subfault: 33.6 Description: FPGA configuration Response: Output stage inhibit Cause Measure Error checking FPGA configuration.
  • Page 328 Operation Fault description on basic device Subfault: 33.15 Description: Firmware configuration Response: Output stage inhibit System state: Fault acknowledgment with CPU reset Cause Measure The Device Update Manager detected a modified version of the Acknowledge the fault. Doing so will update the configuration application firmware.
  • Page 329 Operation Fault description on basic device 10.4.29 Fault 42 Lag error Subfault: 42.1 Description: Positioning lag error Response: Positioning lag error Cause Measure A lag error occurred during positioning. Check the connection of the encoder. Incorrect encoder connection. Position encoder inverted or not installed correctly at the track. Check the installation and connection of the position encoder. Wiring faulty.
  • Page 330 Operation Fault description on basic device Subfault: 46.2 Description: Invalid variant Response: Output stage inhibit Cause Measure Plugged safety card design does not match inverter type. – Remove safety card. – Use the correct safety card design. For double axes, only designs without encoder interface can be –...
  • Page 331 Operation Fault description on basic device Subfault: 47.3 Description: Supply unit – critical fault Response: Output stage inhibit Cause Measure The supply unit signals a fault with response type "critical For the exact cause of the fault and for information on how to error".
  • Page 332 Operation Fault description on basic device Subfault: 50.4 Description: Option card timeout error Response: Output stage inhibit Cause Measure Option card signals timeout error on SPI bus. – Check card slot and installation and correct if necessary. – Check for EMC-compliant installation. –...
  • Page 333 Operation Fault description on basic device Subfault: 52.5 Description: Time duration exceeded f < 5 Hz Response: Emergency stop + output stage inhibit Cause Measure Duration of 60 s for f < 5 Hz exceeded. Check the dimensioning of the system: If speed control = FCB05, increase the speed.

  • Page 334: Power Section Fault Description

    Operation Power section fault description 10.5 Power section fault description 10.5.1 Fault 7 DC link Subfault: 7.1 Description: DC link overvoltage Response: Remote – critical fault Cause Measure Maximum permitted DC link voltage limit exceeded and output – Extend deceleration ramps. stage inhibited by hardware.
  • Page 335 Operation Power section fault description 10.5.5 Fault 20 Device monitoring Subfault: 20.1 Description: Supply voltage fault Response: Remote – critical fault Cause Measure Internal electronics supply voltage or externally connected Check the voltage level of the external DC 24 V standby supply DC 24 V standby supply voltage outside permitted voltage voltage and check for correct port.
  • Page 336 Operation Power section fault description Subfault: 25.6 Description: Incompatible device configuration Response: Remote – standard fault Cause Measure The data set in the device was copied from another device, – Check whether the configuration is correct and repeat the which differs from the current device in the device family, startup, if necessary.
  • Page 337 Operation Power section fault description 10.5.8 Fault 33 System initialization Subfault: 33.2 Description: Firmware CRC check Response: Disable rectifier Cause Measure Error checking firmware. Contact SEW-EURODRIVE Service. Subfault: 33.8 Description: SW function block configuration Response: Remote – standard fault Cause Measure Error detected while checking configuration of software function Contact SEW-EURODRIVE Service.
  • Page 338 Operation Power section fault description Subfault: 44.6 Description: Faulty supply voltage in gate drivers for brake chopper Response: Remote – critical fault Cause Measure Faulty supply voltage in gate drivers for brake chopper. Switch the power off and on again/perform a reset. Brake chopper not ready for operation.

  • Page 339: Responses To Fault Acknowledgement

    Operation Responses to fault acknowledgement 10.6 Responses to fault acknowledgement 10.6.1 Fault acknowledgement During fault acknowledgement, the final fault status determines which reset type will be executed, see following table. Final fault status Responses to fault acknowledgement System blocked System restart System waiting Warm start: Delete fault code Only display fault...
  • Page 340 Operation Responses to fault acknowledgement Warm start A warm start only resets the fault code. Response Effect The firmware system is not rebooted. All reference positions will be maintained. Warm start Communication is not interrupted. The active "fault message" is reset (digital output = 1, system status = 0).

  • Page 341: Fault Responses

    Operation Fault responses 10.7 Fault responses 10.7.1 Default – fault response Fault response Description No response The inverter ignores the event. The inverter sends a warning message with self-reset. The fault is automatically reset after Warning with self-reset the cause of fault is eliminated. Warning The inverter issues a warning message.
  • Page 342 Operation Fault responses Parameterizable faults Description Index no. Possible fault response Fieldbus – timeout This parameter is used to set the device re- 8622.6 • Warning ® PLUS sponse to an EtherCAT /SBus timeout • Application stop (with output stage in- (timeout time, index 8455.3).
  • Page 343 Operation Fault responses Parameterizable faults Description Index no. Possible fault response Encoder 1 – latest critical fault 8622.18 • No response • Inhibit output stage Encoder 2 – latest critical fault 8622.19 • No response • Inhibit output stage Response to external braking re- External braking resistor fault 8622.20 •...

  • Page 344: Service

    Service Electronics Service by SEW‑EURODRIVE Service 11.1 Electronics Service by SEW‑EURODRIVE If you are unable to rectify a fault, contact SEW‑EURODRIVE Service. For the ad- dresses, refer to www.sew‑eurodrive.com. When contacting SEW‑EURODRIVE Service, always specify the following information so that our service personnel can assist you more effectively: •...

  • Page 345: Shutdown

    Service Shutdown 11.3 Shutdown To shut down the application inverter, de-energize the application inverter using ap- propriate measures. WARNING Electric shock due to incompletely discharged capacitors. Severe or fatal injuries. • Observe a minimum switch-off time of 10 minutes after disconnecting the power supply.

  • Page 346: Functional Safety

    Functional safety General information Functional safety 12.1 General information 12.1.1 Underlying standards The safety assessment of the device is based on the following standards and safety classes: Underlying standards Safety class/ • Performance level (PL) in accordance with ISO 13849‑1:2015 underlying standard •...
  • Page 347 Functional safety Integrated safety technology 12.2.2 Safety concept The device is supposed to be able to perform the drive safety function "Safe Torque Off" in accordance with IEC 61800‑5‑2: • Device is characterized by the optional connection of an external safety controller/ safety relay.
  • Page 348 Functional safety Integrated safety technology 12.2.3 Schematic representation of the safety concept 23543720971 STO function Drive controller Internal safety card/safety option (optional) Diagnostics and inhibiting unit External safety device (optional) Motor ® Product Manual – MOVIDRIVE system...
  • Page 349 Functional safety Integrated safety technology 12.2.4 Drive safety functions The following drive-related safety functions can be used: • STO (Safe Torque Off in accordance with IEC  61800-5-2) by disconnecting the STO input. If the STO function is activated, the frequency inverter no longer supplies power to the motor for generating torque.
  • Page 350 Functional safety Integrated safety technology 2463226251 Speed Time Point of time when brake ramp is initiated Point of time when STO is triggered Δt Delay time until STO is triggered Safe time delay range Disconnection range ® Product Manual – MOVIDRIVE system...
  • Page 351 Functional safety Integrated safety technology 12.2.5 Restrictions • Note that if the drive does not have a mechanical brake or if the brake is defective, the drive may coast to a halt (depending on the friction and mass moment of iner- tia of the system).

  • Page 352: Safety Conditions

    Functional safety Safety conditions 12.3 Safety conditions The requirement for safe operation is that the drive safety functions of the application inverter are properly integrated into an application-specific, higher-level drive safety function. A system/machine-specific risk assessment must be carried out without fail by the system/machine manufacturer and taken into account for the use of the drive system with the device.
  • Page 353 Functional safety Safety conditions 12.3.2 Requirements for the installation • The components must be protected against conductive dirt, e.g. by installing them in a control cabinet with degree of protection IP54 in accordance with IEC 60529. Assuming that the presence of conductive dirt can be excluded at the installation site, a control cabinet with a correspondingly lower degree of protection is also permitted if in accordance with the applicable standards (e.g.
  • Page 354 Functional safety Safety conditions 12.3.3 Requirements for external safety controllers A safety relay can be used as an alternative to a safety controller. The following re- quirements apply analogously. • The safety controller and all other safety-related subsystems must be approved for at least that safety class which is required in the overall system for the respective, application-related drive safety function.
  • Page 355 Functional safety Safety conditions – The next test pulse in one sourcing channel must occur only after a 2 ms time period. – A maximum package of 3 switch-on test pulses may be generated in sequence at an interval of 2  ms. Wait for at least 500  ms after any package before you generate another switch-on test pulse or another switch-on test pulse package.
  • Page 356 Functional safety Safety conditions 12.3.5 Requirements for operation • Operation is permitted only within the limits specified in the corresponding docu- mentation. This principle applies to the external safety controller as well as to the device and any approved options. •...

  • Page 357: Connection Designs

    Functional safety Connection designs 12.4 Connection designs 12.4.1 General information Generally, all the connection designs listed in this documentation are permitted for safety-relevant applications, insofar as the safety conditions arising from this docu- mentation are satisfied. This means that you must ensure without fail that the DC 24 V safety inputs are activated by a safety controller or an external safety relay, so that an independent restart is not possible.
  • Page 358 Functional safety Connection designs Use of safety controllers The switch-off test pulse of the used safe digital outputs (F-DO) must be ≤ 1 ms and another switch-off test pulse must only occur 2 ms later at the earliest. <1 ms >2 ms 15214338827 High INFORMATION If the safety-related control voltage at ...
  • Page 359 Functional safety Connection designs 12.4.3 Wiring diagrams Delivery state In the delivery state, the terminals at the port for safe disconnection X6 are jumpered. F_STO_P1 F_STO_M F_STO_P2 0V24_OUT 24 V_OUT 27743538443 STO terminal X6 2-pole sourcing F-DO_P1 F_STO_P1 F_STO_M F-DO_P2 F_STO_P2 0V24_OUT 24 V_OUT 27743543947...
  • Page 360 Functional safety Connection designs STO group disconnection, 2-pole, sourcing F_STO_P1 F_STO_P1 F-DO_P1 F_STO_M F_STO_M F-DO_P2 F_STO_P2 F_STO_P2 0V24_OUT 0V24_OUT 24 V_OUT 24 V_OUT 27739017995 [1] External safety controller [2] STO terminal X6 STO group disconnection, 2-pole, sourcing/sinking F-DO_P F_STO_P1 F_STO_P1 F-DO_M F_STO_M F_STO_M...
  • Page 361 Functional safety Connection designs 12.4.4 Port X6 on the device The following figure shows the X6 port on the top of the device. 17915451659 X6: Connection for Safe Torque Off (STO) ® Product Manual – MOVIDRIVE system...

  • Page 362: Safety Characteristics

    Functional safety Safety characteristics 12.5 Safety characteristics Characteristic values in accordance with IEC 61800-5-2 ISO 13849-1 Tested safety class/underlying stand- Safety integrity level 3 Performance level e / ards category 3 Probability of a dangerous failure per 2.5 × 10 hour (PFH value) Service life 20 years, after which the component must be replaced with a new one.

  • Page 363: Appendix

    Appendix Abbreviation key Appendix 13.1 Abbreviation key The following table lists the abbreviations that are used in this document together with their unit and meaning. Abbreviation Information on Unit Meaning the nameplate Asynchronous motor μF Capacitance Maximum output frequency Line frequency line Frequency of the pulse width modulation Installation altitude...
  • Page 364 Appendix Abbreviation key Abbreviation Information on Unit Meaning the nameplate DC 24 V to supply STO_P1 and STO_P2 Supply voltage of encoders DC 12 V supply voltage of encoders S12VG DC 24 V supply voltage of encoders S24VG Voltage supply for electronics and brake ϑ °C Ambient temperature (+ES) ...
