- Page 1 AN5506-04-A GPON Optical Network Unit User Manual Version: A Code: MN000000423 FiberHome Telecommunication Technologies Co., Ltd. May 2010...
- Page 3 Please contact your local sales representative, service representative or distributor for any help needed at the contact information shown below. Fiberhome Telecommunication Technologies Co., Ltd. Address: No. 5 Dongxin Rd., Hongshan Dist., Wuhan, China Zip code: 430073 Tel:...
- Page 5 are trademarks of FiberHome Telecommunication Technologies Co., Ltd. (Hereinafter referred to as FiberHome) All brand names and product names used in this document are used for identification purposes only and are trademarks or registered trademarks of their respective holders.
- Page 7 Operation Safety Rules High optical power can cause bodily harm, especially to eyes. Never look directly into the end of the optical transmitter fiber jumper or the end of its active connector. Exercise care if you must bend fibers. If bends are necessary, the fiber bending radius should never be less than 38mm.
- Page 8 Avoid moisture, dampness and water damage. Equipment exposed to water cannot work normally and can be extremely hazardous due to shorting. Do not lay this equipment on an unsteady base.
- Page 9 Packing List After opening the packing case of the AN5506-04-A, please check whether the accompanied articles are in the packing case according to the packing list as below: Item Quantity Remarks AN5506-04-A Certificate of quality AN5506-04-A GPON Optical Network User manual...
-
Page 11: Table Of Contents
Contents Product Introduction ................. 1-1 Product Functions..............1-1 1.2 Product Types ................1-3 1.3 Technical Specifications ............1-4 2 Appearance Description ..............2-1 2.1 Top Panel and LED Indicators ..........2-1 2.2 Rear Panel and Interfaces ............2-3 3 Product Installation ................ - Page 13 Figures Figure 1-1 Networking application of the AN5506-04-A ....1-2 Figure 2-1 Top panel of the AN5506-04-A ........2-2 Figure 2-2 Rear panel of the AN5506-04-A ........2-3...
- Page 15 Tables Table 1-1 Product types ..............1-3 Table 1-2 Technical specifications of the AN5506-04-A ....1-4 Table 2-1 Description of the AN5506-04-A LED indicators ....2-2 Table 2-2 Interfaces and buttons of the AN5506-04-A ...... 2-4...
-
Page 17: Product Introduction

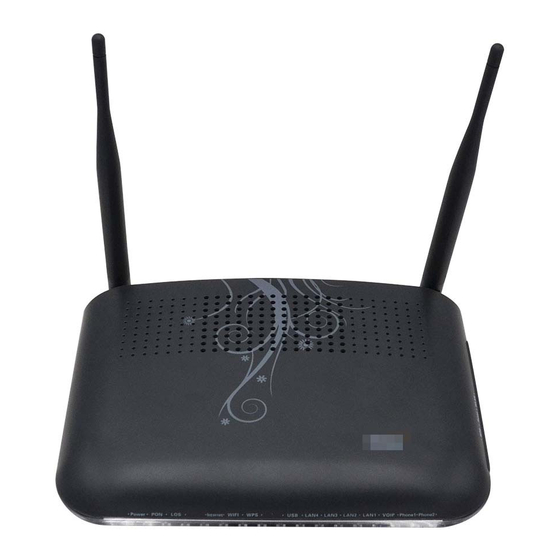

Product Introduction Product Functions The AN5506-04-A is a desktop GPON ONU (optical network unit). The AN5506-04-A is applicable for FTTH scenario. It provides 1 PON interface for uplink, 4 FE interfaces (or 4 GE interfaces) for downlink, 12 V DC power supply and 20 km transmission distance. As one of the GPON ONU of the AN5506 series, the AN5506-04-A should work with the GPON OLT(optical line terminal) of the AN5116 series. - Page 18 The following figure shows the networking application of the AN5506-04-A: Figure 1-1 Networking application of the AN5506-04-A As shown in Figure 1-1, the AN5506-04-A works with the AN5116-06B (OLT) to build a gigabit GPON system, and they can provide triple-play multi-service access of high capacity and reliability.
-
Page 19: Product Types
Product Types The AN5506-04-A has two types according to different types of interface. Table 1-1 lists the two types of the AN5506-04-A and the interface type and quantity that each product supports. Table 1-1... -
Page 20: Technical Specifications
Ethernet Interface Power socket AN5506-04-A1G with pin Technical Specifications The AN5506-04-A has two types according to different types of interface. Table 1-2 lists the technical specifications in detail. Table 1-2 Technical specifications of the AN5506-04-A Type Item Description Supports IEEE 802.1Q VLAN. - Page 21 1 Product Introduction Type Item Description AN5506-04-A1G < 7 W Operating 0˚C to 50˚C temperature Environment Storage -30˚C to 60˚C parameter temperature Environment 10% to 90%, non-condensing. humidity Version: A...
-
Page 23: Appearance Description
There are some LED indicators on the top panel indicating the running state of the device, so that subscribers can understand the device state directly. Figure 2-1 shows the top panel of the AN5506-04-A, and Table 2-1 lists the LED indicators. Version: A... - Page 24 AN5506-04-A GPON Optical Network Unit User Manual Figure 2-1 Top panel of the AN5506-04-A Table 2-1 lists the description of the AN5506-04-A LED indicators. Table 2-1 Description of the AN5506-04-A LED indicators LED Indicator Indicator Color Status Description Meaning Name...
-
Page 25: Rear Panel And Interfaces
All the interfaces and buttons of the AN5506-04-A are distributed on the rear panel of the device, with a compact shape and good utility. From left to right, on the rear panel of the AN5506-04-A respectively are 4 Ethernet interfaces, Console interface, PON interface, power interface, reset button, and power switch. - Page 26 AN5506-04-A GPON Optical Network Unit User Manual Table 2-2 Interfaces and buttons of the AN5506-04-A Interface or Meaning Type Description Button Power switch Button Switch on/off the power. Press the button and then Reset Reset button Button release to restore factory default settings.
-
Page 27: Product Installation
Unpacking Check After opening the packing case of the AN5506-04-A, please check articles in the packing case according to the packing List. If the items do not match the packing list, contact the local office of FiberHome directly. 3.1.2 Installation Precautions... -
Page 28: Placing The Device
Placing the Device You can place the AN5506-04-A on the stable plane, such as an office desk. The placing methods are as follows. Take out the AN5506-04-A from the packing case. Before delivery, four rubber pads are pasted to four corners on the bottom of the device. -
Page 29: Connection Of Optical Fiber
3 Product Installation Fix the network cable and then make Ethernet connectors for both ends. Connect Ethernet connector of one end to a certain AN5506-04-A LAN interface. Connect Ethernet connector of the other end to an Ethernet interface on a PC or a switch. -
Page 30: Connection Of Power Cable
AN5506-04-A GPON Optical Network Unit User Manual Insert one end of the optical jumper into the AN5506-04-A PON interface slightly. Connect the other end of the optical jumper with the optical splitter. The connection of optical fibers is finished. -
Page 31: Examination After Installation
3 Product Installation Note: This power adapter can convert 220V AC into 12V DC input for the AN5506-04-A so as to supply power to the device. Examination after Installation After the connection of wires and cables is finished and relevant services... -
Page 33: Faqs
FAQs Q: All indicator LEDs are off after power-on. A: 1) Check whether the power connection cable is connected well. 2) Check whether the power switch on the front panel of device is on. Q: The device fails to work after a period of normal running. A: 1) If the device works abnormally, check whether the power is connected normally or the voltage is over high or over low. - Page 34 AN5506-04-A GPON Optical Network Unit User Manual Q: LAN indicator LED is off. A: 1) Check whether the network cable is damaged or its connection is loose. 2) Check whether the network cable is made correctly. If it is incorrect, replace it with a new network cable made according to the standard method (for making a CAT 5 twisted-pair cable).
- Page 35 FiberHome. 1. Please give your opinions on the items listed below about this manual by the symbol “”. Items Excellent Good Normal Expression ...
- Page 38 FiberHome Telecommunication Technologies Co., Ltd. Address: No. 5 Dongxin Rd., Hongshan Dist., Wuhan, China Zip code: 430073 Tel: +86-27-87691549 Fax: +86-27-87691755 Website: http://www.fiberhomegroup.com...
