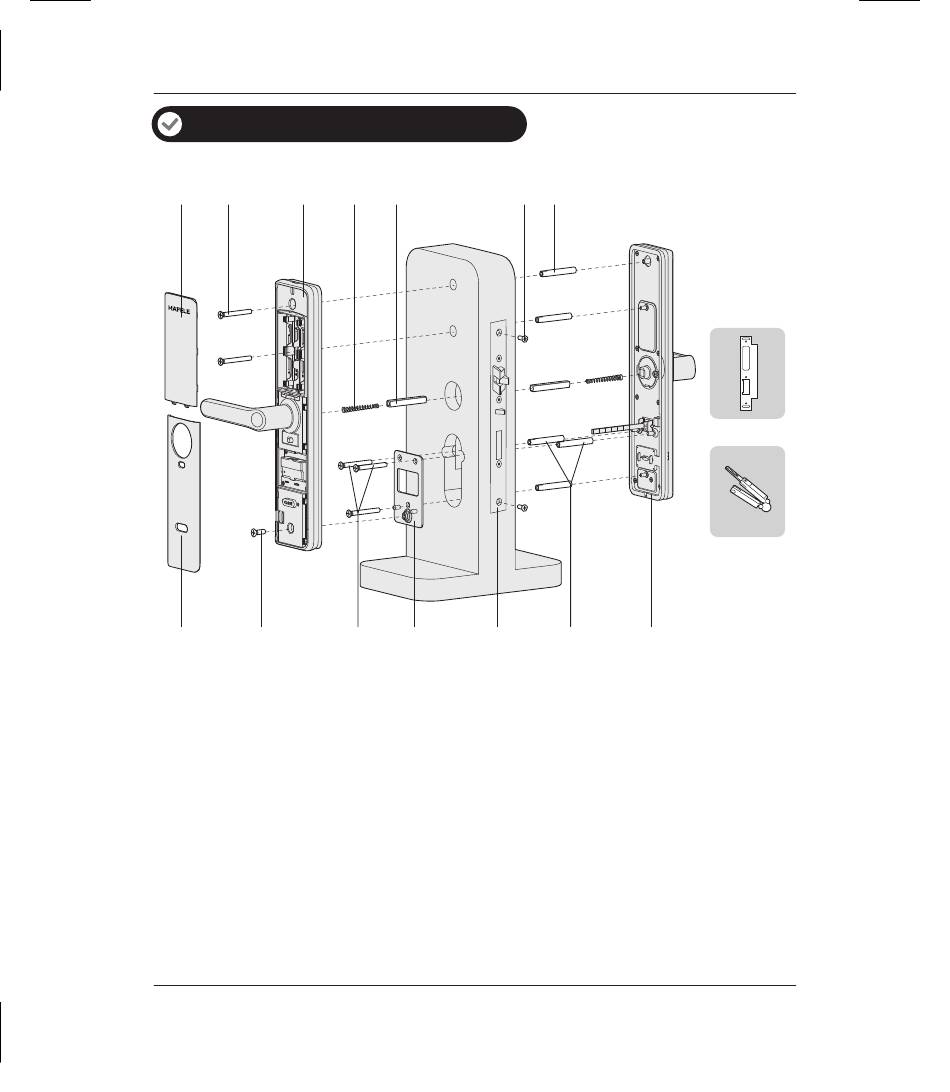

Components

1 2 3
8 9
1. Battery cover (1 pc)
2. M6 mounting screw (2 pcs)
3. Inside panel assembly (1 pc)
4. Pressure spring (2 pcs)
5. Square shaft (2 pcs)
6. Mortise mounting screw (2 pcs)
3
4 5 6
10 11 12
7. M6 Connecting screw bolt (2 pcs)
8. Bottom cover (1 pc)
9. M6 mounting screw (1 pc)
10. M5 mounting screw (3 pcs)
11. Mounting plate (1 pc)
12. Mortise lock (1 pc)
7
13 14
13. M5 Connecting screw bolt (3 pcs)
14. Outside panel assembly (1 pc)
15. Strike assembly
- Left strike plate (1 pc)
- Right strike plate (1 pc)
- Strike box (1 pc)
16. Mechanical key (2 pcs)
15
16
