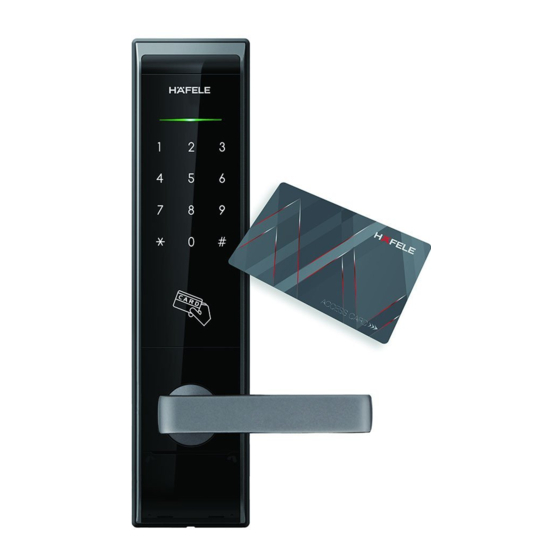

Häfele EL8000-TC User Manual

Digital door lock
Hide thumbs
Table of Contents

Advertisement

Quick Links

EL8000 -TC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL8000-TC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Häfele EL8000-TC

Summary of Contents for Häfele EL8000-TC

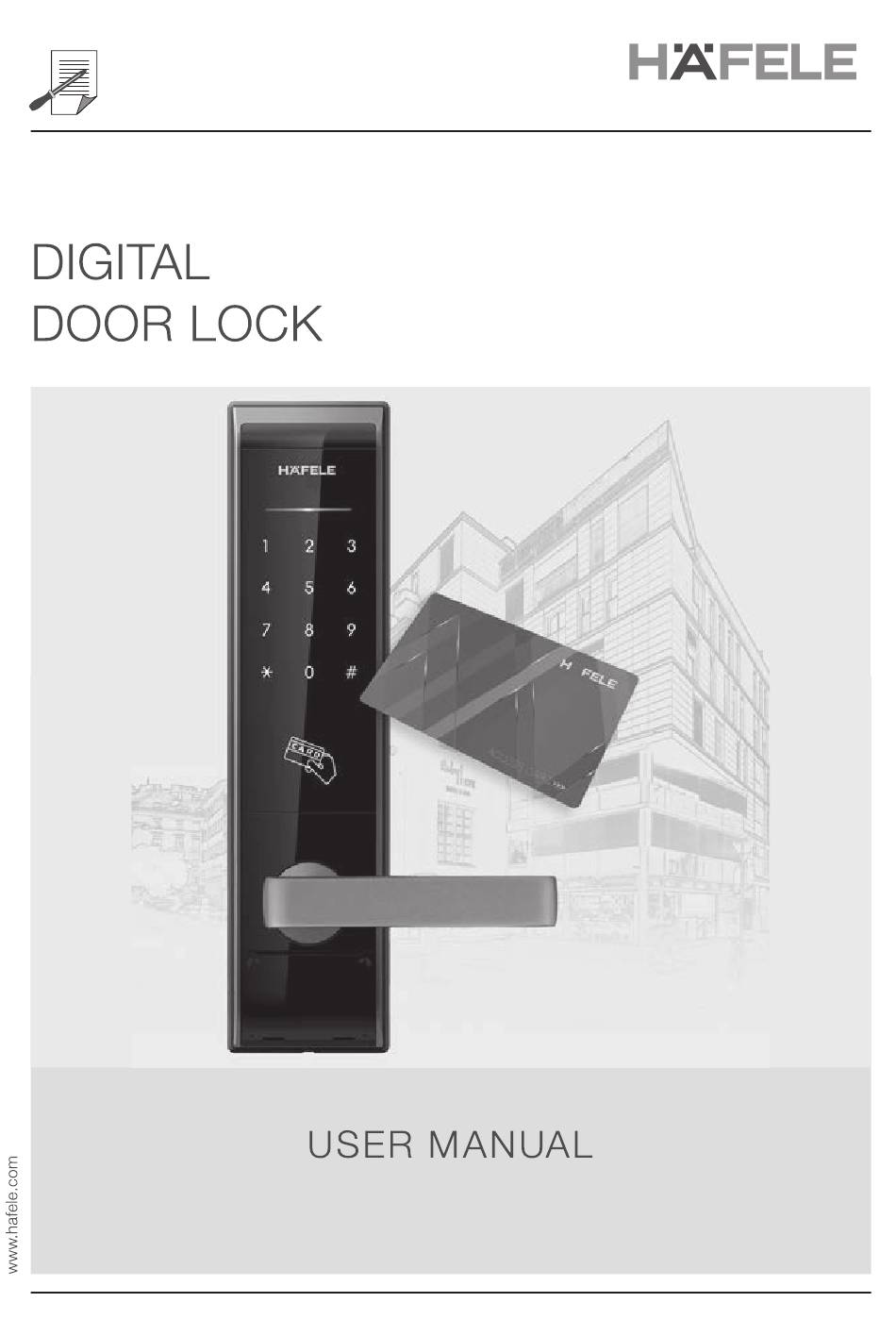

  • Page 1 EL8000 -TC...
  • Page 3 Product features Panic Release handle type It facilitates escapes while in danger opening easily with a simple action of lever down. Random security coding function When you enter your home with friends or other people, you don't want to show secret codeto them. In this case, you may press any number randomly without limitation and then enter your secret code at nal.
  • Page 4 Safety precautions Do not disassemble or alter the lock. Assembling or disassembling the door lock may damage the product. Damages to the product caused by unauthorized persons may result in damages to your property. Please contact our Customer Service. If the product generates harmful gased or smoke,please remove the batteries immediately from the product.

  • Page 5: Table Of Contents

    Contents To be read before using Product composition and components Name and function of each part How to check battery capacity/How to replace battery How to apple external power in the emergency How to use mechanical override key Basic function How to use touch-pad and random security coding function How to register secret code How to register/delete card key...

  • Page 6: To Be Read Before Using

    To be read before using Product composition and components Name Remark Product specification 1. Front Ass’y 76(W) x 306(H) x 28(D) Including rubber pad 2. Back Ass’y 71(W) x 298.6(H) x 30.7(D) 76mm x 303.6(H) x 7.9(D) 3. Back Cover Including rubber pad 4.

  • Page 7: Name And Function Of Each Part

    To be read before using Name and function of each part - Exterior modular Battery replacement indicator When the battery is low, red lamp is flickering. Status indicator Indicate operation status by 8 colors. Touch type numeric pad Input secret code for opening door. Card key Card key touch plate Touch the registered card key...
  • Page 8 To be read before using Name and function of each part - Exterior modular Battery cover Push up to open the battery cover [10 key] button For registration of secret code. Battery 8 pcs (1.5V, "AA" size, LR6 Alkaline) [R/C] button For registration of card key or optional remote key.

  • Page 9: How To Check Battery Capacity/How To Replace Battery

    To be read before using How to check battery capacity/How to replace battery 1. Check battery capacity Touch the front pad Press [ Press [ GREEN- High / ORANGE - Low / RED - Very low (Replace battery immediately) 2. Battery replacement 1.

  • Page 10: How To Apple External Power In The Emergency

    To be read before using How to apply external power in the emergency When the battery is entirely exhausted and door lock is not activated, please contact 9V (6LF22) battery to emergency power terminal. Once the door lock is activated, open the door by secret code and replace the batteries in back ass'y.

  • Page 11: Basic Function

    Basic function How to use touch-pad and random security coding function Random security coding function - Press any number randomly without limitation and then enter your secret code at final. With this function, you can open the door without revealing your secret code to others.

  • Page 12: How To Register/Delete Card Key

    Basic function How to register/delete card key 1.Card key registration Open the battery cover Press button shortly Touch the card key one by one. 2.How to remove card key(Delete all) Up to 20EA available Biriririk~ Bik~ Press button shortly Press All card key data deleted.
  • Page 13 Basic function How to open from outdoor (Mute function) 1.Open the door using secret code Press Press secret code Touch the front pad (Ex : 1234) pull down the handle to open the door 2.Open the door using card key 1) Touch the registered card key to card contact point 2) Pull down the handle and open the door 3.

  • Page 14: How To Close From Outdoor

    Basic function How to close from outdoor 1. Close the door at auto-locking mode When the door is closed, it is locked automatically with beeping sound. 2. Close door at manual-locking mode Touch the front pad Press button, then door will be locked. At manual-locking mode, door is not locked automatically even though the door is closed.

  • Page 15: How To Open/Close From Indoor

    Basic function How to open from indoor Just pulling down the handle, door lock is opened at anytime. “PANIC RELEASE TYPE” What's "PANIC RELEASE"? Door can be opened with simple action of pulling down the handle. Even the door lock is out of order, people can escape easily in the emergency such as fire etc.

  • Page 16: How To Use Remote Key (Optional Function)

    Basic function How to use remote key (Optional function) 1. Remote key registration Max. 10EA of remote key can be registered Press any button on remote key, then registered. For registration of several remote keys, press button of each key one by one. Press [R/C] button shortly Open the battery cover 2.

  • Page 17: Applications

    Applications Auto-locking system When the door is closed, it will be locked automatically. (Please refer to page 16 for setting method.) Auto-relocking system If the door is not opened within 7 seconds after input secret code, it will be relocked automatically to protect user's property.

  • Page 18: How To Set Auto/Manual Locking System

    Applications How to set auto/manual locking system 1. In Auto-locking mode, door will be locked automatically after closing. 2. In Manual-locking mode, door will be locked with pressing manual lock button after closing. Touch the card key Press secret code Touch the front pad Press (Ex : 1234)

  • Page 19: How To Control Volume

    Applications How to control volume Volume can be controlled by 8 levels. Press secret code Touch the card key Touch the front pad Press (Ex: 1234) 2 [Volume down] mode Press again 3 [Volume up] mode Reference Indicating Color For Volume level (Total 8 levels) Mute:Red Max:volume:White (8 level)

  • Page 20: Warning Function Against Mischief Or Hacking

    Applications Warning function against mischief or hacking If wrong secrect code or unregistered card is applied over 5 times, alarm system is activated with warning sound and all the function of door lock is suspended for one minute. Applying wrong secret code over 5 times With warning alarm sound system Applying unregistered...

  • Page 21: How To Install

    How to install-1 (Mortise lock) Installation method for left handed door and right handed door is same Before Installation, adjust the direction of latch bolt and striker as per door opening direction Mortise lock installation Insert mortise body to mortise hole on side door and fix with screws.
  • Page 22 How to install-2 (Product) Check point before install After complete “How to install-1 (Motise lock)” , proceed “How to install-2 (Product)”. Insert handle shaft to “handle shaft hole” of installation template and stick the template to indoor side. Fold the M5x30 2 pcs template along to folding line.
