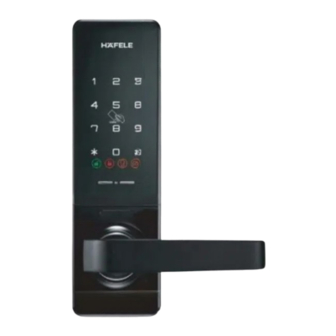

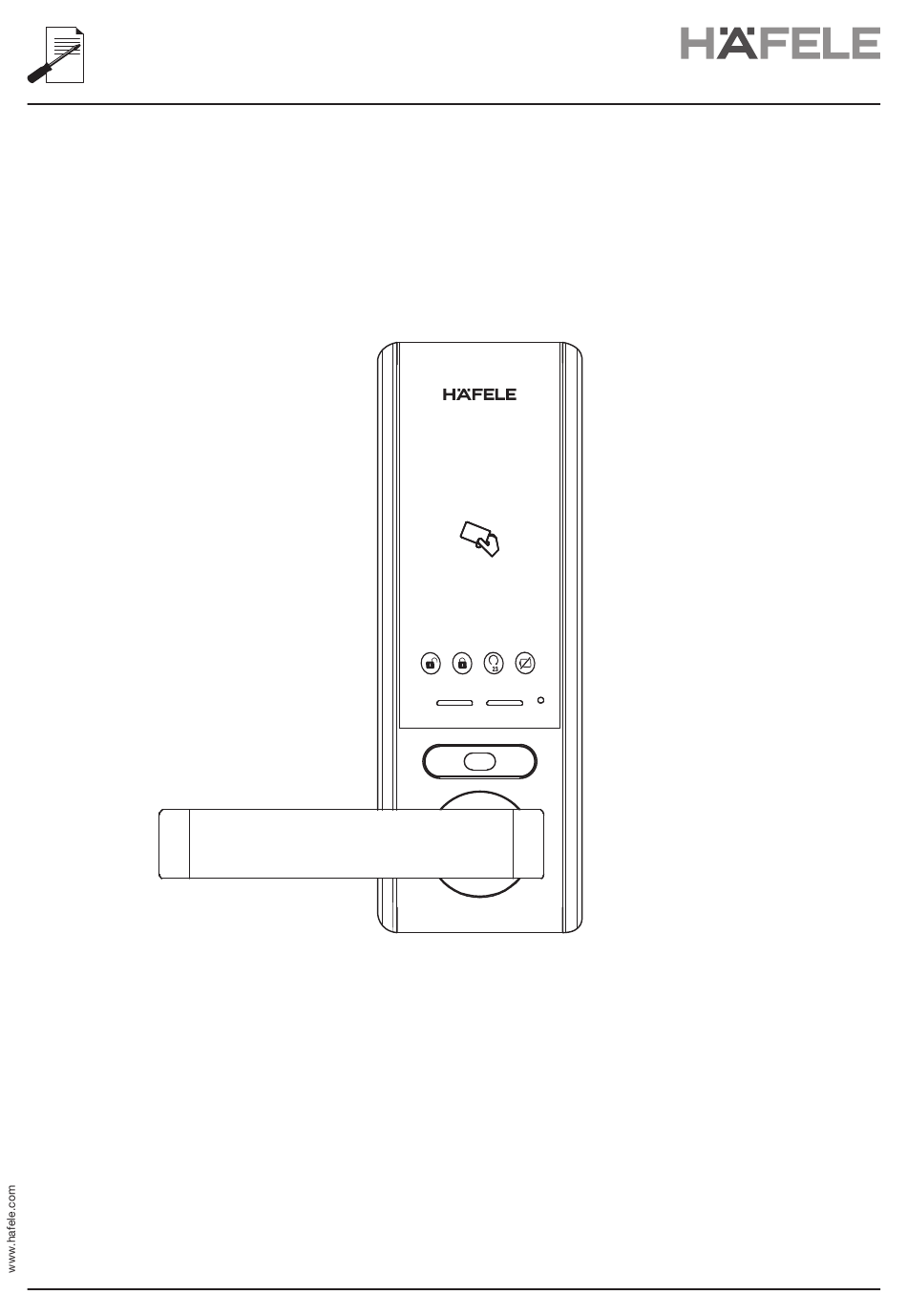

- Page 1 Digital door lock Model EL6000 CARD Restart EL6000 User Manual...
- Page 2 Product features Three way solution Available to use one solution of Password, Key card / tag as well as key override. Random security coding function When you enter your home with friends or other people, you don't want to show secret code to them.
- Page 3 Safety precautions Do not disassemble or alter the lock. Assembling or disassembling the door lock may damage the product. Damages to the product caused by unauthorized persons may result in damages to your property. Please contact our Customer Service. If the product generates harmful gases or smoke, please remove the batteries immediately from the product If you do not take this step immediately, the product may suffer severe damage.
-
Page 4: Table Of Contents
Contents Read before using Basic function Product composition and components ..... How to open from outdoor Name and function of each part ........ (secret code, card / tag, mute function) ..How to know the battery exchange How to lock from outdoor ......time/replace battery ........... -
Page 5: Read Before Using
Read before using Product composition and components CARD PUSH Restart ACCESS CARD ACCESS CARD User manual Instal l a tion Templ a te Name Product specification Remark 1. External module (WxHxD) 75 x 240 x 20 mm Including rubber pad 2. -
Page 6: Name And Function Of Each Part
Read before using Name and function of each part External module Numeric touch screen Input secret code for opening door. Key card / tag touch area Touch the register key card / tag key to open the door. Reset button To reset program, In case of temporary error rather than product malfunction. -
Page 7: How To Know The Battery Exchange Time/Replace Battery
Read before using How to know the battery exchange time / replace battery Di~Di~Dee~Dee~ Di~Di~Dee... PUSH When the battery voltage gets Separate battery cover by pushing Replace all 4 batteries to downed, it’s the battery to upper direction arrow direction new one in same position as arrow mark by finger. -
Page 8: How To Apply External Power In The Emergency
Read before using How to apply external power in the emergency When the battery is entirely exhausted and door lock is not activated, please contact 9V (6LF22) battery to emergency power terminal. Once the door lock is activated, open the door by secret code or key card and replace the batteries in internal module. -
Page 9: How To Use Touch-Pad And Random Security Coding Function
Read before using How to use touch-pad and random security coding function Random security coding function - Press any number randomly without limitation and then enter your secret code at final. With this function, you can open the door without revealing your secret code to others. -
Page 10: How To Change Mode (Normal Mode Safety Mode)
Read before using How to change mode (Normal mode How to change mode (Normal mode Safety mode) Safety mode) On safety mode manager code is required when change secret code or register / delete key cards and key tags Note •... -
Page 11: Normal Mode
Read before using How to register secret code in normal mode Open battery cover and press Press new secret code. Press [ ] , then new code is [ INPUT BUTTON ] shortly (3~19 digits) (Ex : 1234) registered with (Di~Dee~Dee) sound. (one short beep sound) Note •... -
Page 12: How To Delete All Card Key / Tag In Normal Mode
Read before using How to delete all key card / tag in normal mode Open the battery cover and press[ INPUT BUTTON ] shortly (one short beep sound) Press [ ] 2 times Press [ ] in order the complete Note •... -
Page 13: Safety Mode
Read before using How to register secret code in safety mode Manager code shall be controlled by authorized person for security. Registered manager Open the battery cover and press code 3~19 digits. (EX.6789) [ INPUT BUTTON ] shortly (two short beep sound) Press [ ] Press [ ] Input new security code... -
Page 14: How To Register Key Card / Tag In Safety Mode
Read before using How to register key card / tag in safety mode Open the battery cover and press Enter manager code Press [ [ INPUT BUTTON ] shortly (Ex : 6789) (two short beep sound) CARD CARD To register CARD more key card / tag (Max.50EA of... -
Page 15: How To Delete All Key Card / Tag In Safety Mode
Read before using How to delete all key card / tag in safety mode When the key cards and key tags are deletes, existing registered key card and key tag are completely deleted. Then, nearly register key card and key tag to be used. Open the battery cover and press Enter manager code Press [... -
Page 16: Basic Function
Basic function How to open from outdoor ( Secret code, card / tag, Mute function) 1. Open the door using secret code Touch the front pad Enter secret code Press [ ] and door (Ex : 1234) is unlocked (Di~Dee~Dee) 2. -
Page 17: How To Lock From Outdoor
Basic function How to lock from outdoor 1. Lock the door at auto-locking mode ♪~Ding-Dong CARD When the door is closed, It is locked automatically. (Ding-Dong) Restart 2. Lock door at manual-locking mode ♪~Ding-Dong CARD Close door and touch the front pad then press [ ] door will be locked. -
Page 18: How To Open From Indoor
Basic function How to open from indoor PANIC RELEASE TYPE Just pulling down the handle, door lock is opened at anytime. What's "PANIC RELEASE"? PUSH Door can be opened with simple action of pulling down the handle. Even the door lock is out of order, people can escape easily in the emergency such as fire etc. -
Page 19: Applications
Applications How to open / close with [ ] button from indoor Press while lock status, it will be unlocked Press while unlock status, it will be locked PUSH PUSH Note • [ ] is unusable to lock / unlock the door while on double locking mode How to set double locking function In [Double lock] mode, function of door lock is suspended and can't open the door from outside. -
Page 20: Auto-Locking System
Applications Auto-locking system When the door is closed, it will be locked automatically. (Please refer to next page for setting method.) ♪~Ding-Dong CARD Restart Auto-relocking system If the door is not opened within 7 seconds after input secret code, key card/tag. it will be relocked automatically to protect user's property. -
Page 21: How To Set Auto/Manual Locking System
Applications How to set auto/manual locking system In Auto-locking mode, door will be locked automatically after closing. In Manual-locking mode, door will be locked with pressing [ ] button after closing. Open the battery cover and press Press [ ] [ INPUT BUTTON ] ♪Di~Dee~Dee (To auto-locking mode) -
Page 22: How To Control Volume Level
Applications How to control volume level Open the battery cover and press Press [ 1 ] , [ 3 ] and [ ] in order to control [ INPUT BUTTON ] volume level (Di~Dee~Dee) 1 : Volume down Press [ ] complete with 3 : Volume up sound (Di~Dee~Dee) -
Page 23: Warning Function Against Mischief Or Hacking
Applications Warning function against mischief or hacking ♪Birik Birik~ CARD After alarm sound, system is suspended for 1 minutes Restart Applying wrong secret code over 5 times Warning alarm function against trespassing by force If there is any trying of trespassing by force, it is warning with strong alarm sound for 1 minutes. How to release warning sound ♪Birik Birik~ 2. -
Page 24: Reset Function
Applications Reset function It’s used for program resetting by pressing reset button in case of temporary error rather than product malfunction Note • All secret code and key cards / tags aren’t deleted. Fire sensing function (built-in fire detection sensor) When the thermal detection sensors heat (60 C 10 C ), the door will be automatically opened. -
Page 25: Fault Diagnosis And Troubleshooting
Applications Fault diagnosis and troubleshooting Symptoms Troubleshooting Open a door using key card / tag and register new password Cannot remember password All functions are not available for 1 minute after failure of 5th attempt. Password input failure (5 attempts) Wait for 1 minute and set new password or key card / tag Door is not automatically locked Check if auto locking function is enabled...
