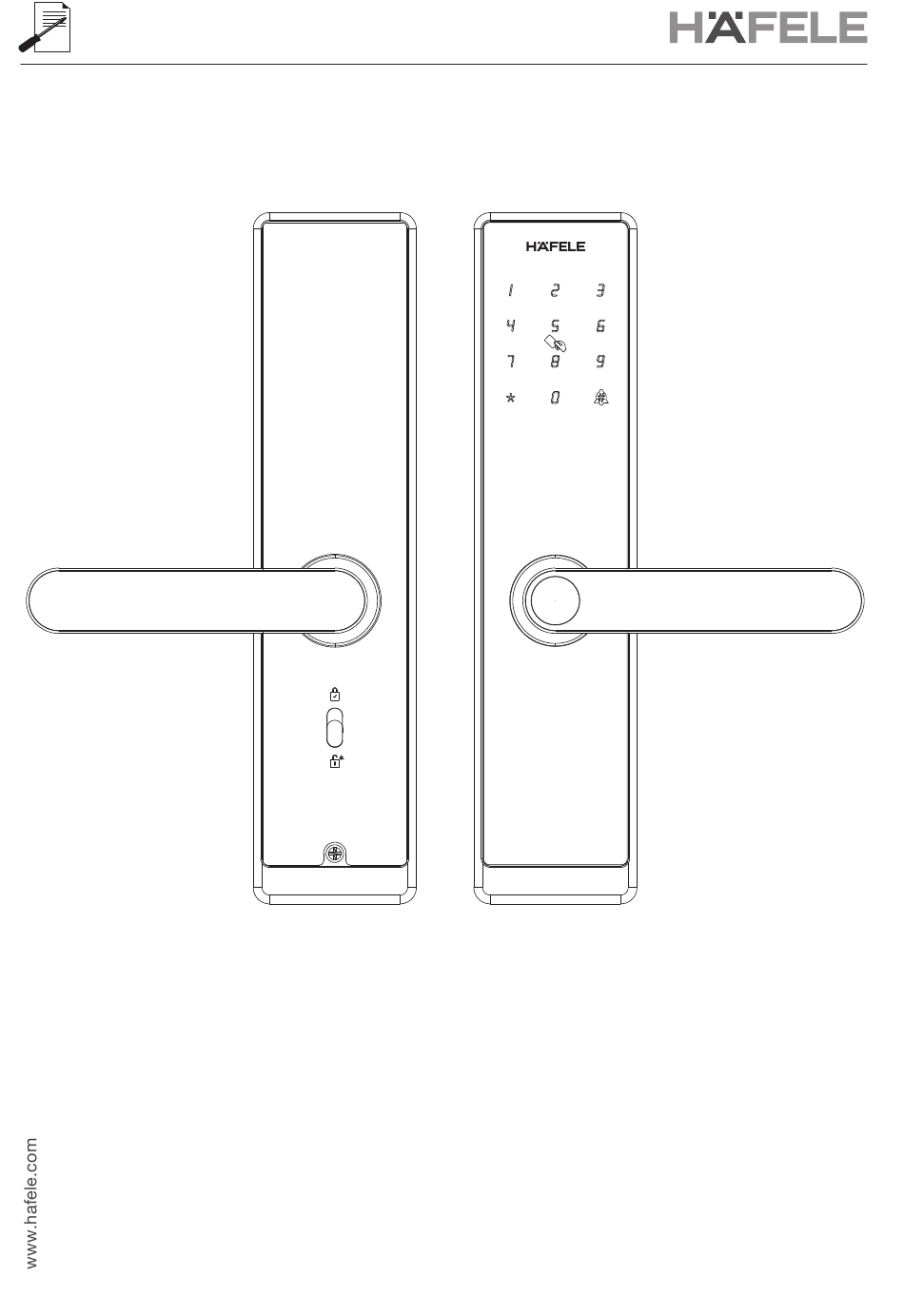

- Page 1 Digital door lock Model DL6110 DL6110 User manual *The contents of this user manual are subject to change without prior notice to the user in order to enhance performance of the products.
-
Page 2: Table Of Contents
INDEX Read before using Product features..........................Product Specification........................How to use How to unlock by key........................How to use emergence power supply....................How to install and replace battery....................How to restore to factory default settings..................Privacy mode..........................How to set Operation Instruction........................ -
Page 3: Read Before Using
Read before using Product features Items Sub-items Specification Fingerprint 100 pcs Password 150 pcs Card 150 pcs Unlock way Bluetooth key Unlock via Hafele Smart Living App Mechanical key 2 Keys 4 pieces of 1.5V AA Working voltage alkaline battery Low voltage alarm 4.6V - 4.8V Power supply... -
Page 4: Product Specification
Read before using Product Specification Exterior Panel Touch Keypad Card Reader Area 136 ± 1 Fingerprint Sensor Exterior Handle Mechanical Key Hole Type-C USB Power Supply Socket Type-C USB Mechanical Key Hole Power Supply Socket Interior Panel Battery Case Screw Hole Reset Button Interior Handle Privacy Button... -
Page 5: How To Use
How to use How to unlock by key 1. Insert the key into the key hole at bottom of Exterior panel. 2. Turn it to the left-side by 90°. 3. Press down the handle to open the door. Do not press down the handle while rotating the mechanical key. -
Page 6: How To Install And Replace Battery
How to use How to install and replace battery 1. Remove battery cover from the interior panel. 2. Install 4 pieces of AA alkaline battery into the battery case. 3. Re-install the battery cover. Step 1 Step 2 1. Pay attention to the positive and negative pole when install the battery. 2. -
Page 7: Privacy Mode
How to use Privacy mode When switch to " ", privacy mode is turned on. Only the first administrator PIN code that registerfrom the lock, dynamic PIN code created by administrator on APP and mechanical key can unlock the door from outside. -
Page 8: How To Set
How to set Operation Instruction Function of key 1. Key " ": (1) When system is in sleep mode, press key " " for door bell: (2) After finish inputting password, press key " " for confirmation. 2. Key " * " is return/ escape key. *Importance: First step is to set your own administrator password before connect the lock with Hafele Smart Living App. -
Page 9: How To Set User Key Tag
How to set How to set user key tag (1) Touch keypad to wake up system. (2) Press key" * " + " " + administrator password + " ". (3) Input key tag and follow the voice prompt to finish setting key tag. How to turn on passage mode (1) Input enrolled fingerprint, password or key tag, hear voice prompt "lock opened". - Page 10 How to set How to connect the lock to APP Smart Home Platform Step 3 Step 4 Click"Enable Bluetooth While searching for adding network distribution" device, operate on the smart > "Next". lock as following: (1) Touch keypad to wake up system.
-
Page 11: Associated Users
How to set Associated Users Associate the user information set on the lock with the APP member If an user 's fingerprint/ code/ card had been added on the lock, you can associate user's unlock information with the member on the App as following. A maximum of 254 unlocking information can be associated. Step 1 Click "An unlock method is not associated wtih a member. -
Page 12: Basic Functions Of The App
How to set Basic functions of the app Introduction to some functions You can manage almost the full functionality of your lock on your phone. • Administrator data management • User data management • Unlock records • Member management • Dynamic password •... -
Page 13: Daily Maintenance
Daily maintenance 1. Do not expose the product to corrosive substances to avoid damage to the protective cover. 2. When cleaning the product, please wipe with a soft cloth. 3. If there is a low battery alert, please replace all the batteries in time and make sure they are properly installed.
