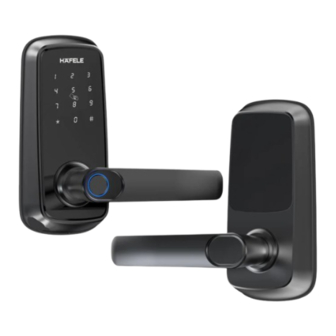

- Page 1 Digital door lock Model DH2100 DH2100 Installation guide & User manual * The contents of this user manual are subject to change without prior notice to the user in order to enhance performance of the products.
-
Page 2: Table Of Contents
Contents Read before using Product features ............................Warnings ..............................Product specifications ..........................Installation guide Components............................Preparing for installation........................... Installation steps............................Lock settings Factory default settings.......................... Key operation............................Demo mode............................Add the admin data..........................Add the user data........................... Delete access right..........................Passage/auto locking modes......................... -
Page 3: Read Before Using
Read before using Product features Five ways solution Five electronic locking modes: Fingerprint, PIN code, key card, Häfele Smart Living App and emergency key. Admin, User PIN code(6-8 digits): Maximum capacity is 100. Admin, User card: Maximum capacity is 100. Admin, User fingerprint: Maximum capacity is 50. -
Page 4: Warnings
Read before using Warnings * Read and understand all instructions before use. * If damage is caused by failure to follow this instructions, the warranty does not apply. * Only use alkaline batteries. It is not recommended to use special batteries such as EVOLTA, etc. * Do not expose the product and accessories to rain or water. -
Page 5: Installation Guide
Installation guide Components 1. Front panel 6. Latch 11. M4 x 20 mm 2. Stud(2pcs) 7. Mounting plate Screw (2pcs) 3. Optional stud for 8. M4 Screw(2pcs) 12. M3 Screw optimal fixation* 9. Optional screw for 13. Battery cover 4. Split lock pin optimal fixation* 5. -
Page 6: Preparing For Installation
Installation guide Preparing for installation Check door open direction This product fits for all door open directions Left-in / Left-out / Right-in / Right-out. Indoor Indoor Outdoor Outdoor Left-in Left-out Indoor Indoor Outdoor Outdoor Right-in Right-out... -
Page 7: Installation Steps
Installation guide Preparing for installation Adjust the backset This latch lock can be adjusted to a backset of 60 – 70 mm by following the description below. 2-3/8” 2-3/8” (60mm) (60mm) 2-3/4” 2-3/4” (70mm) (70mm) Installation steps 1. Mark and drill bores using the installation template first, then fix the latch lock into the door frame. - Page 8 Installation guide Installation steps Change handle direction (for front and back panel) Please confirm the door opening direction Left opening door Right opening door Reverse Front Lever Handle Hold the handle downward by 35° Left-hand open Right-hand open Step 1 Step 2 Hold the handle downward by 35°, and then Turn the handle 180°...
- Page 9 Installation guide Install split lock pin Spindle Split Pin Install front panel Mounting plate M4 Screw Connecting cable of exterior trim M4 Screw...
- Page 10 Installation guide Install back panel Back panel M4 x 20 mm Screw M4 x 20 mm Screw Connect the front cable into the related socket...
-
Page 11: Lock Settings
Lock settings Factory default settings Settings Factory defaults Enabled Bluetooth Speaker Enabled Wrong code entry limit 6 times 1 minute Shut down time English Voice guide language *Important: First step is to set admin PIN code. Key operation Input the key by pressing * then # Input administrator/master right Enter card Enter fingerprint... -
Page 12: Demo Mode
Lock settings Demo mode When the lock is new or restored to factory setting, any fingerprint, keycard or PIN code can open the door. Add the admin data Admin PIN code Enter same Input PIN code 6-8 PIN code digits again (Exit menu) Successful registration. -
Page 13: Add The User Data
Lock settings Add the user data User PIN code Enter same Input PIN PIN code code 6-8 digits again (Exit menu) Successful registration. Please register administrator (user). Inconsistency password, register fail. User key card (Exit menu) User fingerprint (Exit menu) 1. -
Page 14: Delete Access Right
Lock settings Delete access right You cannot delete access right from the lock directly. Please use Hafele Smart living App for deleting. Please see how to operate on page 15. Passage/auto locking modes After unlocking by PIN code, card or fingerprint, number 2 and number 8 will light up for 3 seconds. -
Page 15: Application Settings
Application settings Bluetooth connection setting Please carefully do the following steps to connect the lock with the Hafele Smart Living App. 1. Download Application “Hafele Smart Living” from the App Store and Play Store. 2. Turn on the phone’s Bluetooth and open the APP. 3. -
Page 16: Delete The Admin/User Data Via App
Application settings Delete the Admin / User data via APP 1. Turn on the phone’s Bluetooth and open the APP. 2. Click the “Member Management” icon , then choose the user account. 3. Choose the access type to be deleted (Fingerprint, PIN code, Card), then click “Delete”. You must be within range of the lock’s Bluetooth connection. -
Page 17: Adjust The Volume Via App
Application settings Adjust the volume via APP 1. Open the APP. 2. Click “More” icon. 3. Click “Lock Volume” menu. 4. Select the volume level (High, Normal, Low, Mute) 5. Then click “OK” You must be within range of the lock’s Bluetooth connection. Change the system language via APP 1. -
Page 18: How To Use
How to use Open and lock the door Open the door from outside PIN code Key card 1. Touch keypad 1. Enter the enrolled card by palm to lighten on the card icon area. keypad. Voice prompt “The lock 2. Enter the enrolled is opened”. - Page 19 How to use Open and lock the door Mechanical key The mechanical key can be used if the door lock has become unresponsive such as battery is fully discharged. Open the door as below steps. 1. Open the cover of key hole. 2.
-
Page 20: Service Features
Service features Type-C emergency power supply When the battery voltage is too low and cannot be opened from outside, connect a 5V power supply via Type-C USB port at the front. Then unlock the door and replace all batteries immediately. Type-C emergency power connector Restore to factory setting...
