Code:
BAR-003, BAR-004, BAR-005
Spectator Barrier System and Advertisement Mounts (Optional)
Product:
(Starter Kit)
BAR-003
1. 2 x 1.26m Upright
2. 1 x 2.1m Handrail
1 x Starter Fittings Pack
3. 2 x Elbow Clamp White
(Corner)
BAR-005
1. 2 x 1.26m Upright
5. 1 x 2.1m Handrail Mitred
1 x Corner Fittings Pack
4. 1 x Long Tee Clamp White
6. 1 x 3 Way Elbow Clamp White
BAR-003
BAR-004
BAR-005
IMPORTANT PLEASE READ THE
A S S E M B LY I N S T R U C T I O N S
CAREFULLY BEFORE STARTING
TOASSEMBLE YOUR GOAL

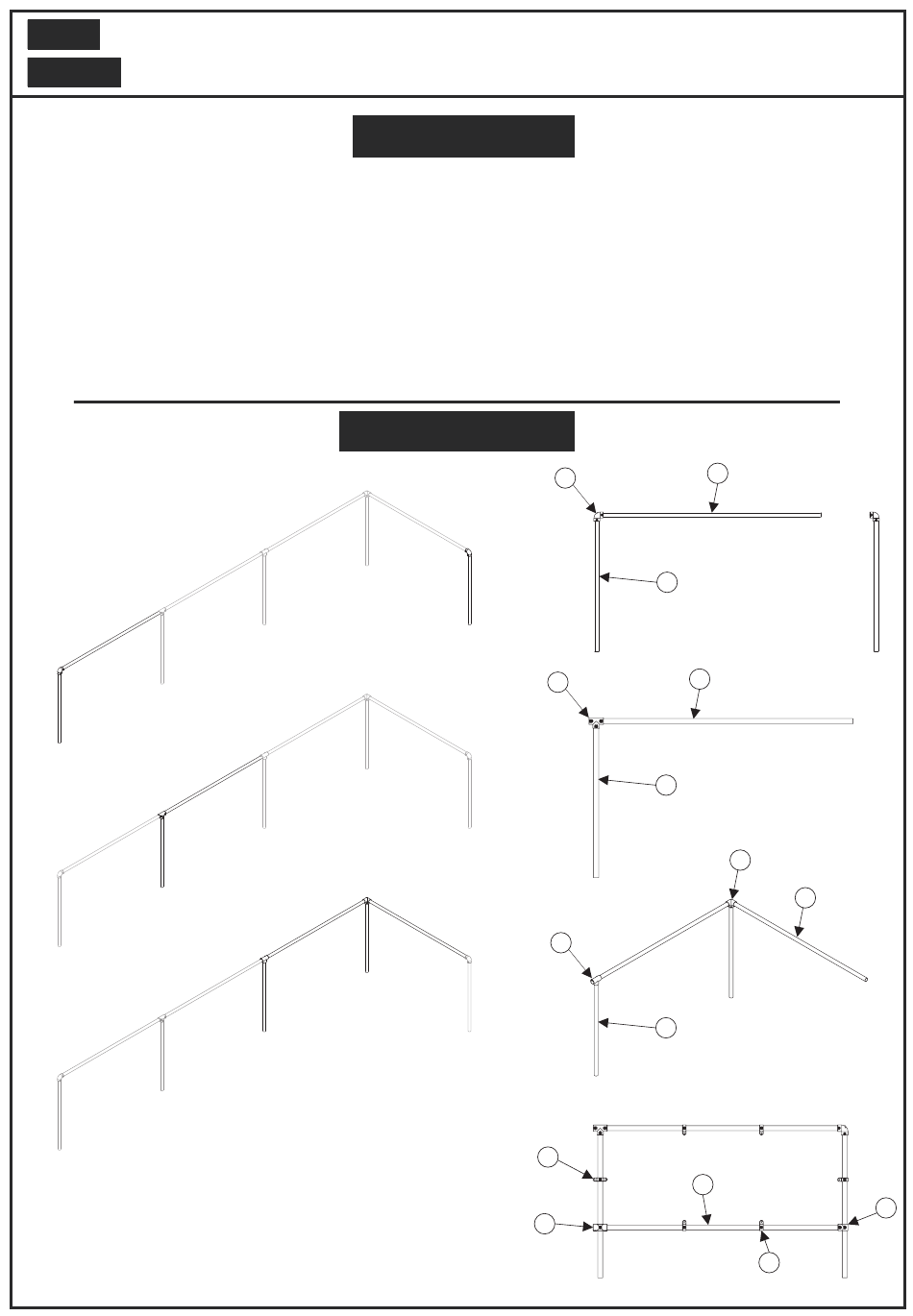

Pack Contents:
(FEP233)
(Pair)
(FEP231)
(contains)
(FPK203)
(PEP235)
(FEP233)
(Pair)
(FEP234)
(contains)
(FPK205)
(PEP234)
(PEP233)

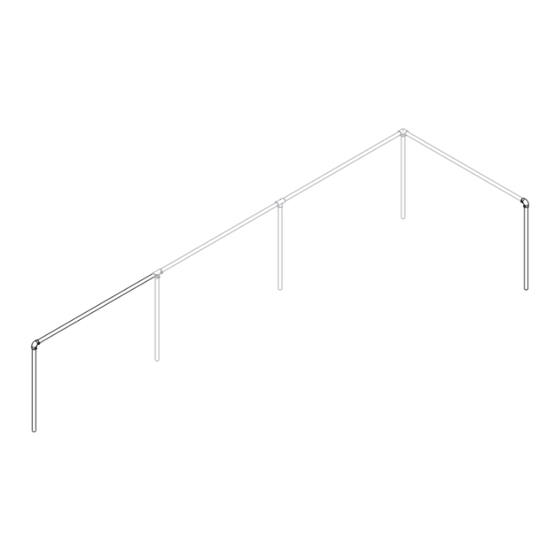

View of Product
BAR-004
(Mid Section)
1. 1 x 1.26m Upright
(Pair)
2. 1 x 2.1m Handrail
1 x Mid Fittings Pack
4. 1 x Long Tee Clamp White
Advertisement Board Add On
7. 2.05m Bottom Rail
8. Short Tee White
9. One Eyeclamp White
10. Double Eyeclamp White
11. Two Socket Cross Clamp White
3
4
4
Advertisement Board Add-On
10
11
©
Harrod UK Limited
(FEP233)
(FEP231)
(contains)
(FPK204)
(PEP234)
(FEP232)
(FEP236)
(FEP238)
(FEP239)
(FEP237)
2
1
2
1
6
5
1
7
9
INS003
Revision 1
28/06/2013
8
Fig. 1
Advertisement
Table of Contents
Related Manuals for Harrod BAR-003
Summary of Contents for Harrod BAR-003
- Page 1 INS003 Code: BAR-003, BAR-004, BAR-005 Revision 1 28/06/2013 Spectator Barrier System and Advertisement Mounts (Optional) Product: © Harrod UK Limited Pack Contents: (Starter Kit) BAR-003 BAR-004 (Mid Section) 1. 2 x 1.26m Upright (FEP233) 1. 1 x 1.26m Upright (FEP233)
- Page 2 INS003 Code: BAR-003, BAR-004, BAR-005 Revision 0 Spectator Barrier System and Advertisement Mounts (Optional) Product: Insert other barrier configurations Fig. 2 Using scissors (Do not use a knife), remove all the packaging and Identify the parts using the Pack Contents and Fig.
- Page 3 INS003 Code: BAR-003, BAR-004, BAR-005 Revision 0 Spectator Barrier System and Advertisement Mounts (Optional) Product: Internal Top View of Hand rail/Upright Loosen the grub screws in the 3 Way Elbow Clamp (6). Insert the mitred end of a 2.1m Mitred Handrail (5) as far as possible into the clamp, ensuring the orientation of the mitre cut is as shown in Fig.
- Page 4 INS003 Code: BAR-003, BAR-004, BAR-005 Revision 0 Spectator Barrier System and Advertisement Mounts (Optional) Product: Advertisement Board Mount Assembly: Insert other barrier configurations Fig. 2 Using scissors (Do not use a knife), remove all the packaging and Identify the parts using the Pack Contents and Fig.
- Page 5 INS003 Code: BAR-003, BAR-004, BAR-005 Revision 0 Spectator Barrier System and Advertisement Mounts (Optional) Product: Board Centres/Dimensions : 2100 2006 Ground Level 8.5mm Advertisement Board Dimensions/Hole Centres 1338mm 678mm 2035mm Fig. 6 Please contact your supplier and quote the following codes for recommended fixings;...
