Harrod RUG-045 Assembly Instructions

Code:
RUG-045/046/055
Product:
Heavy Duty Steel Rugby Posts
Heavy Duty Steel Rugby Posts
1. 4 x FEP281
2. 4 x FEQ715
2. 4 x FEQ678
3. 2 x FEQ650
4. 4 x PEQ685
RUG-055 Hinge assembly only
1. 4 x FEP281
Tools Required
1 x 22mm spanners
2 x 19mm Spanners
1 x Spirit Level
1 x Tape Measure
2 x Step Ladders
2
1
4

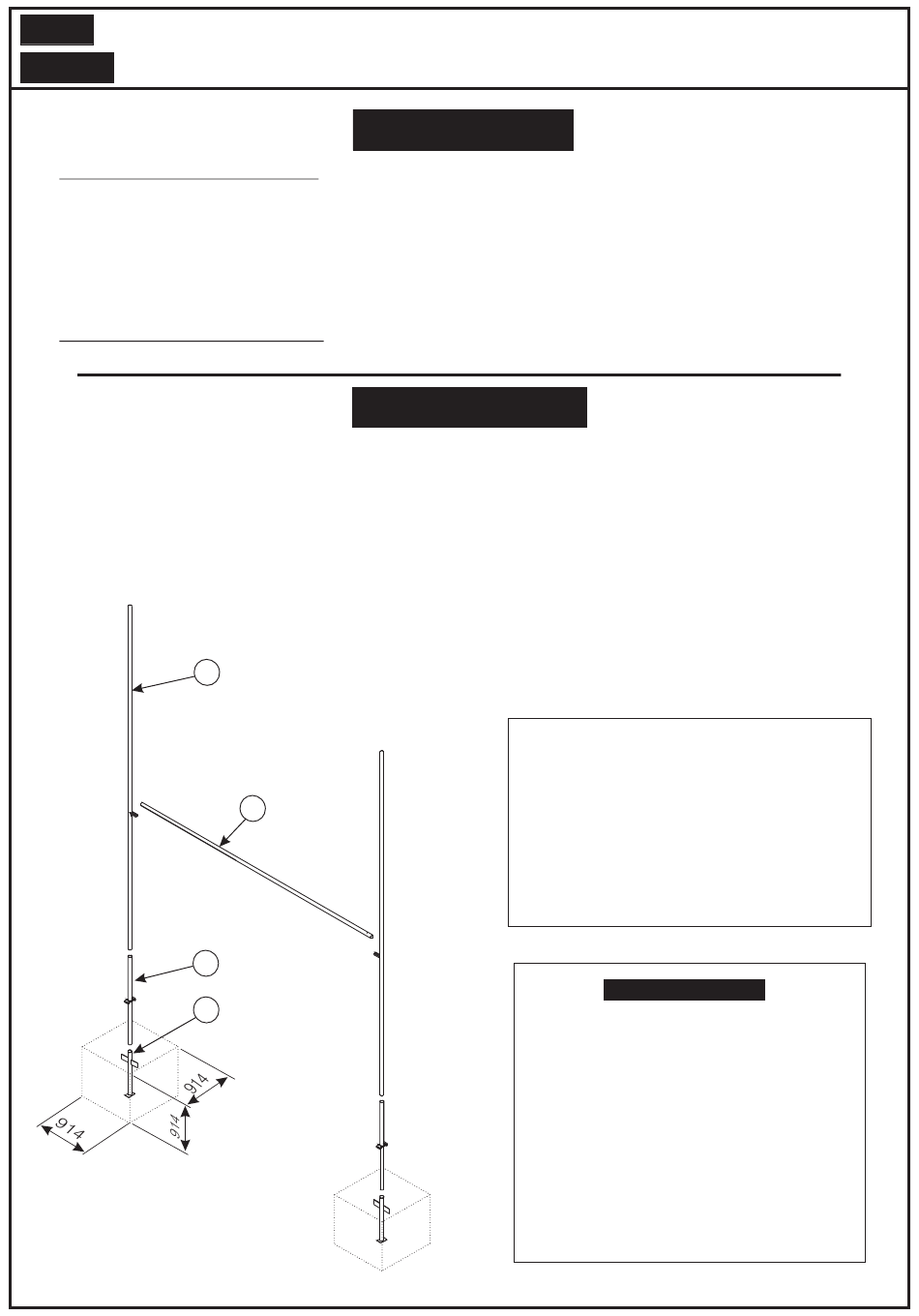

Fig 1
Pack Contents:
(RUG-046)
Hinge Assembly
(RUG-045)
Bottom Upright
(RUG-046)
Bottom Upright
Crossbars
Ground Socket
Hinge Assembly

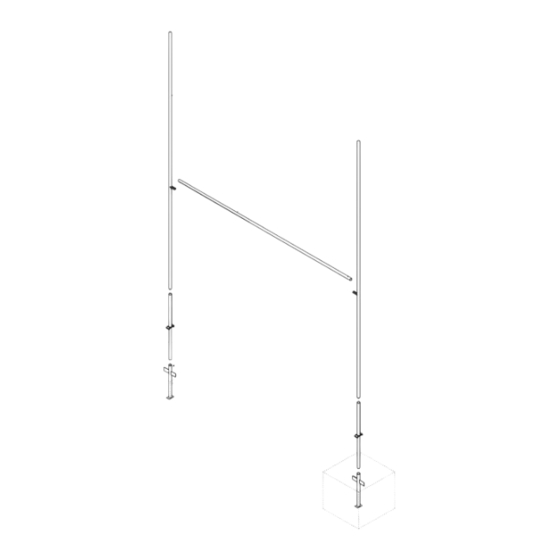

View of Product
3
Important note for about Crossbars
The Crossbar (FEQ650) is a universal
component that is used on other products. It
contains instruction number INS618. Please
ignore INS618 and use these instructions
(INS617) to install and assemble your posts.
IMPORTANT PLEASE READ THE ASSEMBLY
INSTRUCTIONS CAREFULLY BEFORE
STARTING TOASSEMBLE YOUR POSTS.
IMPORTANT Assembly of these posts
should not take place in windy conditions.
For safety reasons; Post Protectors must be
used with all Hinged Rugby Posts to cover the
hinge arrangement.
Important Note for RUG-055
If RUG-055 has been purchased for adapting
an existing set of rugby posts, you will need to
cut down your existing uprights as follows:
For sockets installed 25mm below ground
level the distance from the underside of the
channel to the bottom of the upright needs to
be 2909mm. For sockets flush with ground
level this needs to be 2884mm.
Safety Notes
1
A risk assessment must be carried out on the
erection of Hinged Rugby and RugbyAdaptors.
2
Always use mechanical assistance if the Risk
Assessment highlights this requirement.
3
Always check fasteners before use and tighten
where necessary.
4
Periodically apply grease to hinge fixing bolts to
pre-long the life the posts.
5
These posts should always be taken down in
windy conditions.
INS617
Revision 2
09/09/2015
