Harrod FBL-635 Quick Start Manual

Code:
FBL-635 and FBL-637
Product:

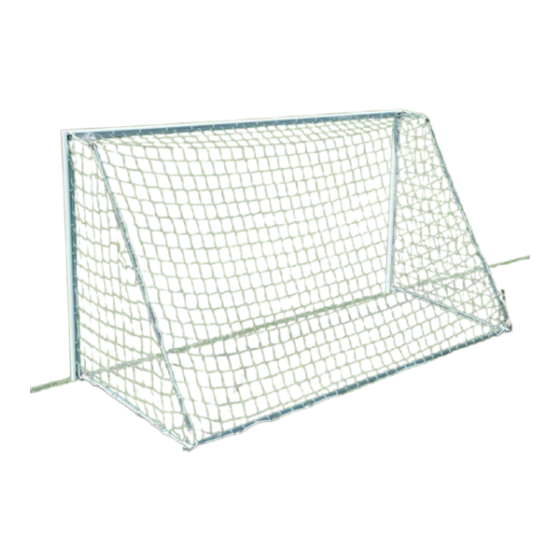

3G Aluminium Weighted Portagoal
Maintenance note: To ensure maximum manoeuvrability of the
weighted back bar, it is recommended to clean out any build-up of
debris from the rollers and bushes every 6 months. Remove the
roller as per Step 6 but in reverse order. Grease roller for improved
performance.
For information on goal post maintenance and inspection please
refer to "The FA Football Goals - Guidance Notes (July 2006)",
available for download at www.thefa.com
IMPORTANT PLEASE READ THE
A S S E M B LY I N S T R U C T I O N S
CAREFULLY BEFORE STARTING
TO ASSEMBLE YOUR GOAL
Tools Required
2 x 17mm Spanners
1 x Pair Scissors
1 x Mallet
1 x Step Ladder
3
Roller
8
12

Pack Contents:

.

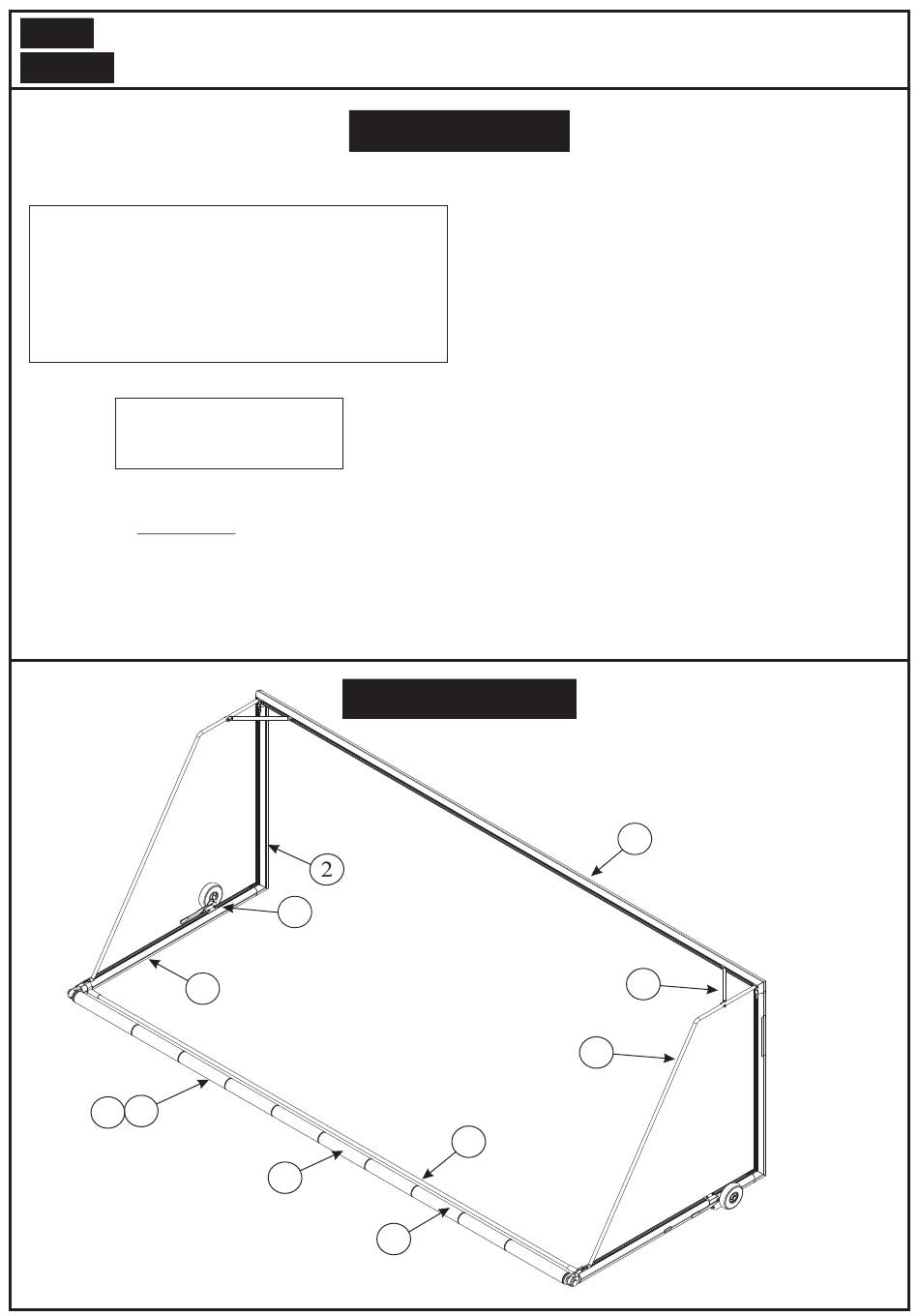

View of Product
Upright
9
Hi-Raise Wheel
Side Bar
Axle Bar
6
(inside)
Ballast (inside)
(if applicable)
FBL-635 7.32x2.44m 3G WEIGHTED PORTAGOAL
1: 2 x FEP360 7.32m CROSSBAR
2: 2 x FEP284 2.44m UPRIGHT
3: 2 x FEP402 2386mm SIDEBAR
4: 4 x PEP343 SNR NET SUPPORT
5: 4 x PEQ336 NET SUPPORT BRACE
6: 2 x FEQ308 7.32m AXLE BAR
7: 2 x PEQ710 7.32m NET BAR
8: 24x STE029 600mm ROLLER
9: 1 x FPK321 HI-RAISE WHEELS
10: 1 x FPK560 7.32x2.44m FITTINGS PACK
FBL-637 6.4x2.13m WEIGHTED PORTAGOAL
1: 2 x FEP361 6.40m 3G CROSSBAR
2: 2 x FEP286 2.13m 3G PORTAGOAL UPRIGHT
3: 2 x FEP402 SNR/JNR WTD SIDEBAR
4: 2 x PEP291 1.83m WTD P/GOAL NET SUPPORT
5 4 x PEQ336 NET SUPPORT BRACE
6: 2 x FEQ376 6.4m WEIGHTED GOAL AXLE BAR
7: 2 x PEQ711 JUNIOR WTD P/GOAL ALI NET BAR (
8: 16x STE029 600mm ROLLER
9: 1 x FPK321 HI-RAISE WHEELS
10: 1 x FPK563 4.88x1.83m FITTINGS PACK (
11: 4 x FEQ511 3230mm BALLAST TUBE
12: 4 x SEP028 747MM WG ROLLER
Net Support
Brace
Net Support
7
Net Bar
11
(PAIR)
(PAIR)
(PACKED IN 2xFEQ320)
(PACKED IN 2xFEQ320)
(PACKED IN 1xFEQ805)
(PACKED IN 6xFEQ307)
(SEE NEXT PAGE)
(PAIR)
(PAIR)
(PACKED IN 2 x FEQ291)
(4 x FEQ307)
SEE NEXT PAGE)
(2 x FEQ311)
Crossbar
1
5
4
INS632
Revision 1
14/12/2017
© Harrod UK Limited
(PACKED IN 2 x FEQ291)
1 x FEQ806)
