Code:
BAS-029, BAS-030 & BAS-031
Product:
Heavy Duty Basketball
PARTS:
1. 1 x Upright
2. 1 x Backboard
BAS-029
BAS-030
BAS-031
3. 1 x Ring
4. 1 x Net
(not shown)
5. 1 x Board Support L/H
6. 1 x Board Support R/H
7. 1 x Ring Plate (not required)
PEQ058 is a square plate that is not needed for
this particular goal.
1239mm
Ground Level

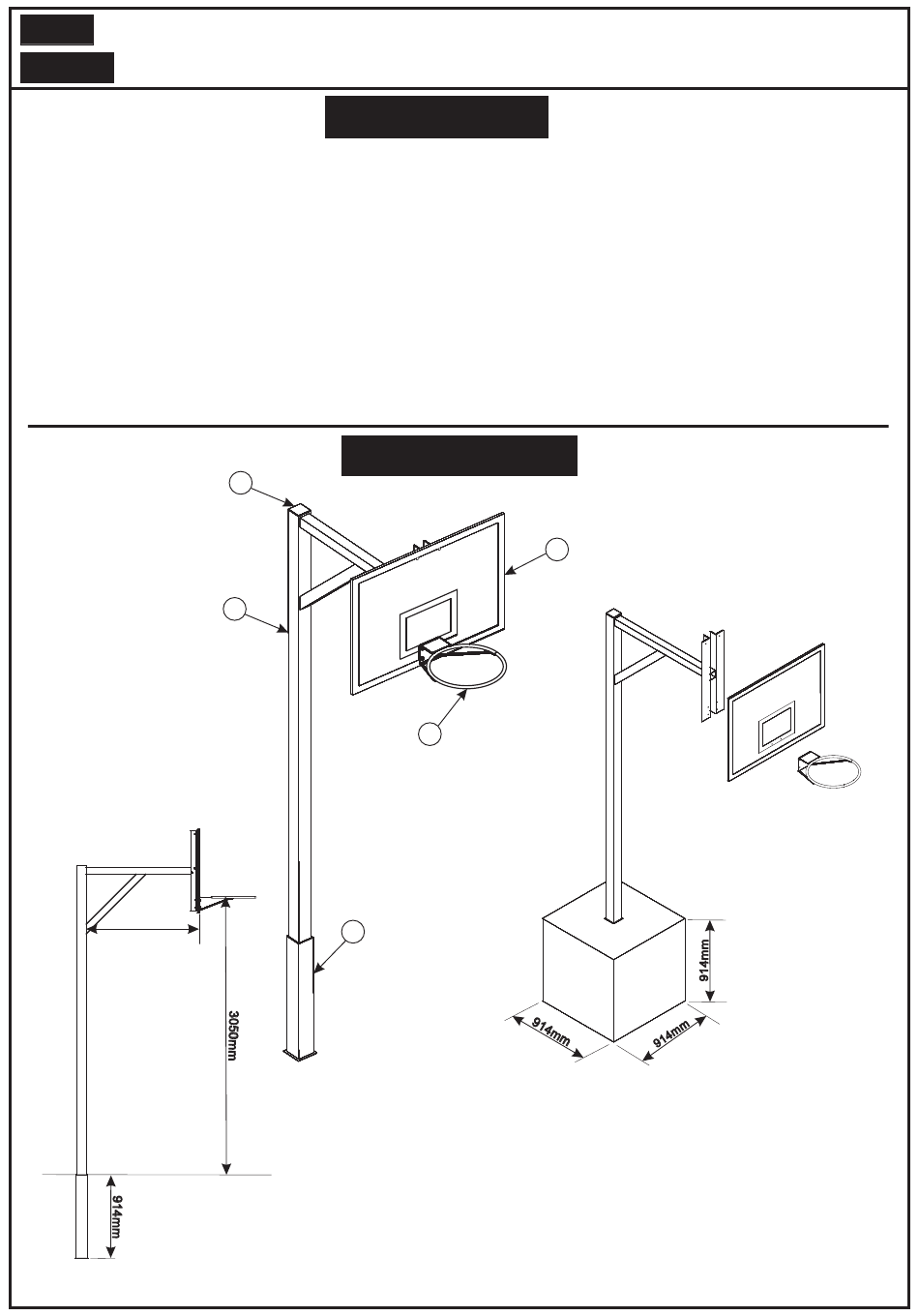

VIEW SHOWING DIMENSIONS
VIEW SHOWING DIMENSIONS
Pack Contents:
(FEQ070)
(FEQ079)
(FEQ073)
(FEQ075)
(PEQ059)
(BAS-001)
(PEQ071)
(PEQ072)
(PEQ058)

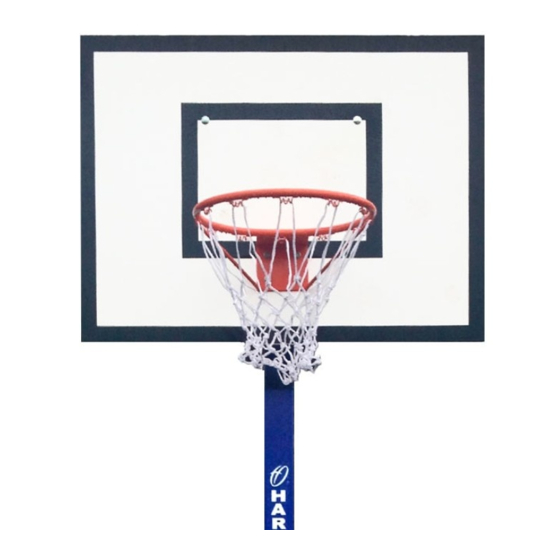

View of Product
14
1
13
SOCKET TYPE
8. 4 x M10 Nut
9 4 x M10 Nylock Nut
10. 4 x M10 50 long Bolt
11. 2 x M10 120 long BZP Bolt
12. 2 x M10 50 long Coach Bolt
13. 1 x Socket (Socket type only)
14. 1 x Cap
CONTENTS GIVEN ARE
FOR ONE GOAL ONLY
2
3
914x914x914mm Minimum
Concrete Cube.
©
Harrod UK Limited
FITTINGS:
(BOL200)
(BOL202)
(BOL310)
(BOL250)
(BOL311)
(PEQ075)
(CAP103)
INS508
Revision 3
25/04/16
