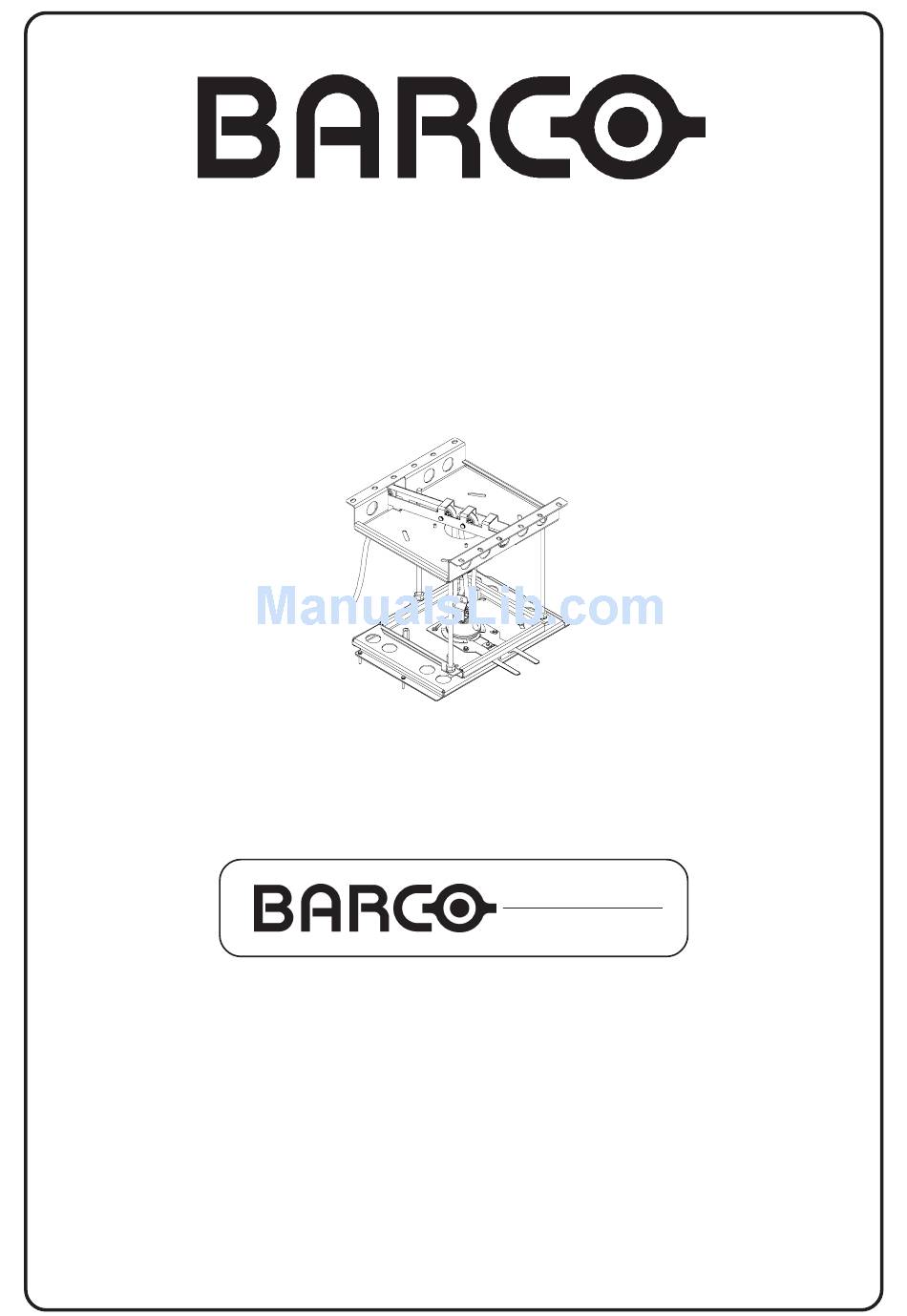

Page 1: Installation Manual
BARCO PROJECTION SYSTEMS Ceiling Mount CM50 R9827990 R9827991 INSTALLATION MANUAL Date: 08.05.2000 Rev: 03 Art. No.: R5975845... - Page 2 Caution Installing the CM50 for the 700 and 3000 series projectors should be performed only after you are thoroughly familiar with all of the following safety checks and installation guidelines. To do otherwise increases the risk of hazards and injury to the user.
- Page 3 1. Projector Installation possibilities. Configuration A The projector is mounted directly to Ceiling the ceiling with the use of the ceiling mount support without the pulley sys- tem. Ceiling Configuration B The projector is mounted at a dis- tance from the ceiling. The total mounting kit, support, rods and quick fixations are used to lower the pro- jector in order to match the projected...
- Page 4 Upper support Lock holder system Center plate Projector support Mounting Instructions...
- Page 5 Cord support Upper support Lock holder system Center plate Projector support Mounting Instructions...
- Page 6 Bolt and Washer (x4) Bolt and Washer (x6) Bolt and Washer (x4) Mounting Instructions...
- Page 7 4. Mounting the Upper Support to the ceiling 4.1 Determination of the mounting distance between SCREEN and FRONT CEILING SUPPORT Configuration A 17.35cm 16.9cm PD = perpendicular projector distance between screen and front side of the projector (see installation manual of the projector). Important: For the Projectors 700 series: the perpendicular distance between the support and the screen is the same value as the calculated PD.
- Page 8 Configuration B & C 17.35cm 16.9 cm CD= perpendicular distance from ceiling to highest edge of projector PD = perpendicular projector distance between screen and front side of the projector (see projector installation manual) Important: For the Projectors 700 series: the perpendicular distance between the support and the screen is the same value as the calculated PD.
- Page 9 4.2 Mounting the CEILING SUPPORT Mounting holes for bolts M10 Front Mounting Instructions...
- Page 10 4.3 Mechanical assembling and Installation Configuration A Mount first the lock holder system with four bolts and washers (16x7.2x4) to the upper support. Squeeze the arms of the lock holder system to check the correct functioning of the lock. Then, attach the upper support to the ceiling with at least 4 bolts (M10).
- Page 11 Configuration B Mounting the lock If the lock holder system is not yet mounted on the center plate, pro- ceed with this mounting. Mount the lock holder system with four bolts (M4x8) and washers (16x7.2x4) to the center plate. Squeeze the arms of the lock holder system to check the correct function- ing of the lock.
- Page 12 (continued) Mounting the projector on the ceiling support. Mounting Instructions...
- Page 13 Pulley cable Bolt A Supporting axle Mounting Instructions...
- Page 14 Configuration C (continued) Lifting up the projector Safety precautions : - Standing under the projector while lifting is dangerous and must be avoided ! - Lifting up the projector has to be done very slowly to avoid sway- ing. - Persons not involved with the installation have to be kept out of the working area.
- Page 15 ref. Order n°. Description 36 6161 nut M12 36 7385 washer DIN125 M14 80 5365 washer rubber 28x14x6 80 5355 upper support 80 1996 rod 735mm 36 31229 screw DIN933 M4x8 80 5364 washer 16x7.2x4 72 2551 lock fix P 80 5361 lock spring 3631049...
- Page 16 ref. Order n°. Description 36 6161 nut M12 36 7385 washer DIN125 M14 80 5365 washer rubber 28x14x6 80 5355 upper support 80 1996 rod 735mm 36 31229 screw DIN933 M4x8 80 5364 washer 16x7.2x4 72 2551 lock fix P 80 5361 lock spring 3631049...
