RYZ014A Evaluation Kit RYZ014AAA
All information contained in these materials, including products and product specifications, represents
information on the product at the time of publication and is subject to change by Renesas Electronics
Corp. without notice. Please review the latest information published by Renesas Electronics Corp.
through various means, including the Renesas Electronics Corp. website (http://www.renesas.com).
www.renesas.com
User's Manual
Rev.1.02 Jun 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RYZ014A and is the answer not in the manual?

Questions and answers

Related Manuals for Renesas RYZ014A

Summary of Contents for Renesas RYZ014A

  • Page 1 All information contained in these materials, including products and product specifications, represents information on the product at the time of publication and is subject to change by Renesas Electronics Corp. without notice. Please review the latest information published by Renesas Electronics Corp.
  • Page 2 Renesas Electronics disclaims any and all liability for any damages or losses incurred by you or any third parties arising from the use of any Renesas Electronics product that is inconsistent with any Renesas Electronics data sheet, user’s manual or other Renesas Electronics document.
  • Page 3 (WEEE), CE, UL, restricted substances (ROHS), FCC, FEE, and electromagnetic compatibility regulations. Renesas or its affiliates shall in no event be liable for any loss of profit, loss of data, loss of contract, loss of business, damage to reputation or...

  • Page 4: Table Of Contents

    User’s Manual RYZ014AAA RYZ014A Evaluation Kit Contents Getting Started ........................2 Evaluation Kit Contents ........................... 2 Prepare RYZ014AAA Evaluation Kit ....................... 3 Install the Drivers ............................. 7 Set the COM Ports ..........................8 Activate the SIM Card ..........................9 Configure Supported Operators ......................18 Connect to LTE Network ........................

  • Page 5: Getting Started

    RYZ014AAA RYZ014A Evaluation Kit 1. Getting Started 1.1 Evaluation Kit Contents The contents of the Evaluation Kit are: • One RYZ014AAA board • One Raspberry Pi Zero W • One Micro USB to USB cable • One Micro USB to USB converter •...

  • Page 6: Prepare Ryz014Aaa Evaluation Kit

    RYZ014AAA RYZ014A Evaluation Kit Cable D Micro RYZ014AAA USB to USB cable Cable C Micro USB to USB cable SIM Card Raspberry Pi Zero W HDMI mini to Power Cable E HDMI adapter F Figure 2. RYZ014AAA Kit Contents 1.2 Prepare RYZ014AAA Evaluation Kit 1.
  • Page 7 RYZ014AAA RYZ014A Evaluation Kit 2. Plug cable C (USB) into converter D (USB) Figure 4. Cable C to Converter D 3. Plug adapter D (microUSB) into port B2 Figure 5. Converter D to Port B2 R12UM0041EU0102 Rev.1.02 Page 4 of 33...
  • Page 8 RYZ014AAA RYZ014A Evaluation Kit 4. Insert µSD Card G into port A2 Figure 6. SIM Card to Port A2 5. Plug Power Cable E into port B1 (microUSB) Figure 7. Power Cable to Port B1 R12UM0041EU0102 Rev.1.02 Page 5 of 33...
  • Page 9 RYZ014AAA RYZ014A Evaluation Kit 6. Plug Power Cable into power 7. Using HDMI converter F is optional as the EVK can run headless Figure 8. HDMI Adapter R12UM0041EU0102 Rev.1.02 Page 6 of 33 Jun.01.21...

  • Page 10: Install The Drivers

    RYZ014AAA RYZ014A Evaluation Kit 8. Power on the device via the large power button on the CATM module if the LED is not green Figure 9. Assembled Setup 1.3 Install the Drivers When plugging the USB cable in your PC first time, you need to wait for approximately one minute to allow the drivers auto-install on Windows.

  • Page 11: Set The Com Ports

    RYZ014AAA RYZ014A Evaluation Kit Device Manager Window Figure 10. 1.4 Set the COM Ports The table below summarizes the COM ports under Windows and the corresponding configuration to the RYZ014AAA Evaluation Kit. Table 1. COM Ports Setting Port Enum Mapping...

  • Page 12: Activate The Sim Card

    RYZ014AAA RYZ014A Evaluation Kit COM28 (COMa) Setting In Progress Figure 11. 1.5 Activate the SIM Card A user account needs to be created to activate the SIM. Step 1: Access URL https://renesas.onetech.ai/register Figure 12. Access ONE Tech Step 2: Click Start 30-day trial and enter user details.
  • Page 13 RYZ014AAA RYZ014A Evaluation Kit Figure 13. Register as Company or Individual R12UM0041EU0102 Rev.1.02 Page 10 of 33 Jun.01.21...
  • Page 14 RYZ014AAA RYZ014A Evaluation Kit Figure 14. Enter Information R12UM0041EU0102 Rev.1.02 Page 11 of 33 Jun.01.21...
  • Page 15 RYZ014AAA RYZ014A Evaluation Kit Step 4: Access your email for the verification code and click validate button to create password Figure 15. Validate Email Address Figure 16. Create Password R12UM0041EU0102 Rev.1.02 Page 12 of 33 Jun.01.21...
  • Page 16 RYZ014AAA RYZ014A Evaluation Kit Step 5: Access Homepage Figure 17. Access Homepage Step 7: Click on Create Device Profile application tile Figure 18. Create Device Profile Step 8: Verify prefilled information and click next Figure 19. Verify Information Step 9: Verify the sensors that will be configured on the device Note: The kit comes with a schema (Temperature and Humidity) preinstalled on the device.
  • Page 17 RYZ014AAA RYZ014A Evaluation Kit Figure 20. Preinstalled Schemas Step 10: Select a payment plan Note: The first 30 days are free. Once you register the EVK using mobile app, you will get a $5.99 credit in your wallet Figure 21. Select Payment Plan Step 11: Add or select a payment method and click on finish •...
  • Page 18 RYZ014AAA RYZ014A Evaluation Kit Figure 22. Add Credit Card and Billing Information R12UM0041EU0102 Rev.1.02 Page 15 of 33 Jun.01.21...
  • Page 19 RYZ014AAA RYZ014A Evaluation Kit Step 12: Download the mobile app Figure 23. Mobile App • IOS:  App Name: ONE Device  App Store Link: https://apps.apple.com/us/app/one-device/id1558929605  QR Code: Figure 24. IOS App QR Code R12UM0041EU0102 Rev.1.02 Page 16 of 33...
  • Page 20 RYZ014AAA RYZ014A Evaluation Kit • Android:  App Name: ONE Connect  Play Store Link: https://play.google.com/store/apps/details?id=com.renesas_ryz014a.ble  QR Code: Figure 25. Android App QR Code Step 13: Open the mobile app Step 14: Select device from the list Step 15: Drag down the list if you don’t see your device Note: The drag down functionality is only needed on Android.

  • Page 21: Configure Supported Operators

    RYZ014AAA RYZ014A Evaluation Kit Figure 26. Activate Device in App 1.6 Configure Supported Operators Note: The SIM card will be read when the UE is in +CFUN=1 or +CFUN=4 states. When the SIM card is read for the first time, the modem will be reconfigured automatically and will reboot.

  • Page 22: Hardware Description

    RYZ014AAA RYZ014A Evaluation Kit 6. Power on modem by sending AT command AT+CFUN=1. The response will be OK followed by +CEREG=<stat>. Table 2. Status Codes Value Meaning Comment Modem is not registered and is not Possible cause: SIM card error or registration currently searching an operator to ongoing.

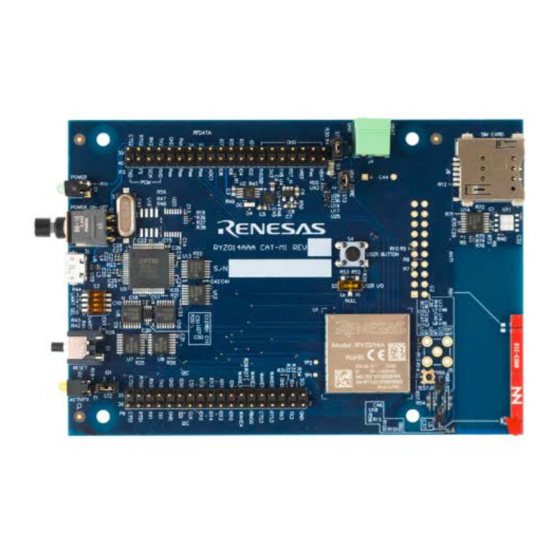

  • Page 23 RYZ014AAA RYZ014A Evaluation Kit Top Assembly Figure 27. Bottom Assembly Figure 28. R12UM0041EU0102 Rev.1.02 Page 20 of 33 Jun.01.21...

  • Page 24: Power Supplies

    RYZ014AAA RYZ014A Evaluation Kit 2.2 Power Supplies RYZ014AAA has two power domains: 1. One power domain for the entire auxiliary and debug circuitry (AUX). 2. One power domain for the LTE modem (CORE). RYZ014AAA Power Supplies Figure 29. The auxiliary power domain can only be powered via USB.

  • Page 25: Sim Card

    2.5 SIM Card RYZ014AAA supports connectivity from an MFF2 SIM (U11) or from a SIM slot (J6). Both solutions connect to RYZ014A SIM0 interface. A multiplexer automatically selects between the embedded MFF2 SIM and the SIM slot as per : •...

  • Page 26: Leds

    RYZ014AAA RYZ014A Evaluation Kit 2.6 LEDs Two LEDs are present in the board: • Power LED (D1): turns on whenever there is USB power • Activity LED (D2): turns according to network activity if ST2 jumper is fitted and the ACTIVITY LED function is enabled on the module (with AT command AT+SQNLED, please refer to AT Commands Reference Manual for details.)
  • Page 27 RYZ014A Evaluation Kit Expansion Connectors Schematics Figure 34. Table 4 provides the correspondence between the expansion connector signals and the module signals. Table 4. Expansion Connectors and RYZ014A Signals P3 Connector Signals to RYZ014A Module P6 Connector Signals to RYZ014A Module RYZ014A...
  • Page 28 RYZ014AAA RYZ014A Evaluation Kit P3 Connector Signals to RYZ014A Module P6 Connector Signals to RYZ014A Module RYZ014A RYZ014A Marking Direction Signal Marking Direction Signal RING0 RING0 3V3_AUX WAKE3 GPIO41/ DTR0 WAKE4 5V_USB GPIO29/ GPIO3/ 32KHZ_OUT STATUS_LED IO10 GPIO42/ GPIO2/ SAR_DETECT...

  • Page 29: Lte Antenna And Rf Connectors

    RYZ014AAA RYZ014A Evaluation Kit 2.9 LTE Antenna and RF Connectors The EVK features an integrated antenna with a matching circuit. The matching circuit is automatically driven by two of the module GPIOs depending on the operating frequency. In addition, EVK features an RF connector (J1) allowing the board to be connected to an external antenna or test equipment.

  • Page 30: Advanced Functions

    RYZ014AAA RYZ014A Evaluation Kit Default Jumpers and Switch Positions Figure 36. 3. Advanced Functions 3.1 How to Connect an External Power Supply 3.1.1 Power via VBAT_IN on J4 Connector The external power supply can be connected at the Power Input connector J4 (VBAT_IN). When the supply voltage at VBAT_IN is above 1.6 V, the module power VBAT_CORE automatically switches from the...

  • Page 31: How To Modify The Board By Soldering Bridges

    RYZ014AAA RYZ014A Evaluation Kit Figure 37. R35 Location on Layout Remote reset is done by toggling the UART1 DTR pin to High-Low-High. This can be done using a TeraTerm script as shown below: ; change flow control to "none" setflowctrl 3 ;...
  • Page 32 RYZ014AAA RYZ014A Evaluation Kit Table 5. Solder Bridges Identification Solder Bridge # Action RTS0 pull up to 3V3_AUX RTS1 pull up to 3V3_AUX RING0 pull up to 3V3_AUX RING0 pull down to GND I2C_SDA pull up to 1V8_AUX I2C_SDA pull up to 3V3_AUX...

  • Page 33: Appendix: Glossary And Abbreviations

    Provide them with the set of procedures to start and configure the Evaluation Kit, connect to the network and setup a data connection. Note: RYZ014AAA Evaluation Kit is dedicated to LTE Category M1 networks only. It supports Renesas’ RYZ014A module.

  • Page 34: References

    RYZ014AAA RYZ014A Evaluation Kit 5.4 References Reference Document Title AT Commands Reference Manual AT Commands Reference Manual ITU-T V.250 SERIES V: DATA COMMUNICATION http://www.itu.int/rec/T-REC-V.250-200307-I/en OVER THE TELEPHONE NETWORK - Control procedures - Serial asynchronous automatic dialling and control 3GPP TS 27.007-13.5.0...
  • Page 35 RYZ014AAA RYZ014A Evaluation Kit General Conventions Note Important information requiring the user’s attention. Caution A condition or circumstance that may cause damage to the equipment or loss of data. A condition or circumstance that may cause personal injury. Warning Italics Italic font style denotes •...

  • Page 36: Revision History

    RYZ014AAA RYZ014A Evaluation Kit Revision History Description Rev. Date Page Summary 1.00 Nov.10.20 — First release document 1.01 May.24.21 Section 1 edited. 1.02 Jun.01.21 2-7, 10-20, New information in sections 1.1, 1.2 and 1.5. Other minor others changes. R12UM0041EU0102 Rev.1.02 Page 33 of 33 Jun.01.21...
  • Page 37 RYZ014AAA RYZ014A Evaluation Kit User’s Manual Publication Date: Jun.01.21 Published by: Renesas Electronics Corporation...
  • Page 38 RYZ014AAA RYZ014A Evaluation Kit R12UM0041EU0102...
  • Page 39 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Renesas Electronics RYZ014A-GB-EVK RYZ014A-NA-EVK...
