RYZ014A Pmod LTE Connectivity with
Cellular IoT Modules

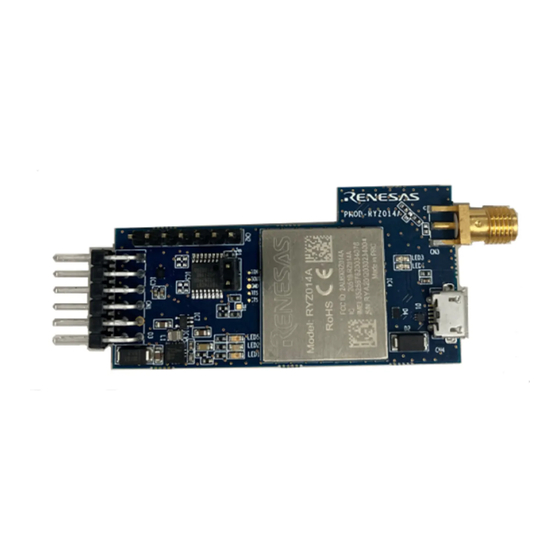

RYZ014A Pmod Module
All information contained in these materials, including products and product specifications, represents
information on the product at the time of publication and is subject to change by Renesas Electronics
Corp. without notice. Please review the latest information published by Renesas Electronics Corp.
through various means, including the Renesas Electronics Corp. website (http://www.renesas.com).
www.renesas.com
RSK-RX671
Quick Start Guide
Rev. 1.00 May 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RYZ014A and is the answer not in the manual?

Questions and answers

Related Manuals for Renesas RYZ014A

Summary of Contents for Renesas RYZ014A

  • Page 1 All information contained in these materials, including products and product specifications, represents information on the product at the time of publication and is subject to change by Renesas Electronics Corp. without notice. Please review the latest information published by Renesas Electronics Corp.
  • Page 2 Renesas Electronics disclaims any and all liability for any damages or losses incurred by you or any third parties arising from the use of any Renesas Electronics product that is inconsistent with any Renesas Electronics data sheet, user’s manual or other Renesas Electronics document.
  • Page 3 Unit Products The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas. For detailed usage notes on the products covered by this document, refer to the relevant sections of the document as well as any technical updates that have been issued for the products.
  • Page 4 Renesas or its affiliates shall in no event be liable for any loss of profit, loss of data, loss of contract, loss of business, damage to reputation or goodwill, any economic loss, any reprogramming or recall costs (whether the foregoing losses are direct or indirect) nor shall Renesas or its affiliates be liable for any other direct or indirect special, incidental or consequential damages arising out of or in relation to the use of this RSK-RX671, even if Renesas or its affiliates have been advised of the possibility of such damages.

  • Page 5: Table Of Contents

    Figure 1. RSK-RX671 Setup with RYZ014A_PMOD Board Connected ............7 Figure 2. Creating a New Project on Renesas Flash Programmer ..............8 Figure 3. The Main Window of Renesas Flash Programmer After Creating a New Project ......9 Figure 4. Connections for the RX671 Board After Flashing ................10 Figure 5.
  • Page 6 Cellular IoT Modules RYZ014A Pmod with RSK-RX671 – Quick Start Guide Figure 11. Validating SIM Activation ......................14 Figure 12. Creating a Device Profile on Launchpad ..................14 Figure 13. Registering RSK-RX671 on Launchpad ..................15 Figure 14. Activating the SIM card on Launchpad ..................15 R20QS0042EG0100 Rev.1.00...

  • Page 7: Cellular Iot Modules

    • Instructions for running the RYZ014A_PMOD example project on the RSK-RX671 board. • Instructions for flashing the RYZ014A_PMOD example project code using Renesas Flash Programmer. 1.1 Assumptions and Advisory Notes 1. Tool experience: It is assumed that the user has prior experience working terminal emulation programs such as TeraTerm.

  • Page 8: Overview Of The Ryz014A_Pmod Example Project

    USB device cable to the E2 Lite Debugger and the Type-A end to the host PC. 3. Connect the power cable from the AC adapter to the power jack on the RSK-RX671 board (PWR). 4. Open Renesas Flash Programmer and create a new project by using the File menu and selecting New Project.

  • Page 9: Figure 3. The Main Window Of Renesas Flash Programmer After Creating A New Project

    Cellular IoT Modules RYZ014A Pmod with RSK-RX671 – Quick Start Guide Figure 3. The Main Window of Renesas Flash Programmer After Creating a New Project 8. Click Start to begin flashing the example project code onto the board. Once completed, the message Operation Complete should be printed and the status OK should be displayed next to the start button.

  • Page 10: Connecting And Powering Up The Rx671 Board

    Cellular IoT Modules RYZ014A Pmod with RSK-RX671 – Quick Start Guide 5.2 Connecting and Powering Up the RX671 Board 1. Connect the RYZ014A_PMOD to PMOD1 connector labeled on the board. 2. Connect the Mini-B connector end of the USB device cable to the USB Mini-B port (G1CUSB0) of the RSK-RX671 board.

  • Page 11: Running The Rx671 Example Project

    Cellular IoT Modules RYZ014A Pmod with RSK-RX671 – Quick Start Guide 5.3 Running the RX671 Example Project To run the RYZ014A_PMOD example project, use the following instructions: 1. On the host PC, open Windows Device Manager. Expand Ports (COM & LPT), locate USB Serial Device (COMxx) and note down the COM port number for reference in the next step.

  • Page 12: Figure 7. Selecting 115200 On The Speed Pulldown

    Cellular IoT Modules RYZ014A Pmod with RSK-RX671 – Quick Start Guide 3. Using the Setup menu pull-down, select Serial port… and ensure that the speed is set to 115200, as shown below. Figure 7. Selecting 115200 on the Speed Pulldown 4.

  • Page 13: Figure 9. Kit Information

    Cellular IoT Modules RYZ014A Pmod with RSK-RX671 – Quick Start Guide 5. Press 1 to display the Kit Information including the kit name, part number. Figure 9. Kit Information 6. Press ESC to return to the ‘welcome and main menu’ screen.

  • Page 14: Activating The Sim Card On Launchpad

    1. Create a Launchpad account by registering on the sign-up page and verifying the account through the verification email sent after registration. 2. Login to the new Launchpad account and click on the Create Device Profile tile. Make sure Renesas RSK-RX671 is selected for the Device Type and CAT-M (RYZ014A-PMOD) for the Connectivity Type.

  • Page 15: Figure 13. Registering Rsk-Rx671 On Launchpad

    Cellular IoT Modules RYZ014A Pmod with RSK-RX671 – Quick Start Guide a. The RYZ014A_PMOD kit comes with a prepaid SIM Card which is free to user for 30 days from activation and 50MB of data. 5. Provide a Payment Method and accept the terms and conditions. Click Finish.

  • Page 16: Troubleshooting

    Cellular IoT Modules RYZ014A Pmod with RSK-RX671 – Quick Start Guide 7. Troubleshooting This section includes a common set of issues and how to resolve them. 7.1 Hardware Setup A first step for any general issue is always to verify the proper connections are made. Refer to Figure •...

  • Page 17: Website And Support

    Cellular IoT Modules RYZ014A Pmod with RSK-RX671 – Quick Start Guide 9. Website and Support Visit the following URLs to learn about the kit and the RX family of microcontrollers, download tools and documentation, and get support. RSK-RX671 Resources renesas.com/rx/rsk-rx671 RX Product Information renesas.com/rx...

  • Page 18: Revision History

    Cellular IoT Modules RYZ014A Pmod with RSK-RX671 – Quick Start Guide Revision History Description Rev. Date Page Summary 1.00 May.15.22 — Initial release R20QS0042EG0100 Rev.1.00 Page 18 of 18 May.15.22...
  • Page 19 RYZ014A Pmod with RSK-RX671 – Quick Start Guide Publication Date: May.15.22 Published by: Renesas Electronics Corporation...

  • Page 20: Ryz014A Pmod With Rsk-Rx671

    RYZ014A Pmod with RSK-RX671 – Quick Start Guide R20QS0042EG0100...
