Renesas Pmod RYZ014A Quick Start Manual

Renesas LTE Cat-M1 Cellular IoT Module
RYZ014A Pmod™ Expansion Board
1. Product Overview

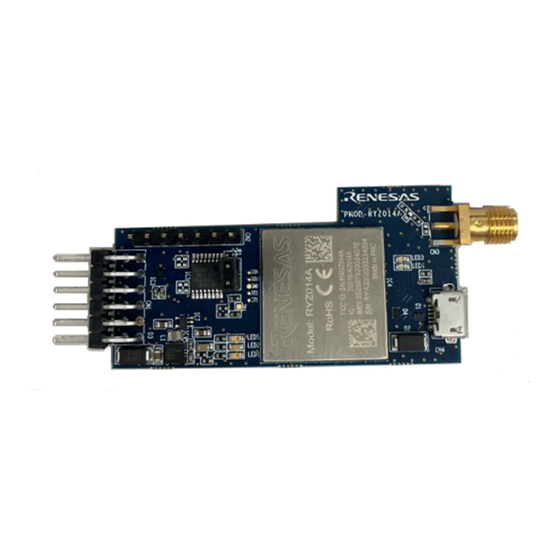

This Pmod™ expansion board provides a quick and easy way to interface with the RYZ014A module.
More information about this module can be found on the Renesas website:
RYZ014A - LTE Cat-M1 Cellular IoT Module | Renesas
2. Kit Contents
The following components are included in the kit:
1. RYZ014A Pmod™ expansion board
2. LTE Antenna (Taoglas: GSA.8830.A.201111) (SMA Male termination)
3. MVNO SIM Card (MicroAi SIM)
3. Pmod™ Interface
3.1 Overview
The RYZ014A LTE Cat-M1 Cellular IoT Module Pmod™ expansion board provides an interface using a 12-
pin Digilent Pmod™ compatible connector (CN1).
This provides access to:
• A high-speed UART interface (UART0)
• A reset pin (RESET)
• A PMOD_RING pin (RING0)
• VDD and GND connections for module power
Pmod™ is registered to Digilent Inc. and its specification can be found at the link below:
https://digilent.com/reference/pmod/start
3.2 Pin Diagram
PMOD_UART0_CTS
PMOD_UART0_TX
PMOD_UART0_RX
PMOD_UART0_RTS
R21QS0004EG0100 Rev.1.00
May.04.22
Figure 1. Kit contents
GND
VDD
Figure 2. Pin Diagram
Quick Start Guide
PMOD_RING
PMOD_RESET
NC
PMOD_DTR
GND
VDD
