Thank you for choosing Sanus Systems Component Furniture. Please check carefully to make sure there are no missing or defective
parts. Never use defective parts. Improper assembly may cause damage or serious injury. If you have any questions regarding this prod-
uct, contact Sanus at 800.359.5520 or visit www.sanus.com. Our customer service representatives can quickly assist you with missing or
damaged parts. Replacement parts for Sanus products purchased through authorized dealers can be shipped directly to you. Please call
Sanus Systems before returning products to the point of purchase.
REQUIRED TOOLS: Phillips Screw Driver, Hammer
Check Carefully to ensure there are no missing Parts or Hardware before beginning the installation.

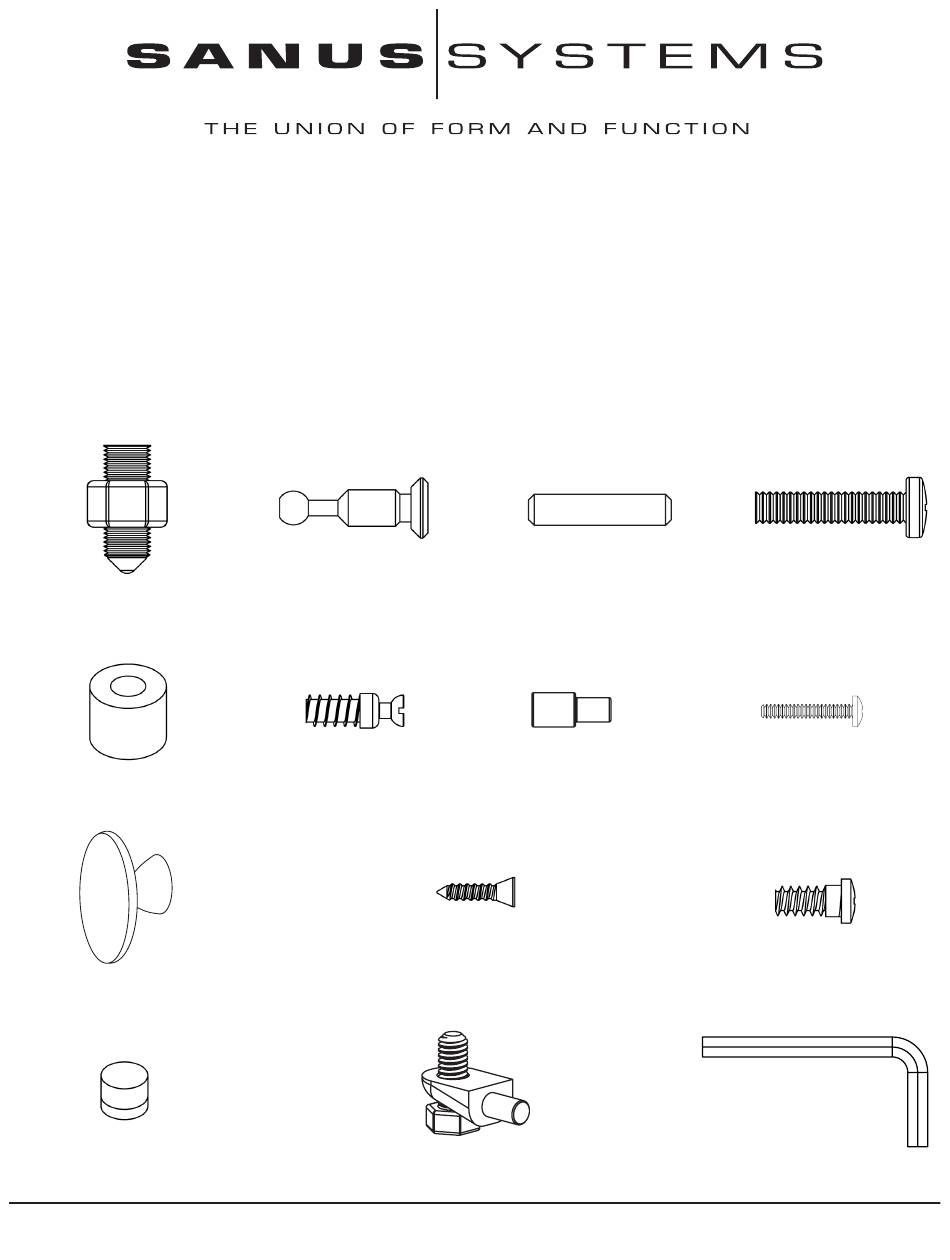

HARDWARE: (shown at actual size)
(4) Carpet Spike Assembly - a
(4) Spacer - e
(1) Knob - i
(4) Isolation Pad - l
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

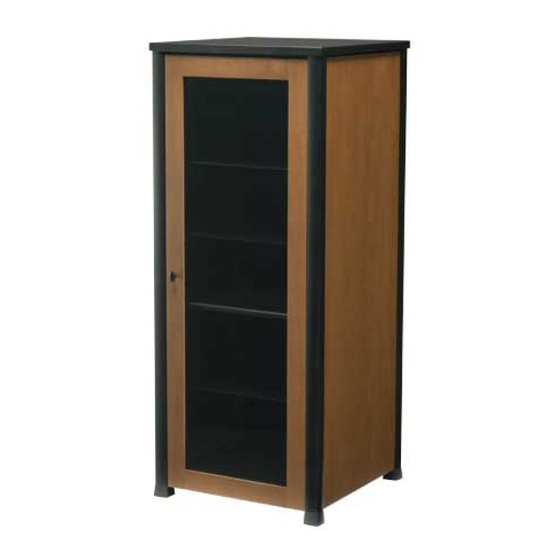

Assembly Instructions for Model: CFA56
(8) Cam Pin - b
(4) Bottom Shelf Pin - f
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 9.29.05
(4) Dowel - c
(12) Shelf Pin - g
(6) Hinge Screw - j
(4) Isolation Shelf Pin - m
(4) Back Panel Bolt - d
(1) Knob Bolt - h
(6) Hinge Plate Screw - k
(1) Allen Key - n
Advertisement
Related Manuals for Sanus Systems CFA56
Summary of Contents for Sanus Systems CFA56
- Page 1 Assembly Instructions for Model: CFA56 Thank you for choosing Sanus Systems Component Furniture. Please check carefully to make sure there are no missing or defective parts. Never use defective parts. Improper assembly may cause damage or serious injury. If you have any questions regarding this prod- uct, contact Sanus at 800.359.5520 or visit www.sanus.com.
- Page 2 Parts: Some Parts not shown at same scale (4) Foot - o* (3) Hinge Plate - p* (3) Hinge - q* (2) Front Rail - r (2) Back Rail - s (2) Side Panel - t* (1) Back Panel - u* (1) Door - v (1) Top - w (3) Glass Shelf - x...
- Page 3 Warning: The ends of the carpet spikes are sharp and may scratch floors or furniture. All sharp objects can be hazardous to children. For this reason we provide the carpet spikes as an option. Sanus Systems will not be liable for damage or injury.
- Page 4 Step 3: Add second Side Panel Assembly Attach the second Side Panel Assembly (t) by lining up and inserting both Front Rails (r) into the groove in the corner pillar. If the clamp on the Front Rail will not fit in the groove, make sure the allen bolt (labeled in the Top View) is loose so the clamps are close together. Once you have the Front Rails aligned so the bottom one is resting on the Foot (o), and the top one is level with the corner pillar, tighten the allen bolt in the back of the Front Rail to widen the clamp to secure it to the pillar.
- Page 5 Step 5: Add the Back Panel Insert a Back Panel Bolt (d) through the Back Panel (u), a Spacer (e) and thread it into the Back Rail (s) as seen in the Detailed View of Diagram 5. Repeat the process until all 4 Back Panel Bolts are attached to the Back Rails. Proceed to tighten the Back Panel Bolts. Diagram 5 Detailed View Step 6: Add Isolation Pads to Isolation Shelf...
- Page 6 Step 7: Add Shelves Add 4 Shelf Pins (g) for the Isolation Shelf (y) at the desired height as shown in Detailed View A of Diagram 7. Next, align the holes on the bottom side of the Isolation Shelf with the Shelf pins, and proceed to place the shelf on the Shelf Pins. You can level the Isolation Shelves by adjusting the Bolt in the Shelf Pin.
- Page 7 Step 9: Prepare the Door Insert a Knob Bolt (h) through the backside of the Door (v) and proceed to thread it into the Knob (i). Tighten until the Knob is flush with the front side of the Door. See the Detailed View of Diagram 9 for assistance. Diagram 9 Detailed View Step 10: Add Door Hinges...
- Page 8 Each hinge Assembly is adjustable in multiple directions. See Diagram 12 for assistance. Diagram 12 Side Adjustment Depth Adjustment Height Adjustment Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 9.29.05 Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com...
