Assembly Instructions for Model: NFCDII

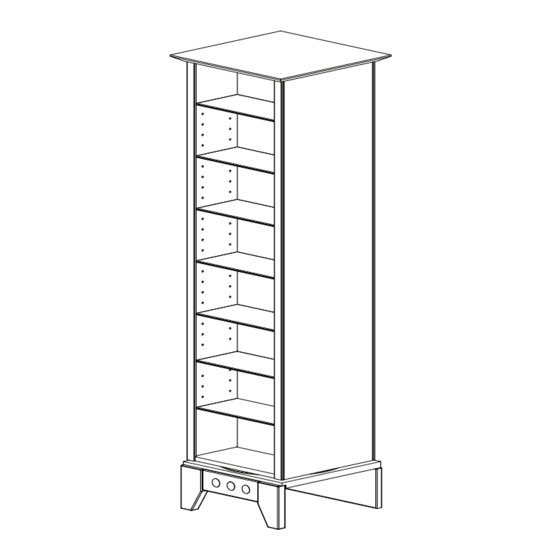

Thank you for choosing a Sanus Systems Natural Media Tower. The Model
NFCDII is designed to keep your collection clean and organized by storing up
to 430 CDs or 230 DVDs, all in one convenient location.
If you do not understand these directions, please contact Sanus at 800.359.5520
or www.sanus.com. Check carefully to make sure that there are no missing or
defective parts. Our customer service representatives can quickly assist you
with assembly questions, and missing or damaged parts. Replacement parts
for products purchased through authorized dealers will be shipped directly to
you. Never use defective parts. Improper assembly may cause damage or
serious injury. Do not use this product for any purpose that is not explicitly
specified by Sanus Systems. Sanus Systems can not be liable for damage
or injury caused by incorrect assembly, or incorrect use. Please call Sanus
Systems before returning products to the point of purchase.
Required Tools: Rubber mallet or hammer, phillips screwdriver, and an
adjustable wrench.

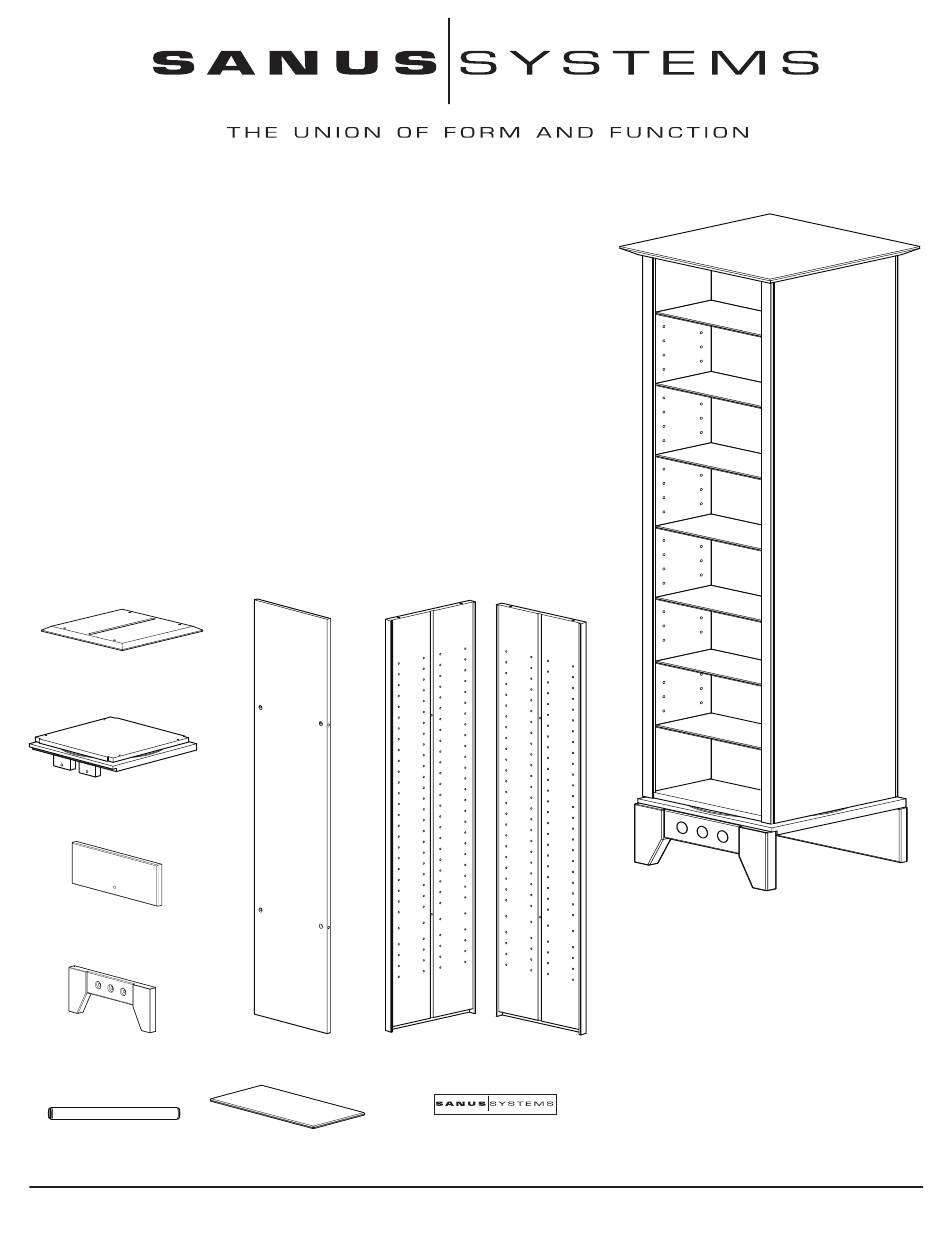

Supplied Parts List: (Not to Scale)
NFCDII Top - A
Qty. 1
NFCDII Base - B
Qty. 1
NFCDII Back Leg - C
Qty. 1
NFCDII Front Leg - D
Qty. 1
Steel Tube - G
Qty. 1
Sanus Systems
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Center Support - E
Qty. 1
Glass Shelves - H
Qty. 14
2221 Hwy 36 West, Saint Paul, MN 55113 02.28.06 (000011)
Side Panels - F
Qty. 2
SANUS Name Plate - I
Qty. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NFCDII and is the answer not in the manual?

Questions and answers

Summary of Contents for Sanus Systems NFCDII

  • Page 1 Assembly Instructions for Model: NFCDII Thank you for choosing a Sanus Systems Natural Media Tower. The Model NFCDII is designed to keep your collection clean and organized by storing up to 430 CDs or 230 DVDs, all in one convenient location.
  • Page 2 Supplied Hardware: (Full Size) Cam - J Cam Pin - K Plastic Dowel - L Screw - M Qty. 4 Qty. 4 Qty. 4 Qty. 4 Allen Bolt - N Decorative Face Bolt - O Nut - P Qty. 1 Qty.
  • Page 3 Step 3 - Secure Front Leg to NFCDII Base Attach the Front Leg (D) to the NFCDII Base (B) by inserting the two outer Decorative Face Bolts (O) through the two holes of the NCFDII Base and securing with two Nuts (P). Use the adjustable wrench to firmly tighten the two Nuts.
  • Page 4 Place a Washer (Q) between the Tube (G) and the Back Leg (C); then, using an Allen Bolt (N) secure the Back Leg to the Tube. Using the two Allen Screws (S), secure the Back Leg (C) to the NFCDII Base (B). Diagram 4 Step 5 - Insert Cam Pins into Side Panels There are two holes that are centered on each side of the Side Panels (F), and 12”...
  • Page 5 Step 6 - Insert Cam into Center Support. Place a Cam (J) into each of the four holes in the Center Support (E). NOTE: Each Cam has an arrow on it. Using a phillips screwdriver align each Cam so the arrow is pointing toward the small hole on the edge of the Center Support (See Detail - A).
  • Page 6 Stand the unit up so that the notched bottom of each Side Panel (F) is facing down and the smooth top edge is facing up. Tap a Plastic Dowel Pin (L) into the holes in the top edge of each Side Panel (F); then, align the holes of the NFCDII Top Panel (A) with the Dowel Pins and the slot across the NFCDII Top with the Center support (E).
  • Page 7 Turn the assembly over. Place the Shelf Pins (R) in to holes in the Side Panels (F) where you want the Glass Shelves (H) to be located. Each Glass Shelf requires four shelf Pins. Place the Glass Shelves (H) in the NFCDII Media Tower. Diagram 10...
