Assembly Instructions for Sanus Systems Platinum Furniture Model: PFFP2
Thank you for choosing Sanus Systems Platinum Furniture. The PFFP2 is designed to support a 30" to 50" flat panel television up to 130 lbs.
If you have any questions regarding this or any other Sanus Systems product, please contact us at 800.359.5520 or visit us at www.sanus.
com. Our customer service representatives can assist you quickly with any issues regarding assembly or missing parts. Check carefully to
make sure none of the parts are missing or defective. Never use defective parts. Replacement parts for products purchased from an authorized
dealer will be shipped directly to you. Please call Sanus Systems before returning products to the retail store where you purchased them.
Required Tools: Wrench or Socket Set, Phillips Screw Driver

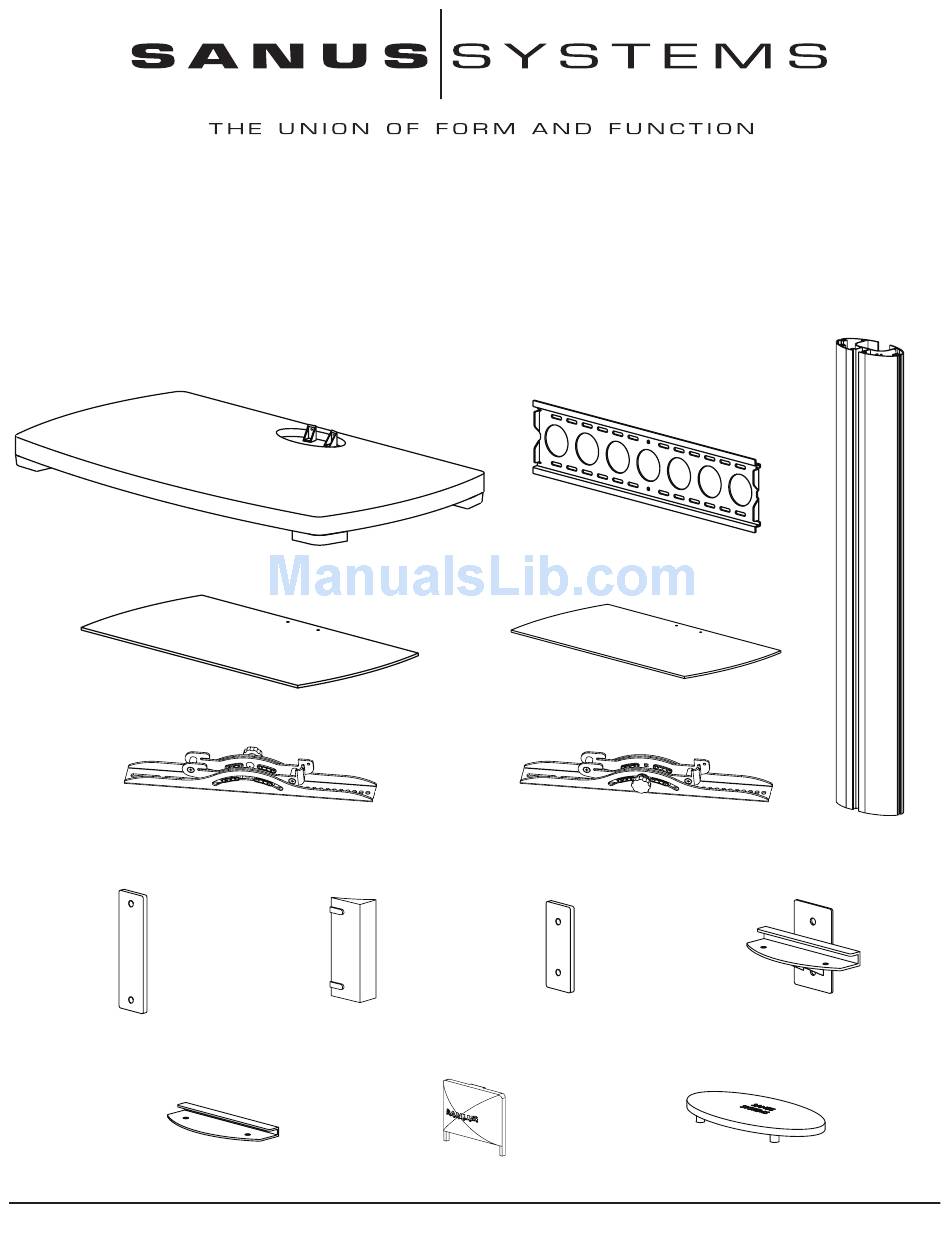

Parts: Some parts not shown at same scale*
(1) Large Glass Shelf - c
(1) Right Monitor Bracket - e
(1) Wall Plate - h*
(2) Glass Shelf Washer - l*
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
(1) Base - a
(2) Wall Bracket Spacer - i*
(2) Shelf Bracket Cap - m*
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 7.15.05
(1) Wall Bracket - b
(1) Small Glass Shelf - d
(1) Left Monitor Bracket - f
(2) Shelf Plate - j*
(1) Pillar - g
(2) Shelf Bracket - k*
(1) Top Cap - n*

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sanus Platinum Furniture PFFP2 PFFP2 PFFP2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sanus Systems Sanus Platinum Furniture PFFP2 PFFP2 PFFP2

  • Page 1 Assembly Instructions for Sanus Systems Platinum Furniture Model: PFFP2 Thank you for choosing Sanus Systems Platinum Furniture. The PFFP2 is designed to support a 30” to 50” flat panel television up to 130 lbs. If you have any questions regarding this or any other Sanus Systems product, please contact us at 800.359.5520 or visit us at www.sanus.
  • Page 2 Hardware: All hardware shown as actual size (2) M6 x 20 Bolt - o (6) M8 Allen Bolt - r (8) M8 Washer - u (6) Spring Washer - v TV Mounting Hardware: (4) M4 x 12 Bolt - y (4) M5 x 12 Bolt - z (4) M4 x 30 Bolt - cc (4) M5 x 30 Bolt - dd...
  • Page 3 Step 1: Secure Pillar to Base Attach the Pillar (g) to the Base (a) by placing each M12 x 40 Bolt (q) through an M12 Washer (x), each M8 x 35 Bolt (p) through an M8 Washer (u). Then thread each Bolt up through the Base and into the Pillar as shown in Diagram 1a. The M12 x 40 Bolts should be threaded into the front two holes of the Pillar, while the M8 x 35 Bolts should be threaded into the back two holes of the Pillar.
  • Page 4 Step 3: Wall Bracket Assembly Thread an M8 Allen Bolt (r) through a Spring Washer (v), an M8 Washer (u), through the middle hole in the Wall Bracket (b), and into the Wall Plate (h) as seen in Diagram 3. Loosely tighten the M8 Allen Bolt into the Wall Plate with an Allen Key (oo). Leave approximately a 1/8”...
  • Page 5 Step 5: Add Wall Bracket Slide the Wall Bracket Assembly down into place on the Pillar (g). Make sure the Wall Plate (h) fits into the channel in the Pillar as seen in the Top View of Diagram 5. Once the Wall Bracket Assembly is in the desired position, tighten the M8 Allen Bolts (r) with an Allen Key (oo) so the Wall Bracket Assembly is attached to the Pillar.
  • Page 6 Step 7: Mounting Monitor Brackets to a television with a flat back First, determine the diameter of the Bolt (y,z,aa,bb) your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance stop immediately! Once you have determined the correct diameter, see the appropriate Diagram below.
  • Page 7 Step 8: Mounting Monitor Brackets to a television with a curved back or an obstruction near the threaded insert First, determine the diameter of the Bolt (cc,dd,ee,ff) your TV requires by hand threading them into the threaded insert on the back of the TV.
  • Page 8 Place the Shelf Bracket Cap (m) over the Shelf Bracket (k) so it hides the M8 Allen Bolt (r) as shown in Diagram 10. Diagram 10 Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 7.15.05 Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com...
