Assembly Instructions for Model: CFAR47
Thank you for choosing the Component Furniture line from Sanus Systems! Use
this manual to configure the CFAR47 as shown on the right. The CFAR47 is de-
signed to hold a LCD, Plasma or DLP TV.
Safety Warning: If you do not understand these directions, or have any doubts
about the safety of the installation, please call a qualified contractor or contact Sa-
nus at 800.359.5520 or www.sanus.com. Check carefully to make sure that there
are no missing or defective parts. Our customer service representatives can quickly
assist you with installation questions and missing or damaged parts. Replacement
parts for products purchased through authorized dealers will be shipped directly to
you. Never use defective parts. Improper installation may cause damage or serious
injury. Do not use this product for any purpose that is not explicitly specified by
Sanus Systems. Sanus Systems can not be liable for damage or injury caused by
incorrect assembly, or incorrect use. Please call Sanus Systems before returning
products to the point of purchase.
Required Tools: Drill, 3/16" drill bit, phillips screw driver, flat head screw driv-
er, crescent wrench, tape measure.

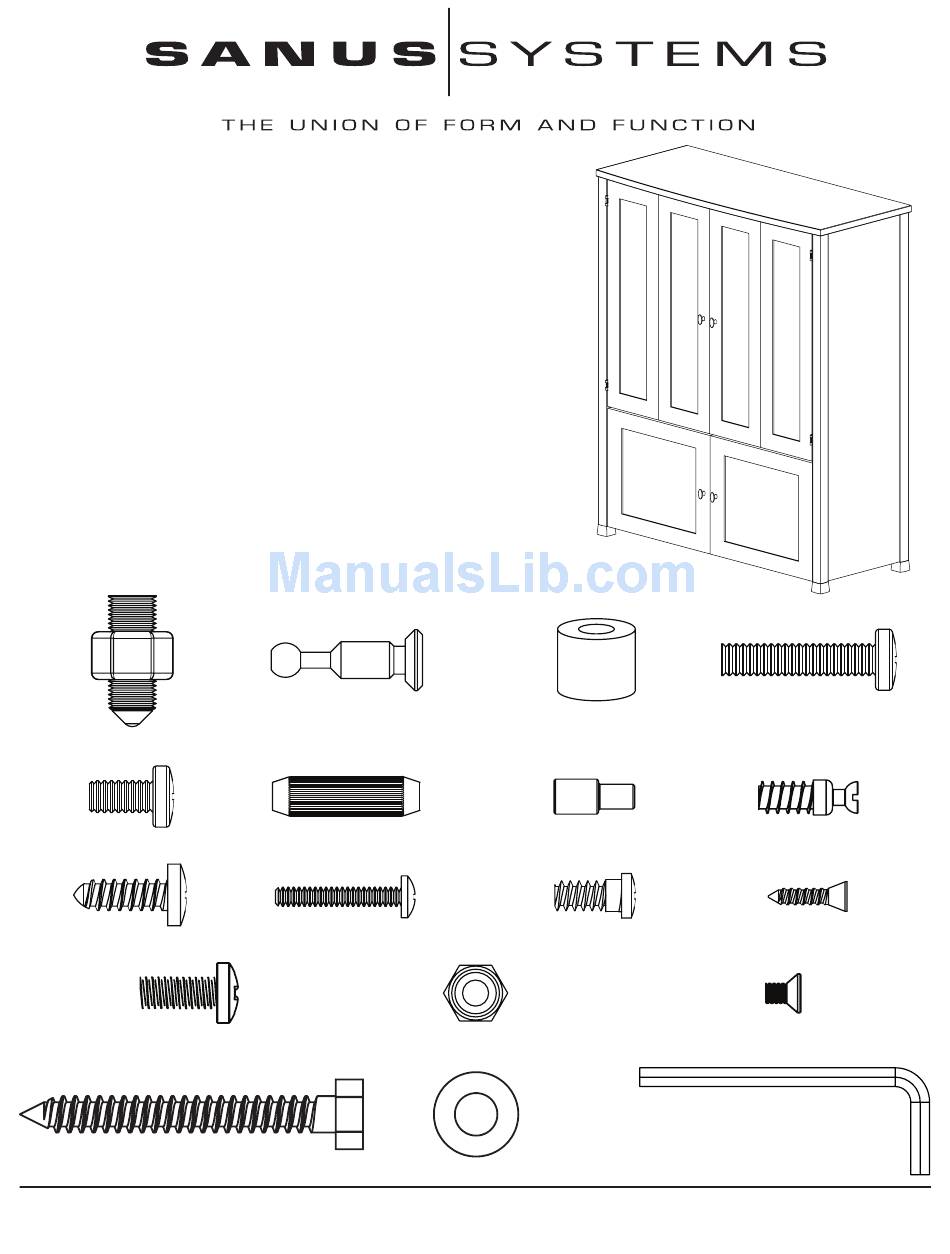

Supplied Parts and Hardware: Hardware shown at actual size. Some
parts may come pre-assembled**
(4) Carpet Spike - a
(2) Phillips Pan Head Bolt - e
(4) Wood Screw - i
(2) Tip Protector Bolt - m
(2) Lag Bolt - p
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
(12) Cam Pin - b
(4) Dowel - f
(4) Knob Bolt - j
**
(2) Stop Nut - n
(2) Lag Bolt Washer - q
Sanus Systems 2221 Hwy 36 West. St. Paul, MN 55113 10.10.05
(8) Spacer - c
(4) Glass Shelf Pin - g
(8) Hinge Plate Screw - k
**
(8) Back Panel Bolt - d
(8) Wood Shelf Pin - h
(16) Hinge Screw - l
(8) Hinge Car Bolt - o
(1) Allen Key - r
