Assembly Instructions for Model: WFV44
Thank you for choosing Sanus Systems Woodbrook Furniture. The Woodbrook Furniture is
constructed of real hardwood and resonance dampening MDF.
Safety Warning: If you do not understand these directions, or have any doubts about the
safety of the installation, please call a qualified contractor or contact Sanus at 800.359.5520 or
www.sanus.com. Check carefully to make sure that there are no missing or defective parts. Our
customer service representatives can quickly assist you with installation questions and missing
or damaged parts. Replacement parts for products purchased through authorized dealers will be
shipped directly to you. Never use defective parts. Improper installation may cause damage or
serious injury. Do not use this product for any purpose that is not explicitly specified by Sanus
Systems. Sanus Systems can not be liable for damage or injury caused by incorrect assembly, or
incorrect use. Please call Sanus Systems before returning products to the point of purchase.
Required Tools: Phillips screw driver

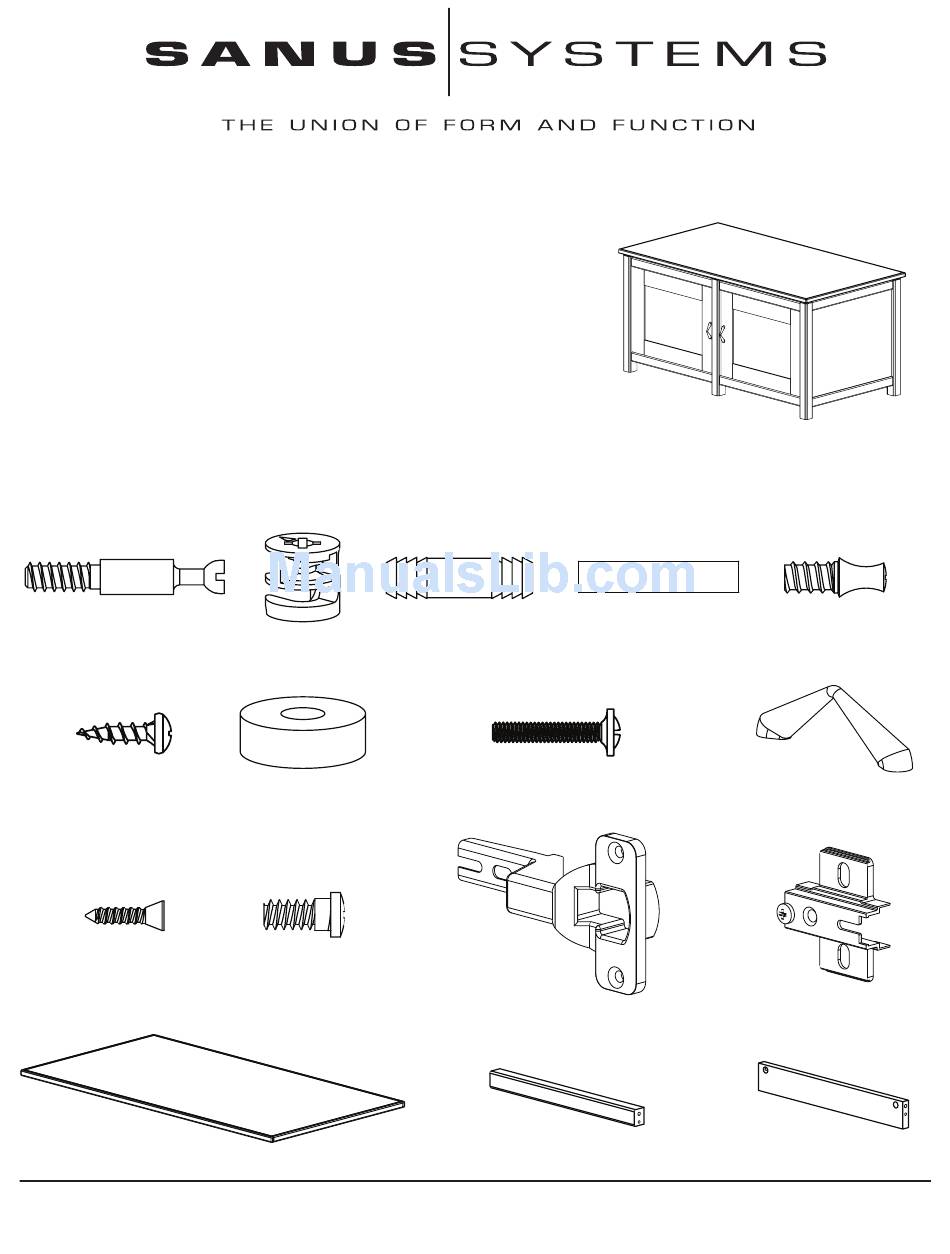

Supplied Parts and Hardware: Some parts may be pre-assembled together*
Hardware: Shown as actual size
(16) Cam Pin - a
(8) Wood Screw - f
(8) Hinge Screw - j
Parts: Not Shown as actual size
(1) Top - n
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
(16) Cam - b
(6) Spacer - g
(8) Hinge Plate Screw - k
Sanus Systems 2221 Hwy 36 West, St. Paul, MN 55113 12.28.05
(6) Dowel Pin - c
(4) Phillips Bolt - h
(4) Hinge - l*
(4) Front Stretcher - o
(16) Dowel - d
(16) Shelf Pin - e
(2) Door Handle - i*
(4) Hinge Plate - m*
(4) Back Stretcher - p
