Assembly Instructions for Model: NFCD

Thank you for choosing a Sanus Systems Natural Media Tower. The Model

NFCD is designed to keep your collection clean and organized by storing up to

430 CDs or 230 DVDs, all in one convenient location.

If you do not understand these directions, please contact Sanus at 800.359.5520

or www.sanus.com. Check carefully to make sure that there are no missing or

defective parts. Our customer service representatives can quickly assist you

with assembly questions, and missing or damaged parts. Replacement parts

for products purchased through authorized dealers will be shipped directly to

you. Never use defective parts. Improper assembly may cause damage or

serious injury. Do not use this product for any purpose that is not explicitly

specified by Sanus Systems. Sanus Systems can not be liable for damage

or injury caused by incorrect assembly, or incorrect use. Please call Sanus

Systems before returning products to the point of purchase.

Required Tools: Rubber mallet or hammer, screwdrivers, phillips & regular

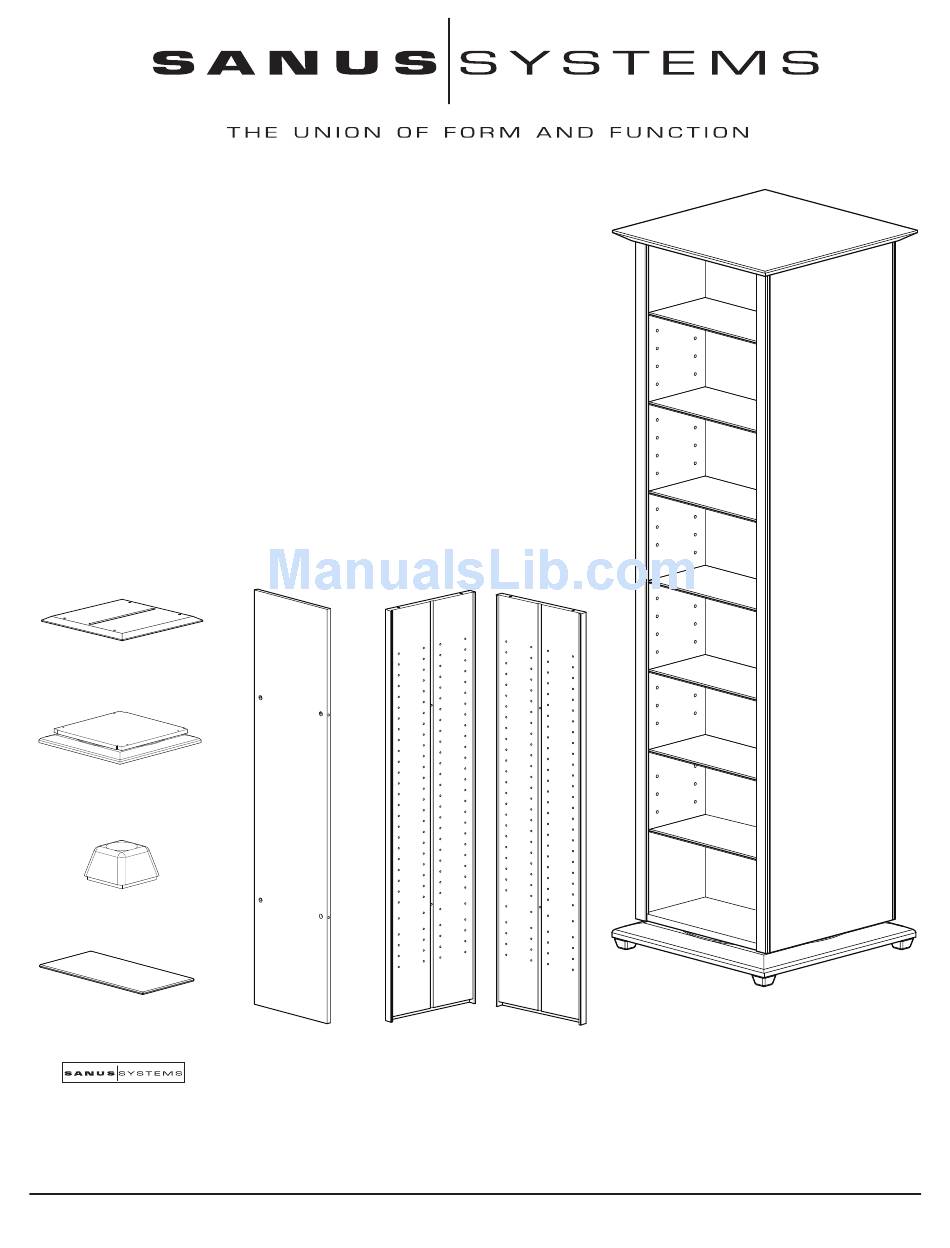

Supplied Parts List: (Not to Scale)

NFCD Top - A

Qty. 1

NFCD Base - B

Qty. 1

NFCD Foot - C

Qty. 4

Glass Shelves - F

Qty. 14

Sanus Name Plate - G

Qty. 1

Sanus Systems

Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

Center Support - D

Qty. 1

2221 Hwy 36 West, Saint Paul, MN 55113 02.28.06 (100028)

Side Panels - E

Qty. 2

Page 1 Assembly Instructions for Model: NFCD Thank you for choosing a Sanus Systems Natural Media Tower. The Model NFCD is designed to keep your collection clean and organized by storing up to 430 CDs or 230 DVDs, all in one convenient location.
Page 2 Qty. 56 Step 1 - Attach Feet to NFCD Base Insert a Machine Screw (K) into each Foot (C); then using the regular screwdriver, attach the Feet to the NFCD Base (B). Diagram 1 Step 2 - Insert Cam Pins into Side Panels There are two holes that are centered on each side of the Side Panels (E), and 12”...
Page 3 Step 3 - Insert Cam into Center Support. Place a Cam (H) into each of the four holes in the Center Support (D) NOTE: Each Cam has an arrow on it. Using a phillips screwdriver align each Cam so the arrow is pointing toward the small hole on the edge of the Center Support (See Detail - A).
Page 4 Turn the assembly over so that the Top is resting on a towel or clean carpet. Gently fit the NFCD Base (B) into the routed notches in each Side Panel (E). Rotate the NFCD Base to expose the screw holes and using the phillips screwdriver, secure with four Wood Screws (L).
Page 5 Step 7 - Installing Glass Shelves Stand the NFCD Media Tower upright. Place the Shelf Pins (M) into holes in the Side Panels where you want the Glass Shelves (F) to be located. Each Glass Shelf requires four shelf Pins.
