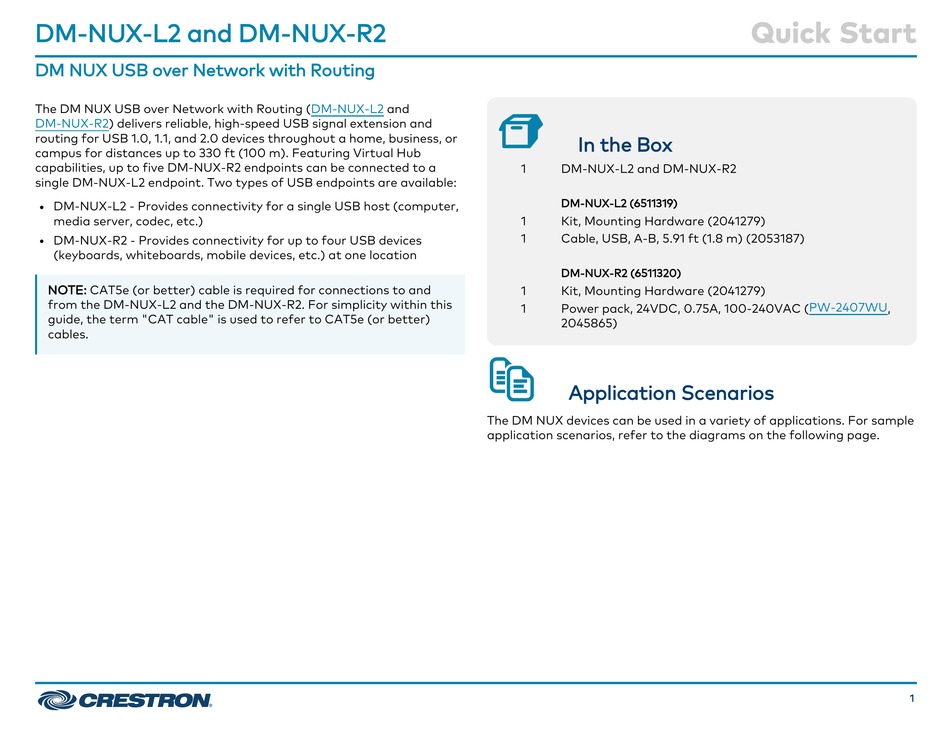

DM-NUX-L2 and DM-NUX-R2
DM NUX USB over Network with Routing
The DM NUX USB over Network with Routing
DM-NUX-R2) delivers reliable, high-speed USB signal extension and
routing for USB 1.0, 1.1, and 2.0 devices throughout a home, business, or
campus for distances up to 330 ft (100 m). Featuring Virtual Hub
capabilities, up to five DM-NUX-R2 endpoints can be connected to a
single DM-NUX-L2 endpoint. Two types of USB endpoints are available:
DM-NUX-L2 - Provides connectivity for a single USB host (computer,
l
media server, codec, etc.)
DM-NUX-R2 - Provides connectivity for up to four USB devices
l
(keyboards, whiteboards, mobile devices, etc.) at one location
NOTE: CAT5e (or better) cable is required for connections to and
from the DM-NUX-L2 and the DM-NUX-R2. For simplicity within this
guide, the term "CAT cable" is used to refer to CAT5e (or better)
cables.
(DM-NUX-L2
and
In the Box
1
DM-NUX-L2 and DM-NUX-R2
DM-NUX-L2 (6511319)
1
Kit, Mounting Hardware (2041279)
1
Cable, USB, A-B, 5.91 ft (1.8 m) (2053187)
DM-NUX-R2 (6511320)
1
Kit, Mounting Hardware (2041279)
1
Power pack, 24VDC, 0.75A, 100-240VAC (
2045865)
Application Scenarios
The DM NUX devices can be used in a variety of applications. For sample
application scenarios, refer to the diagrams on the following page.
Quick Start
PW-2407WU
,
1
