DMC-C
DigitalMedia 8G+
> Modular input card for a DM-MD8X8, DM-MD16X16, or
DM-MD32X32 switcher
> Provides a single DM 8G+
> HDBaseT
Certified
®
> Enables distribution of HD signals up to 330 ft (100 m) over a
single CAT5e
[1]
> Handles video resolutions up to Full HD 1080p and 2K DCI
> Handles computer resolutions up to UXGA and WUXGA
> Handles 3D video and Deep Color
> Handles Dolby
®
TrueHD, DTS-HD
PCM audio
> HDCP compliant
> Includes an HDMI
output for pass-through of the input signal
®
> Includes a stereo analog line-level audio output with
volume control
[3]
> Allows extraction of stereo 2-channel audio signals
> Supports PoDM and PoH
> Occupies a single input card slot
> Provides a rack-mountable DM 8G+ receiver solution using the
optional DMCI card interface
The DMC-C is an input card designed for use with any card-based
Crestron
DigitalMedia
Switcher. It provides one DM 8G+
®
™
associated HDMI
pass-through and analog audio outputs. The DM 8G+
®
input enables the connection of a DM 8G+ transmitter, the output of
another DM
switcher, or an HDBaseT
®
wire is required for connection to the DM 8G+ input, supporting distances
up to 330 feet (100 m).
[1]
Power over DM (PoDM) is supplied over the same
CAT5e connection, providing a centralized power source for PoDM
compatible transmitters.
[2]

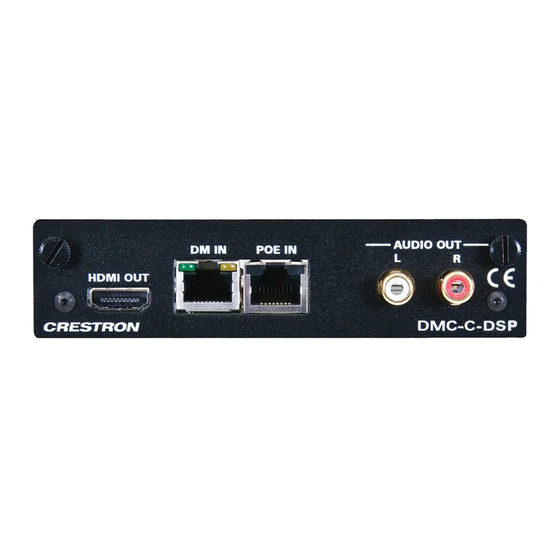

NOTE: Refer to model
DMC-C-DSP
DigitalMedia 8G+
™
DigitalMedia 8G+ provides a true one-wire transport for moving high-
definition video, audio, power, and Ethernet over low-cost twisted-pair
cable without any compression or repeaters. Engineered for ultra high-
bandwidth and ultimate scalability, DM 8G+ handles uncompressed video
beyond high-definition with support for Full HD 1080p, 2K, 3D, Deep Color,
and HDCP. Audio capabilities include support for high-bitrate 7.1 audio
formats like Dolby
®
TrueHD and DTS-HD Master Audio
uncompressed linear PCM. All signals are transported over one
8-conductor twisted-pair cable, supporting distances up to 330 feet
(100 m) using Crestron
DM 8G
®
HDBaseT
Certified
®
Crestron DigitalMedia 8G+ technology is designed using HDBaseT Alliance
specifications, ensuring interoperability with other HDBaseT certified
products. An HDBaseT compliant device can be connected directly to the
DM 8G+ input on the DMC-C without requiring a DM transmitter.
|
crestron.com
800.237.2041
Input Card for DM
™
™
input
®
, and uncompressed 7.1 linear
[2]
[4]
input, with
™
certified source. Just one CAT5e
®
for use with surround sound sources.
™
as well as
Cable
or CAT5e.
[1]
Switchers
®
HDMI
Pass-Through
®
Every DM switcher input card includes an HDMI output port, which can be
used to pass the input signal through to a local audio processor or video
monitor, or to feed a second DM switcher for output expansion purposes.
Audio Extracting
The DMC-C also includes an unbalanced analog audio output, allowing
stereo audio signals to be extracted from the digital input and fed to a
multiroom audio distribution system. The output volume is adjustable via
a control system using a keypad, touch screen, handheld remote, or
mobile device.
[3]
NOTE: For applications requiring the simultaneous distribution of multi-
channel surround sound and 2-channel stereo audio signals, use model
DMC-C-DSP.
Power over DM
®
Power over DM (PoDM) and Power over HDBaseT (PoH) can be supplied
through the DMC-C via its DM 8G+ input port to power a compatible
DM 8G+ transmitter or HDBaseT device. To enable PoDM or PoH, simply
connect a PoDM Power Supply (model
POE IN port on the input card. As an alternative to a PoDM Power Supply,
a Crestron PoE switch, PoE injector, or other 802.3af or 802.3at compliant
PoE PSE may be used.
[2]
Standalone DM 8G+ Receiver
In addition to its use as an input card for DM switchers, the DMC-C may
also be used with the
DMCI
DigitalMedia Card Interface
8G+ receiver solution that's perfect for installation in an equipment rack or
AV cart, or as a portable display interface.
To configure a DM switcher complete with input and output cards,
cables, and other peripherals, please use the online
Switcher Configuration
Tool.
Please refer to the DigitalMedia Resources Webpage at
http://www.crestron.com/dmresources/
reference documents.
DM-PSU-8
or
DM-PSU-16
) to the
[4]
to provide a DM
[4]
DigitalMedia
for additional design tools and
