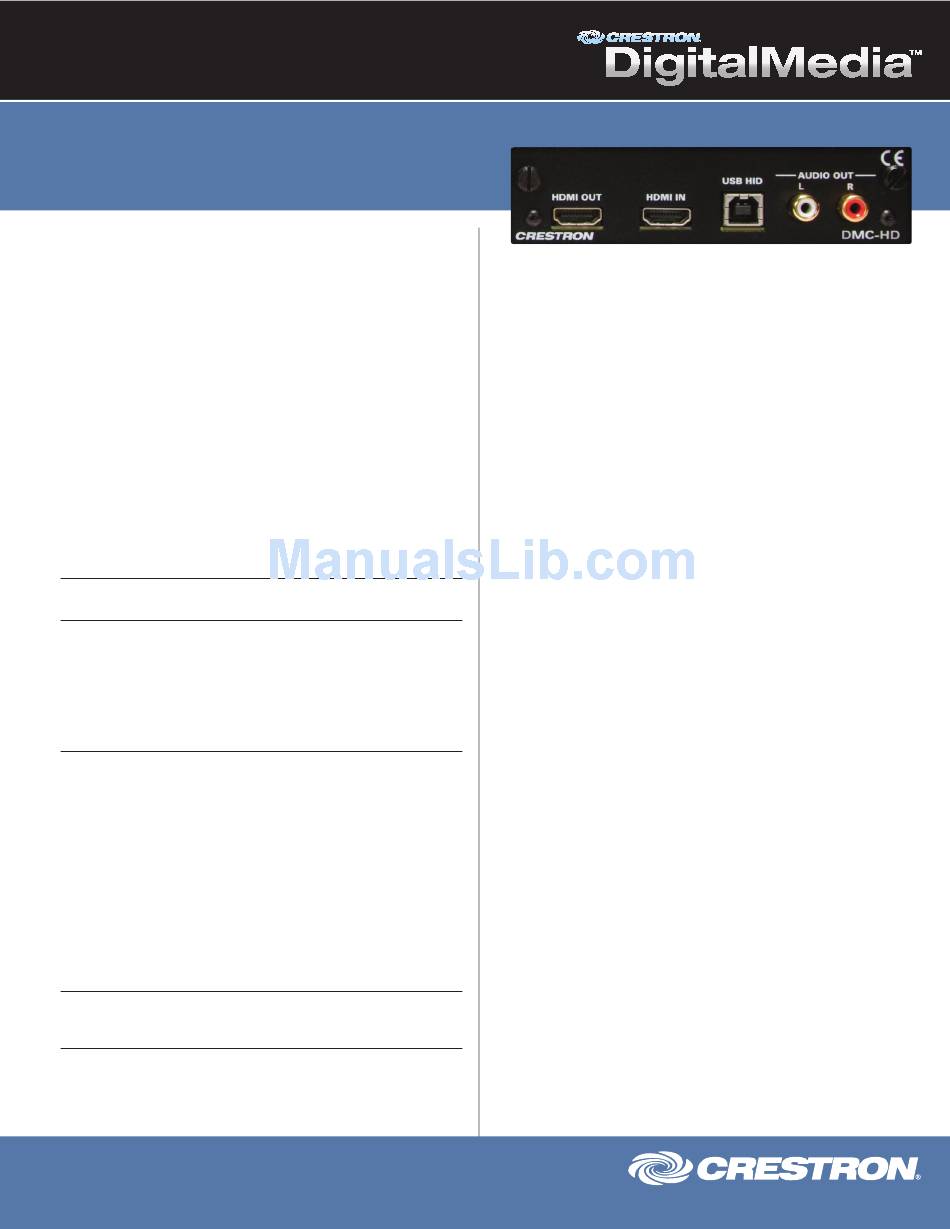

Crestron HDMI Input Card DMC-HD Specifications

C C r r e e s s t t r r o o n n D D M M C C - - H H D D
HDMI Input Card
for DM Switchers
The DMC-HD is an input card for a Crestron DigitalMedia
HDMI input. The DMC-HD supports HDMI 1.3 w/Deep Color and HDCP, handling
1080p/60 HDTV and WUXGA computer resolutions, and multi-channel HD lossless
audio - all through a single HDMI cable.
Additional connections on the card include an HDMI pass-thru output, a stereo
analog audio pass-thru output, and a USB HID port. The HDMI output simply
passes the input signal through to feed a local device, or to feed a second DM
switcher for output expansion purposes. The analog audio output breaks out
the stereo audio signal from the HDMI input and passes it through to feed a
CNX-PAD8A, AAE , or other multi-room audio distribution system.*
The USB HID port allows a remote mouse/keyboard or game controller, connected
at the display location, to control a centralized source device (i.e. computer, game
console, media server, etc.) at the equipment rack.
For applications requiring simultaneous distribution of surround sound and
2-channel audio signals, use DMC-HD-DSP.

SPECIFICATIONS

Video

S S i i g g n n a a l l T T y y p p e e s s : : HDMI 1.3 w/Deep Color w/HDCP 1.1 copy protection protocol

Audio

S S i i g g n n a a l l T T y y p p e e s s : HDMI 1.3 supporting HD lossless multi-channel up to 7.1, analog converted
stereo pass-thru
D D i i g g i i t t a a l l - - T T o o - - A A n n a a l l o o g g C C o o n n v v e e r r s s i i o o n n : : 24-bit 48 kHz
P P e e r r f f o o r r m m a a n n c c e e ( ( a a n n a a l l o o g g ) ) : : Frequency Response: 20Hz to 20kHz ±0.5dB;
S/N Ratio: >95dB, 20Hz to 20kHz A-weighted;
THD+N: <0.005% @ 1kHz;
Stereo Separation: >90dB

Connectors

H H D D M M I I O O U U T T : : (1) 19-pin Type A HDMI female;
HDMI digital video/audio output;
Provides pass-thru signal from HDMI IN for system expansion
H H D D M M I I I I N N : : (1) 19-pin Type A HDMI female;
HDMI digital video/audio input
U U S S B B H H I I D D : : (1) USB Type B female;
USB 1.1 port for connection to source device's mouse, keyboard, or game controller input
A A U U D D I I O O O O U U T T L L – – R R : : (2) RCA female;
Unbalanced stereo line-level audio output;
Provides analog audio pass-thru signal converted from HDMI INPUT to
feed multi-room audio distribution system;
Maximum Output Level: 2 V ;
RMS
Output Impedance: 100 ohms nominal

Construction

Plug-in card, occupies (1) DM Switcher input card slot, includes steel
faceplate w/black matte powder coat finish

Weight

8.0 oz (227 g)
Crestron Electronics, Inc. 15 Volvo Drive
l
Tel: 800.237.2041 / 201.767.3400 Fax: 201.767.1903
Specifications subject to change without notice. Doc.4771 01/09
©2009 Crestron Electronics, Inc. All brand names, product names and trademarks are the property of their respective owners.
™ Switcher, providing one
