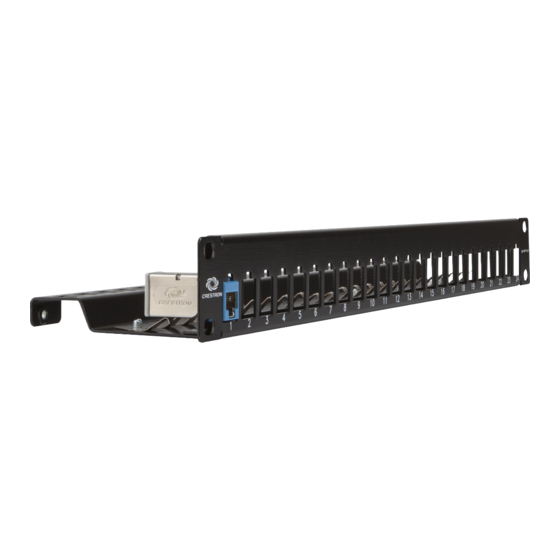

DigitalMedia™ 24-Port Keystone Patch Panel
DO
Install the Patch Panel
The Crestron
DM-RPP-K24 occupies 1 RU of rack space. Mount the patch panel into the rack,
®
and then attach the patch panel to the rack rails using the included mounting hardware.
Rack Mounting
DO
Connect the Patch Panel
Connect the patch panel as shown in the following illustrations.
Rear View
24 DM-CONN-ULTRA-RECP RJ45 Jacks
(2) Threaded Insert for Included Ground Lug
(Use Left or Right Insert)
From up to
DO
Check the Box
QTY PRODUCT
1
Accessory Kit Containing (1) Front Panel Label Strip
and Holder, (25) 4" Cable Ties, (1) Mounting Hardware
Kit, and (1) Grounding Hardware Kit
Not Included: Phillips Screwdriver, Small Flat-head Screwdriver
Side View
Installation of DM-CONN-ULTRA-RECP into Patch Panel
Removal of DM-CONN-ULTRA-RECP from Patch Panel
OR
Front View
From up to
24 DM-CBL-ULTRA-PC Patch Cables
(Connect to DM-CONN-ULTRA-RECP
RJ45 Jacks)
NOTE:
Use the included front panel label strip to label each port.
PART NUM.
2046518
