Crestron Zum ZUMMESH-NETBRIDGE Quick Start

ZUMMESH-NETBRIDGE
Zūm™ Wireless Network Bridge
The Crestron® ZUMMESH-NETBRIDGE adds enhanced integration
and setup capabilities to a Zūm space. It provides Zūm Net wireless
communication with a ZUM-FLOOR-HUB (not included) to enable
every space in the building to be centrally monitored, managed, and
controlled as part of a complete Zūm commercial lighting solution.
The ZUMMESH-NETBRIDGE also provides Bluetooth® connectivity to
allow room setup using a mobile device running the Zūm app.
NOTE: Only one ZUMMESH-NETBRIDGE can be installed per Zūm
space.
Check the Box
Item
ZUMMESH-NETBRIDGE
The Zūm App
The Zūm app is available for download from the App Store® app
in iTunes® software or from the Google Play™ store. The Zūm app
provides setup of a Zūm space using a mobile device.
Installation

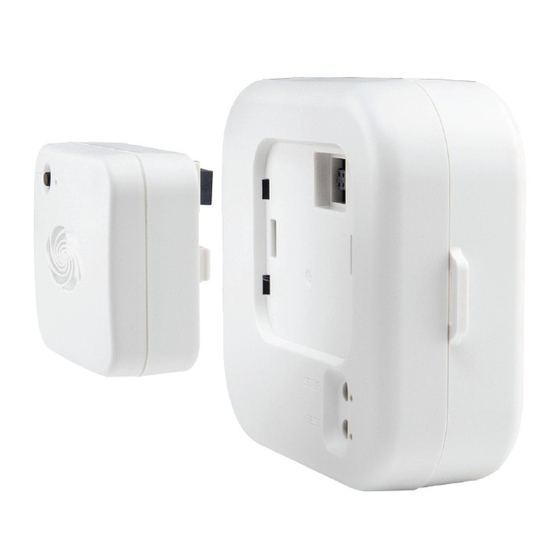

The ZUMMESH-NETBRIDGE snaps onto the expansion port of a
ZUMMESH-JBOX device (not included).
NOTES:
Observe the following points.
• Install and use this product in accordance with appropriate
electrical codes and regulations.
• This meets the requirements of UL® standard 2043 for
installation in an environmental air-handling (plenum) space.
•
Ensure that the ZUMMESH-NETBRIDGE is installed within
range of the ZUMNET-GATEWAY.

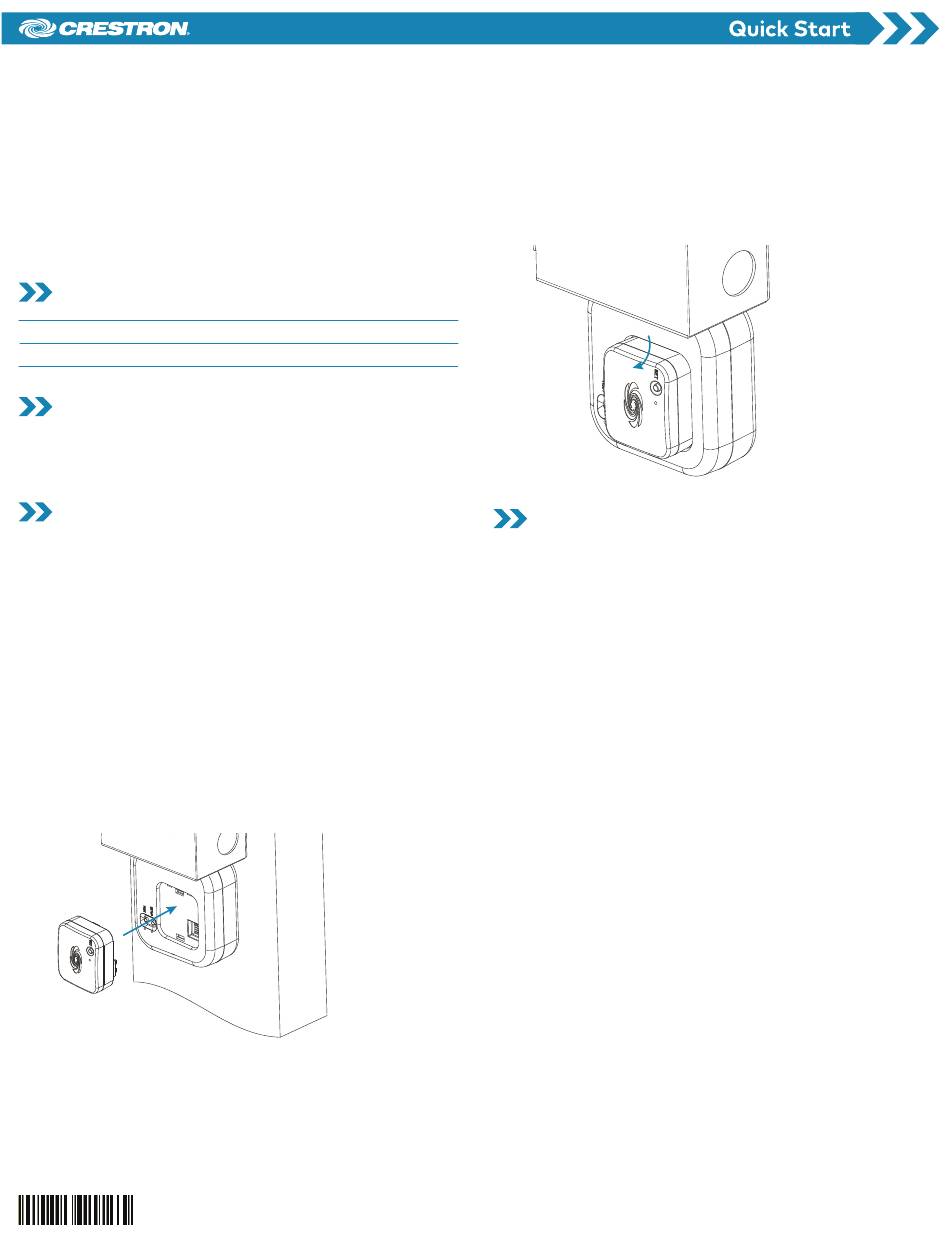

Install the ZUMMESH-NETBRIDGE
100-277 VAC power
1. Insert a flat-head screwdriver into the slot next to the cover and
rom breaker
pry up to remove the cover from the ZUMMESH-JBOX.
2. Align the ports on the ZUMMESH-NETBRIDGE and the
Neutral (white)
ZUMMESH-JBOX device, and then insert the network bridge
Hot (black)
into the ZUMMESH-JBOX device. The network bridge snaps into
place.
Remove the ZUMMESH-NETBRIDGE
1.
Place your thumb on the side of the ZUMMESH-NETBRIDGE
that is nearest the J-box.
2. Press the ZUMMESH-NETBRIDGE away from the J-box. While
pressing on the side of the ZUMMESH-NETBRIDGE, slightly
lift your thumb up. The ZUMMESH-NETBRIDGE should easily
detach from the J-box device.
Qty
1
Join a Zūm Net Network
The ZUMMESH-NETBRIDGE communicates with a
ZUMNET-GATEWAY using Zūm Net wireless communications.
Join a Zūm Net Network:
1. Press the ACQUIRE button on the ZUMNET-GATEWAY to place
the gateway into Acquire mode.
2. Press the SET button on the ZUMMESH-NETBRIDGE four
times. DO NOT release the button after the fourth press. Hold
the SET button until the LED flashes once (up to 10 seconds)
and then release the button. The SET LED slowly flashes to
indicate that it is searching for a network to join.
•
The SET LED lights for 5 seconds when the network bridge
successfully joins the gateway.
• The SET LED flashes quickly to indicate that the network
bridge failed to join the gateway. Press the SET button to
acknowledge the failure and then repeat this procedure.
3. Press the ACQUIRE button on the ZUMNET-GATEWAY to exit
Acquire mode.
Leave a Zūm Net Network:
1. Verify that the ZUMMESH-NETBRIDGE is not within range of a
ZUMNET-GATEWAY that is in Acquire mode.
2. Press the SET button on the ZUMMESH-NETBRIDGE four
times. DO NOT release the button after the fourth press. Hold
the SET button until the LED flashes once (up to 10 seconds)
and then release the button. The LED flashes slowly.
3. The SET LED then flashes quickly to indicate that the device has
left the Zūm Net wireless network.
4. Press the SET button to confirm that the device has left the
ZUMNET-GATEWAY's wireless network
