- Page 1 Crestron PWE-4803RU PoE Injector Installation Guide...
-
Page 2: Table Of Contents
Crestron PWE-4803RU Contents PoE Injector: PWE-4803RU Introduction ... 1 Specifications ... 2 Physical Description... 3 Industry Compliance ... 5 Setup ... 6 Contact Information and Updates ... 7 Further Inquiries ... 7 Future Updates ... 7 Return and Warranty Policies ... 8 Merchandise Returns / Repair Service ... -
Page 3: Poe Injector: Pwe-4803Ru
Crestron PWE-4803RU PoE Injector: PWE-4803RU Introduction The PWE-4803RU is a PoE (Power over Ethernet) injector that meets IEEE 802.3af requirements. The PWE-4803RU is designed to power Crestron 802.3af powered devices such as the CEN-WAP-ABG-1G wireless access point. The PWE-4803RU can also power third-party 802.3af powered devices. -
Page 4: Specifications
PoE Injector Specifications Crestron suggests that only this PoE injector be used with designated 802.3af-compliant Crestron products. The specifications for the PWE-4803RU are as follows. PWE-4803RU Specifications SPECIFICATION Output Rating Power Requirements Environmental Temperature Humidity Heat Dissipation Enclosure Dimensions Height Width Depth Weight... -
Page 5: Physical Description

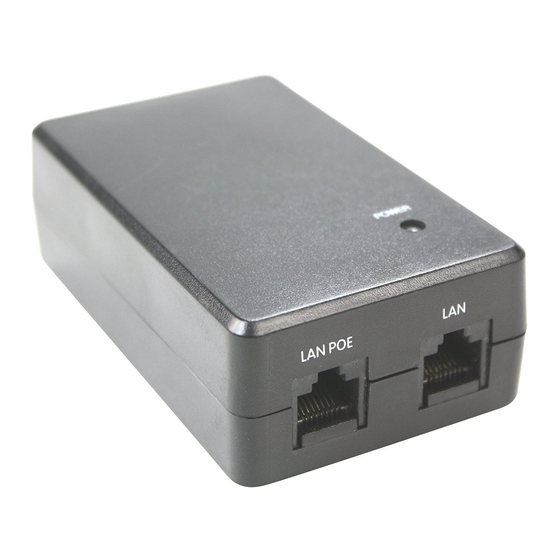

Crestron PWE-4803RU Physical Description This section provides information about the connections and the indicator available on your PWE-4803RU. PWE-4803RU Physical View (Front and Back) Connectors & Indicators CONNECTORS & INDICATORS POWER LED (Continued on following page) Installation Guide – DOC. 6712A PoE Injector DESCRIPTION (1) Tri-Color LED that illuminates... - Page 6 PoE Injector Connectors & Indicators (Continued) CONNECTORS & INDICATORS 100 – 250 VAC, * Due to the inherent voltage drop over copper wire, a maximum of 12.9 W is guaranteed to be received by the PoE powered device over a cable run length of 328 feet (100 meters).
-
Page 7: Industry Compliance
Crestron PWE-4803RU LAN PoE and LAN Connector Pin Assignments NOTE: In the listing of LAN PoE and LAN pins above, arrows denote internal pin connections. Industry Compliance This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc. As of the date of manufacture, the PWE-4803RU has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. -
Page 8: Setup
PoE Injector Setup Complete the following steps to properly set up and connect the PoE injector. Refer to the illustration at the conclusion of the procedure. 1. Attach the supplied AC power cord to the IEC 320 connector on the PoE injector. 2. -
Page 9: Contact Information And Updates
Crestron PWE-4803RU Contact Information and Updates Further Inquiries If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876]. You can also log onto the online help section of the Crestron website (www.crestron.com/onlinehelp) to ask questions about Crestron products. -
Page 10: Return And Warranty Policies
PoE Injector Return and Warranty Policies Merchandise Returns / Repair Service 1. No merchandise may be returned for credit, exchange or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number. - Page 11 Crestron PWE-4803RU PoE Injector This page is intentionally left blank. PoE Injector: PWE-4803RU • 9 Installation Guide – DOC. 6712A...
- Page 12 Crestron Electronics, Inc. Installation Guide – DOC. 6712A 15 Volvo Drive Rockleigh, NJ 07647 (2021742) Tel: 888.CRESTRON 08.08 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
