Related Manuals for Gold Medal 2257-00-010
Summary of Contents for Gold Medal 2257-00-010

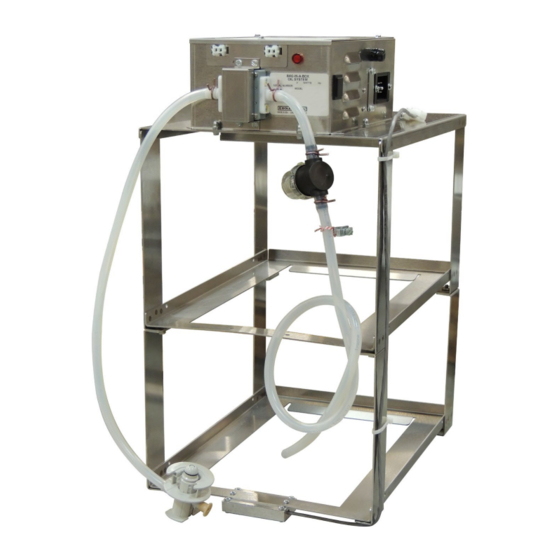

- Page 1 Instruction Manual B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2021 Gold Medal Products Co. Part No. 110118...
-
Page 2: Table Of Contents
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Table of Contents SAFETY PRECAUTIONS ........................... 3 Inspection of Shipment ............................5 INSTALLATION INSTRUCTIONS ........................5 Manual ..................................5 Model Description ..............................5 Items Included with Unit ............................ 5 Setup ................................... 5 Electrical Requirements ............................. -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Inspection Of Shipment
Unit holds a maximum of (2) 35 pound boxes of oil, and has a heater/blower, and heated line capability (Heated Line Kit, Item No. 2357S, is sold separately). 2257-00-010: B.I.B. Unit with Load Cell Sensor (for detecting the oil level), no timer 2257-01-010: Export B.I.B. Unit with Load Cell Sensor (for detecting the oil level), no timer Items Included with Unit •... -
Page 6: Electrical Requirements
008_051514 This machine is intended to be used with a Gold Medal popcorn popper with a proper power cord to connect to the pump. A certified electrician must furnish sufficient power for proper machine operation (reference unit Data Plate for model specific Volts AC, Hertz, and Wattage requirements). -
Page 7: Unit Installation
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Unit Installation The unit needs to be placed in a cabinet enclosed on all sides in order for the heater to properly maintain product temperature. Access will be required to the front of this area allowing sufficient clearance to clean and maintain the pump and to add or remove boxes of oil. -
Page 8: Setting The Oil Level Indicator
(reference instructions below). This oil system is designed to be used with pre-melted oil. Gold Medal’s Backroom Warmer, Item No. 2262 (2262EX), may be purchased for pre-heating the oil. If using coconut oil, Gold Medal’s Heated Line Kit, Item No. - Page 9 B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 3. Use a small blunt object (e.g. paperclip) and press the EMPTY button on the Oil Level Indicator (see image shown above). 4. Load a second full box of oil in the unit.
-
Page 10: Oil Installation - Attach Universal Bag Connector
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Oil Installation - Attach Universal Bag Connector 1. Load two boxes of pre-heated oil in unit. Use a maximum of (2) 35 pound boxes of oil. Mount box so the bag nozzle is located towards the bottom of the box to permit a free flow of oil from the bag. -
Page 11: Controls And Their Functions
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 OPERATING INSTRUCTIONS Controls and Their Functions This unit is controlled using the Oil System Master Switch (powers the dispenser), and the Oil Dispense Switch (dispenses oil) located on the control panel of the popper. (Reference the Controls section in the Popper’s Manual.) -
Page 12: Operating The Oil Dispense Unit
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Operating the Oil Dispense Unit Follow the steps below to turn on the oil dispense unit: 1. Turn Oil System Master Switch ON (switch located on Control Panel of the Popper). -
Page 13: Program The E-Z Set Timer
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Program the E-Z Set Timer This unit is used with a Popper which has an Electronic Temperature Control with a programmable timer to set the amount of oil dispensed for popping popcorn. -
Page 14: Exterior Surface Cleaning
Measure Cup (for priming unit) 1. Make sure BIB and popper kettle have cooled completely before attempting to clean. 2. Fill a clean, empty pail half-full with hot water and Gold Medal Chlor-Tech Sanitizer (reference instructions on sanitizer container for appropriate amount). - Page 15 B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Step 1: Step 2: Step 3: Plunger OUT in open position. Push Plunger IN to lock onto bracket. Plunger ENGAGED on pin. Cleaning Slide Connector Bracket onto Bracket 4. Place hose with cleaning bracket into the pail of sanitizing solution.
-
Page 16: Troubleshooting
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Troubleshooting General unit troubleshooting issues are listed below, also reference the Troubleshooting section in the popper manual. A. Oil System Master Switch A. Check to make sure the Oil System Master... -
Page 17: Maintenance Instructions
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 18: Installation Instructions
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Optional Heated Line Kit Model 2457S Heated Line Kit (optional, sold separate from oil dispense unit) is used to keep the oil in the lines from the pump at the proper operating consistency. -
Page 19: Heated Line Kit Receptacle Replacement
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Heated Line Kit Receptacle Replacement Receptacle replacement must be performed by qualified service personnel. Turn OFF the Oil System Master Switch (located either on the popper or on the oil unit), unplug the oil unit from the popper (or its power source), and allow unit to cool before attempting to replace receptacle(s). -
Page 20: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 21: Cabinet Exterior / Load Sensor - Parts Breakdown
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Cabinet Exterior / Load Sensor – Parts Breakdown Overall view 2257-00-010 *White plastic inlet/outlet can be purchased separately from the pump (sold individually). 9, 10 6, 7 Control Box Top View... - Page 22 B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Cabinet Exterior / Load Sensor – Parts List Part Number Item Part Description CONTROL BOX 39148 39148 2257-00-010 2257-01-010 ROCKER SWITCH HOLE PLUG 42743 42743 CONTROL BOX COVER 79377 79377 8-32 X 3/8 SLT.
-
Page 23: Tubing And Connectors - Parts Breakdown
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Tubing and Connectors – Parts Breakdown Tubing and Connectors (included with unit) 2457S Complete Heated Line Kit option is (contains both lines shown available for purchase with Heated Rope Wire... -
Page 24: Control Box Interior - Parts Breakdown
Model No. 2257-00-010 and 2257-01-010 Control Box Interior – Parts Breakdown 2257-00-010 5, 6, 7 For Pump parts breakdown, see Cabinet Exterior section. For Load Sensor parts breakdown, see Cabinet Exterior section. 15, 16 2257-00-010 shown for general parts reference. gmpopcorn.com Page 24... -
Page 25: Accessories
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Control Box Interior – Parts List Part Number Item Part Description TERMINAL BLOCK 45098 45098 2257-00-010 2257-01-010 EXHAUST BLOWER 48018 48037 250 WATT HEAT ELEMENT 38824 38824EX EXHAUST BLOWER PLUG AND CORD... -
Page 26: Wiring Diagram
B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Wiring Diagram Model No. 2257-00-010 gmpopcorn.com Page 26... - Page 27 B.I.B. Oil with Load Cell Model No. 2257-00-010 and 2257-01-010 Model No. 2257-01-010 gmpopcorn.com Page 27...
-
Page 28: Warranty
© 2021 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
